Datasheet 40 LHE (Vishay) - 6
| 制造商 | Vishay |
| 描述 | Linear Position Sensor in Hall Effect Technology (0 mm to 40 mm Max.) 40 LHE |
| 页数 / 页 | 7 / 6 — 40 LHE. WITH SPRING RETURN. WIRE |
| 文件格式/大小 | PDF / 151 Kb |
| 文件语言 | 英语 |
40 LHE. WITH SPRING RETURN. WIRE
该数据表的模型线
文件文字版本

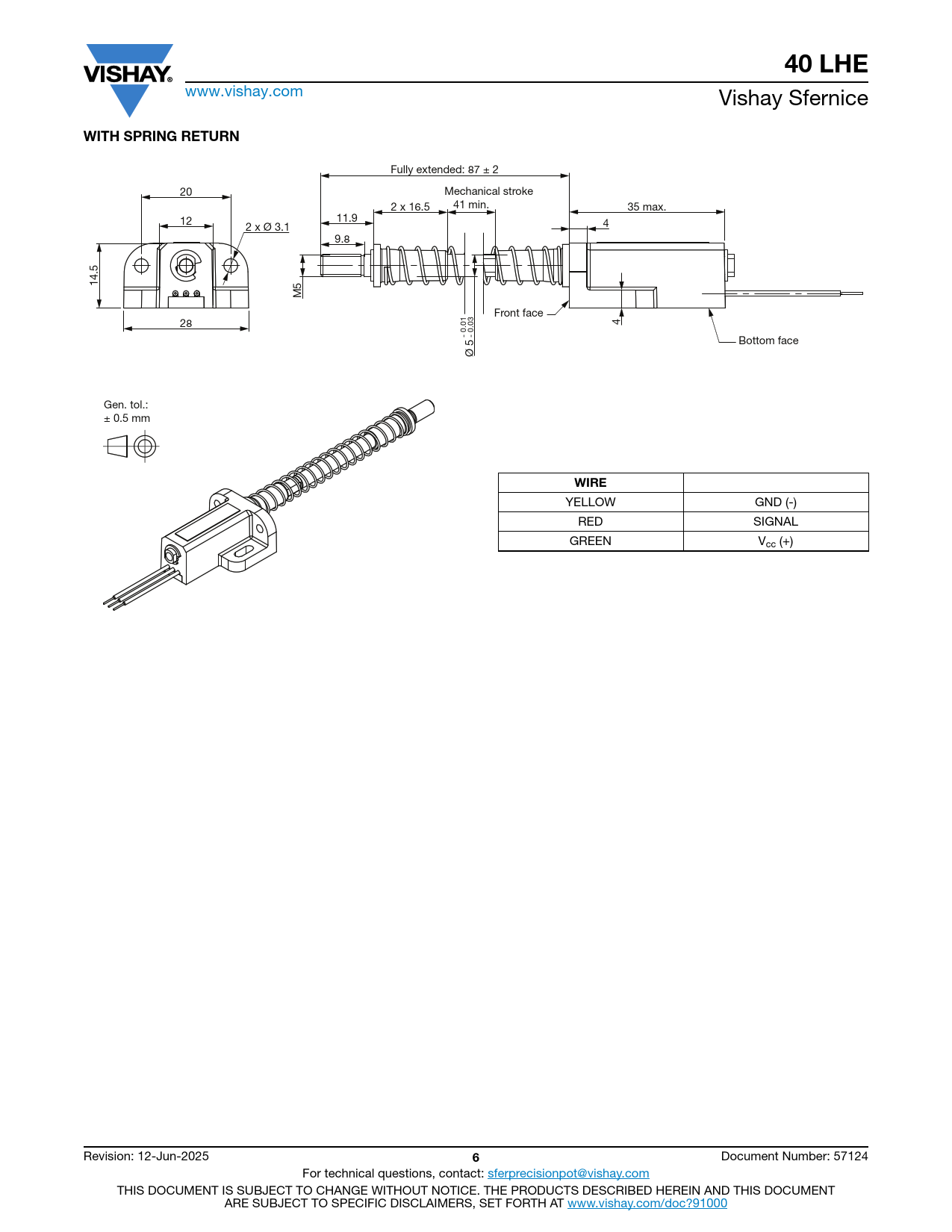

40 LHE
www.vishay.com Vishay Sfernice
WITH SPRING RETURN
Fully extended: 87 ± 2 20 Mechanical stroke 41 min. 2 x 16.5 35 max. 12 11.9 2 x Ø 3.1 4 9.8 14.5 M5 Front face 28 4 - 0.01 - 0.03 Bottom face Ø 5 Gen. tol.: ± 0.5 mm
WIRE
YELLOW GND (-) RED SIGNAL GREEN Vcc (+) Revision: 12-Jun-2025
6
Document Number: 57124 For technical questions, contact: sferprecisionpot@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
