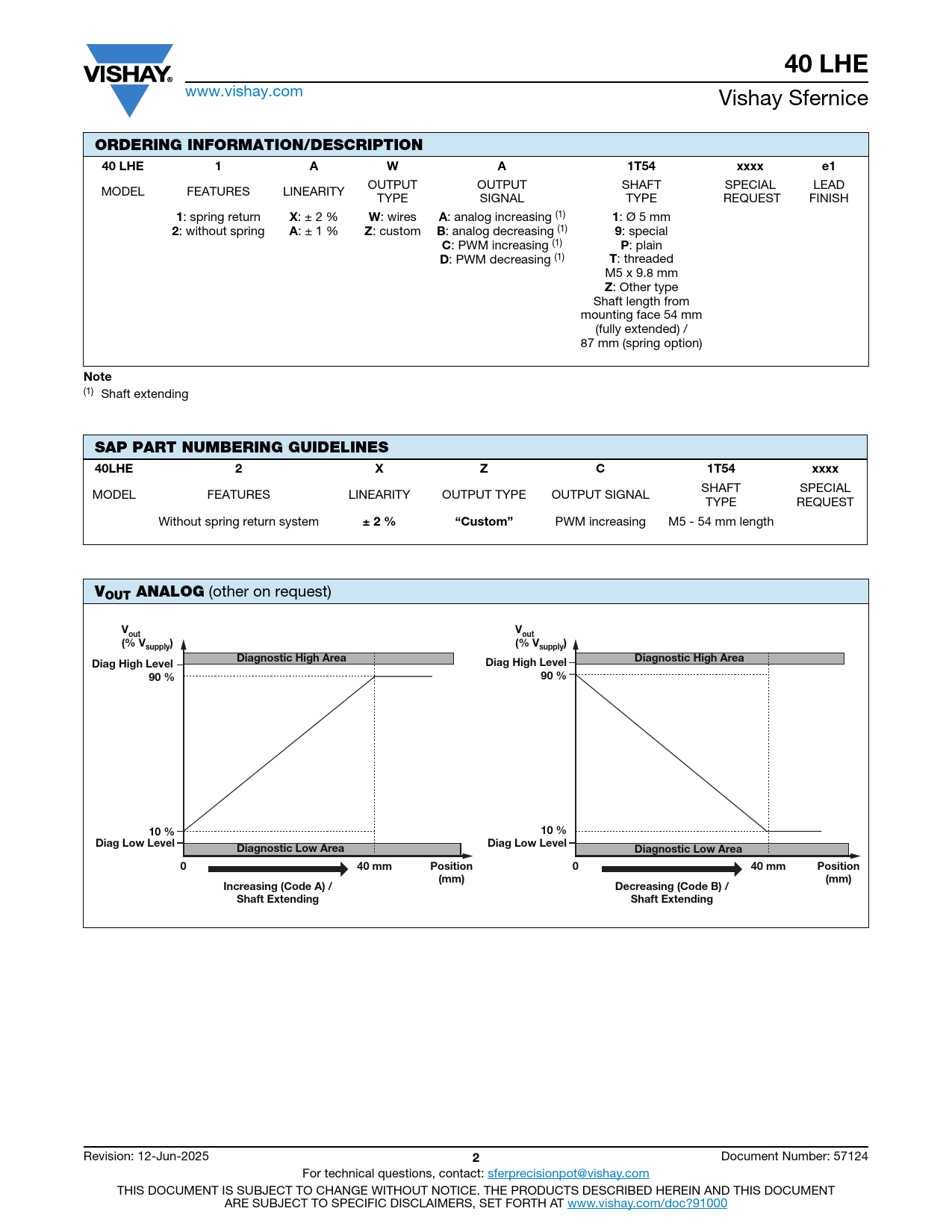

40 LHE
www.vishay.com Vishay Sfernice
ORDERING INFORMATION/DESCRIPTION 40 LHE 1 A W A 1T54 xxxx e1
OUTPUT OUTPUT SHAFT SPECIAL LEAD MODEL FEATURES LINEARITY TYPE SIGNAL TYPE REQUEST FINISH
1
: spring return
X
: ± 2 %
W
: wires
A
: analog increasing (1)
1
: Ø 5 mm
2
: without spring
A
: ± 1 %
Z
: custom
B
: analog decreasing (1)
9
: special
C
: PWM increasing (1)
P
: plain
D
: PWM decreasing (1)
T
: threaded M5 x 9.8 mm
Z
: Other type Shaft length from mounting face 54 mm (fully extended) / 87 mm (spring option)
Note
(1) Shaft extending
SAP PART NUMBERING GUIDELINES 40LHE 2 X Z C 1T54 xxxx
SHAFT SPECIAL MODEL FEATURES LINEARITY OUTPUT TYPE OUTPUT SIGNAL TYPE REQUEST Without spring return system
± 2 % “Custom”
PWM increasing M5 - 54 mm length
VOUT ANALOG
(other on request)
V V out out (% V ) (% V ) supply supply Diagnostic High Area Diagnostic High Area Diag High Level Diag High Level 90 % 90 % 10 % 10 % Diag Low Level Diag Low Level Diagnostic Low Area Diagnostic Low Area 0 40 mm Position 0 40 mm Position (mm) (mm) Increasing (Code A) / Decreasing (Code B) / Shaft Extending Shaft Extending
