Datasheet 40 LHE (Vishay) - 5
| 制造商 | Vishay |
| 描述 | Linear Position Sensor in Hall Effect Technology (0 mm to 40 mm Max.) 40 LHE |
| 页数 / 页 | 7 / 5 — 40 LHE. DIMENSIONS. WITHOUT SPRING RETURN. WIRE |
| 文件格式/大小 | PDF / 151 Kb |
| 文件语言 | 英语 |

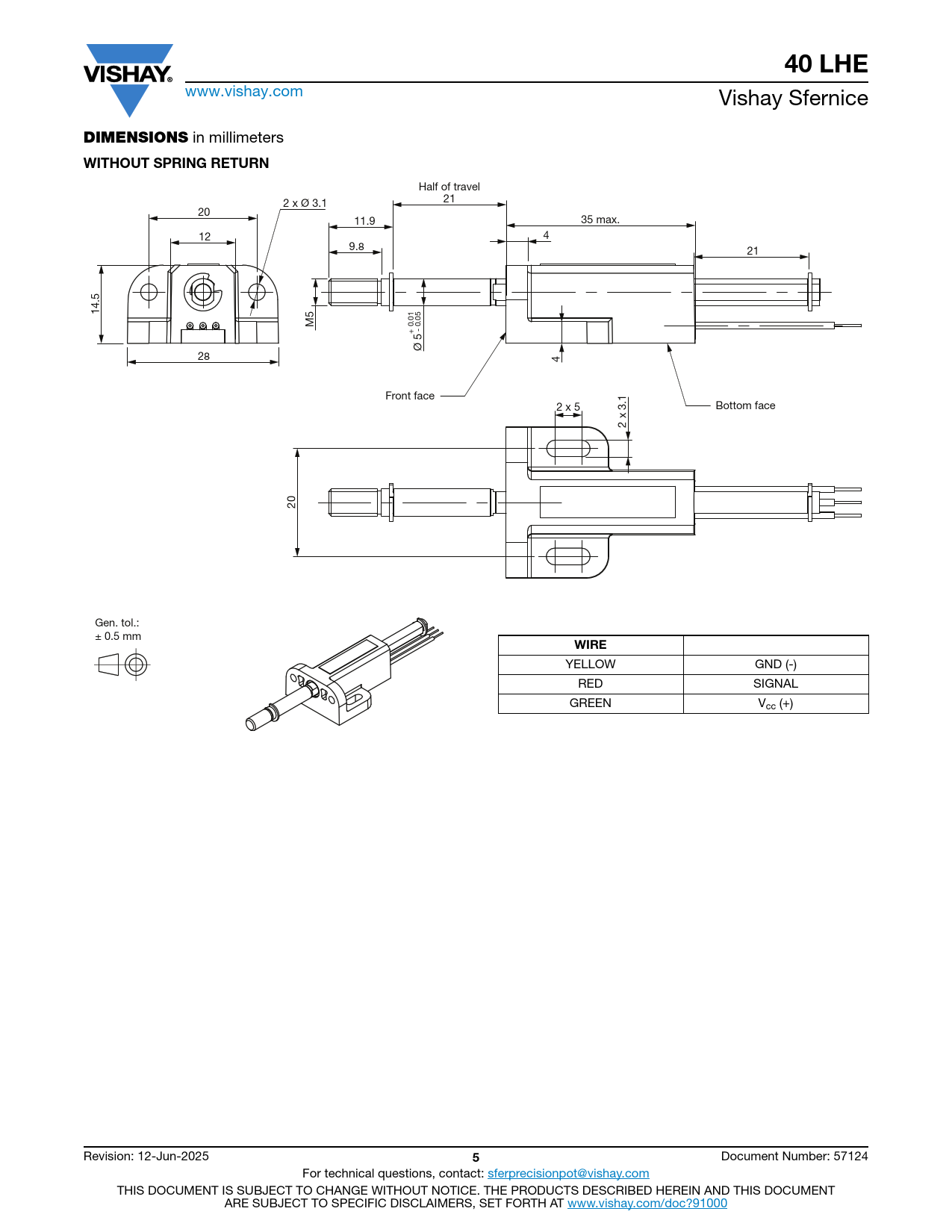

40 LHE. DIMENSIONS. WITHOUT SPRING RETURN. WIRE
该数据表的模型线
文件文字版本
40 LHE
www.vishay.com Vishay Sfernice
DIMENSIONS
in millimeters
WITHOUT SPRING RETURN
Half of travel 21 2 x Ø 3.1 20 11.9 35 max. 12 4 9.8 21 14.5 M5 + 0.01 - 0.05 Ø 5 28 4 Front face 2 x 5 Bottom face 2 x 3.1 20 Gen. tol.: ± 0.5 mm
WIRE
YELLOW GND (-) RED SIGNAL GREEN Vcc (+) Revision: 12-Jun-2025
5
