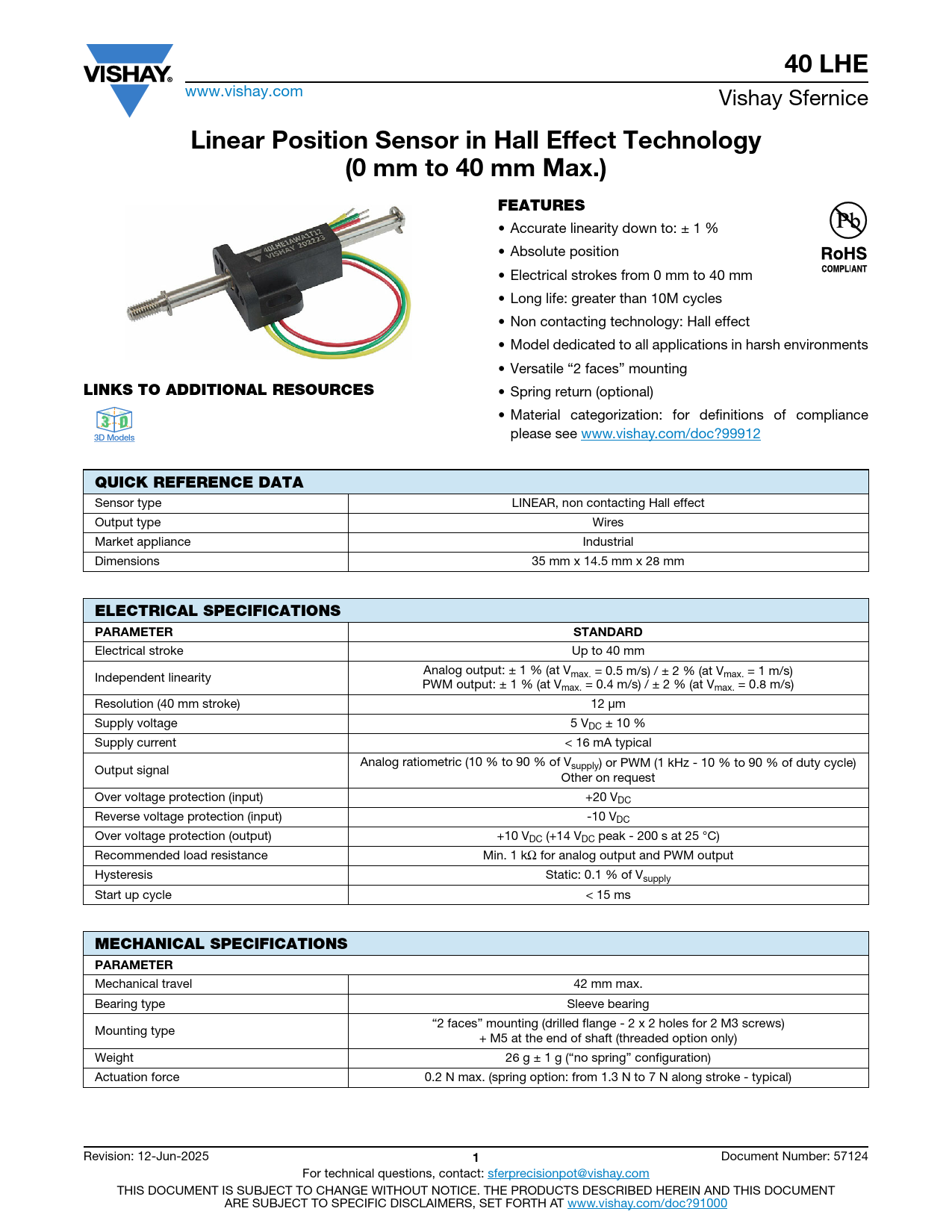

40 LHE
www.vishay.com Vishay Sfernice
Linear Position Sensor in Hall Effect Technology (0 mm to 40 mm Max.) FEATURES
• Accurate linearity down to: ± 1 % • Absolute position • Electrical strokes from 0 mm to 40 mm • Long life: greater than 10M cycles • Non contacting technology: Hall effect • Model dedicated to all applications in harsh environments • Versatile “2 faces” mounting
LINKS TO ADDITIONAL RESOURCES
• Spring return (optional) • Material categorization: for definitions of compliance
D 3 3 D
please see www.vishay.com/doc?99912
3D Models QUICK REFERENCE DATA
Sensor type LINEAR, non contacting Hall effect Output type Wires Market appliance Industrial Dimensions 35 mm x 14.5 mm x 28 mm
ELECTRICAL SPECIFICATIONS PARAMETER STANDARD
Electrical stroke Up to 40 mm Analog output: ± 1 % (at V Independent linearity max. = 0.5 m/s) / ± 2 % (at Vmax. = 1 m/s) PWM output: ± 1 % (at Vmax. = 0.4 m/s) / ± 2 % (at Vmax. = 0.8 m/s) Resolution (40 mm stroke) 12 μm Supply voltage 5 VDC ± 10 % Supply current < 16 mA typical Analog ratiometric (10 % to 90 % of V Output signal supply) or PWM (1 kHz - 10 % to 90 % of duty cycle) Other on request Over voltage protection (input) +20 VDC Reverse voltage protection (input) -10 VDC Over voltage protection (output) +10 VDC (+14 VDC peak - 200 s at 25 °C) Recommended load resistance Min. 1 kΩ for analog output and PWM output Hysteresis Static: 0.1 % of Vsupply Start up cycle < 15 ms
MECHANICAL SPECIFICATIONS PARAMETER
Mechanical travel 42 mm max. Bearing type Sleeve bearing “2 faces” mounting (drilled flange - 2 x 2 holes for 2 M3 screws) Mounting type + M5 at the end of shaft (threaded option only) Weight 26 g ± 1 g (“no spring” configuration) Actuation force 0.2 N max. (spring option: from 1.3 N to 7 N along stroke - typical) Revision: 12-Jun-2025
1
Document Number: 57124 For technical questions, contact: sferprecisionpot@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
