Datasheet 40 LHE (Vishay) - 3
| 制造商 | Vishay |
| 描述 | Linear Position Sensor in Hall Effect Technology (0 mm to 40 mm Max.) 40 LHE |
| 页数 / 页 | 7 / 3 — 40 LHE. PWM OUTPUT. Duty Cycle. (%). Diagnostic High Area. Diag High … |
| 文件格式/大小 | PDF / 151 Kb |
| 文件语言 | 英语 |

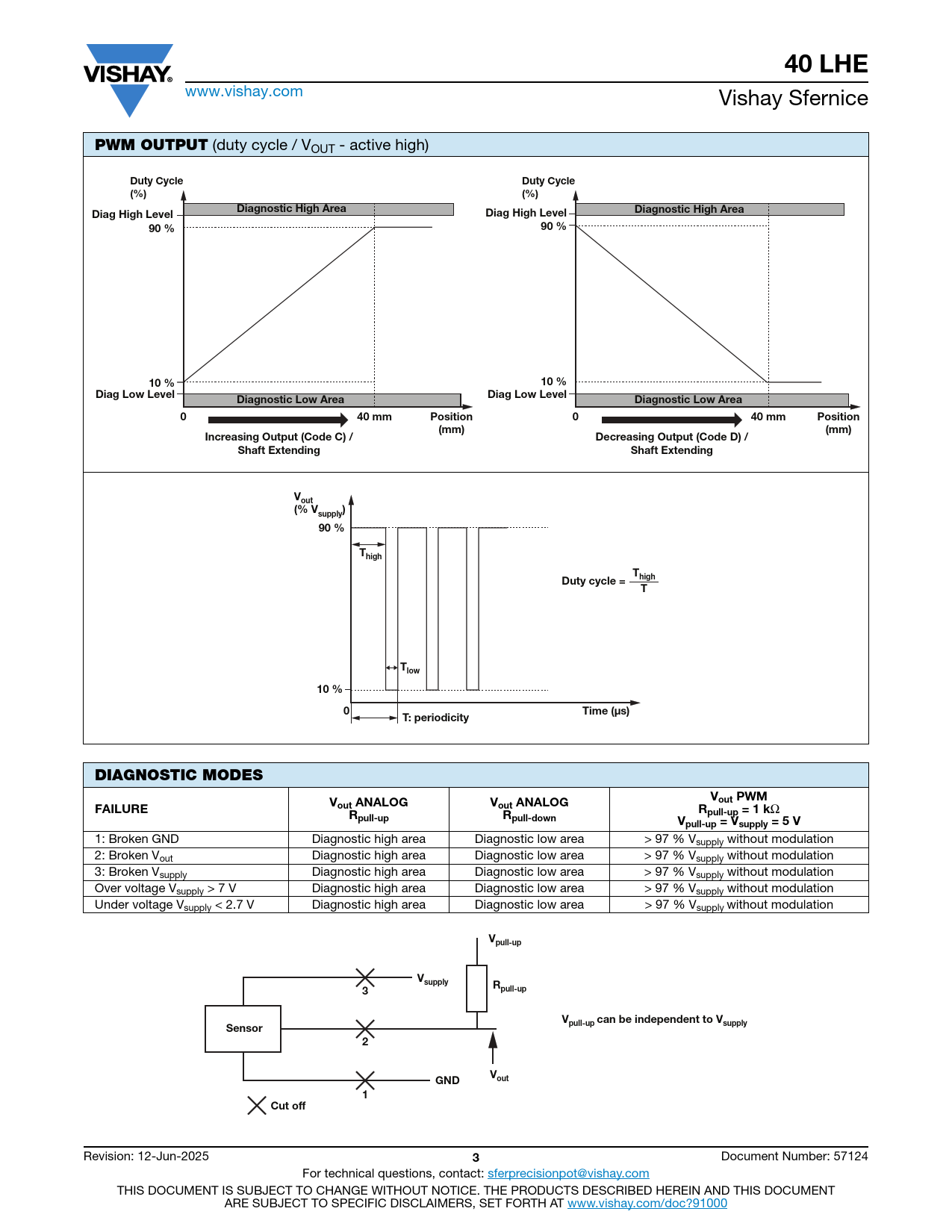

40 LHE. PWM OUTPUT. Duty Cycle. (%). Diagnostic High Area. Diag High Level. 90 %. 10 %. Diag Low Level. Diagnostic Low Area. 40 mm. Position
该数据表的模型线
文件文字版本
40 LHE
www.vishay.com Vishay Sfernice
PWM OUTPUT
(duty cycle / VOUT - active high)
Duty Cycle Duty Cycle (%) (%) Diagnostic High Area Diagnostic High Area Diag High Level Diag High Level 90 % 90 % 10 % 10 % Diag Low Level Diag Low Level Diagnostic Low Area Diagnostic Low Area 0 40 mm Position 0 40 mm Position (mm) (mm) Increasing Output (Code C) / Decreasing Output (Code D) / Shaft Extending Shaft Extending Vout (% V ) supply 90 % Thigh T Duty cycle = high T Tlow 10 % 0 Time (μs) T: periodicity DIAGNOSTIC MODES V V V out PWM FAILURE out ANALOG out ANALOG R R pull-up = 1 k
Ω
pull-up Rpull-down Vpull-up = Vsupply = 5 V
1: Broken GND Diagnostic high area Diagnostic low area > 97 % Vsupply without modulation 2: Broken Vout Diagnostic high area Diagnostic low area > 97 % Vsupply without modulation 3: Broken Vsupply Diagnostic high area Diagnostic low area > 97 % Vsupply without modulation Over voltage Vsupply > 7 V Diagnostic high area Diagnostic low area > 97 % Vsupply without modulation Under voltage Vsupply < 2.7 V Diagnostic high area Diagnostic low area > 97 % Vsupply without modulation
Vpull-up Vsupply Rpull-up 3 V can be independent to V pull-up supply Sensor 2 V GND out 1 Cut off
