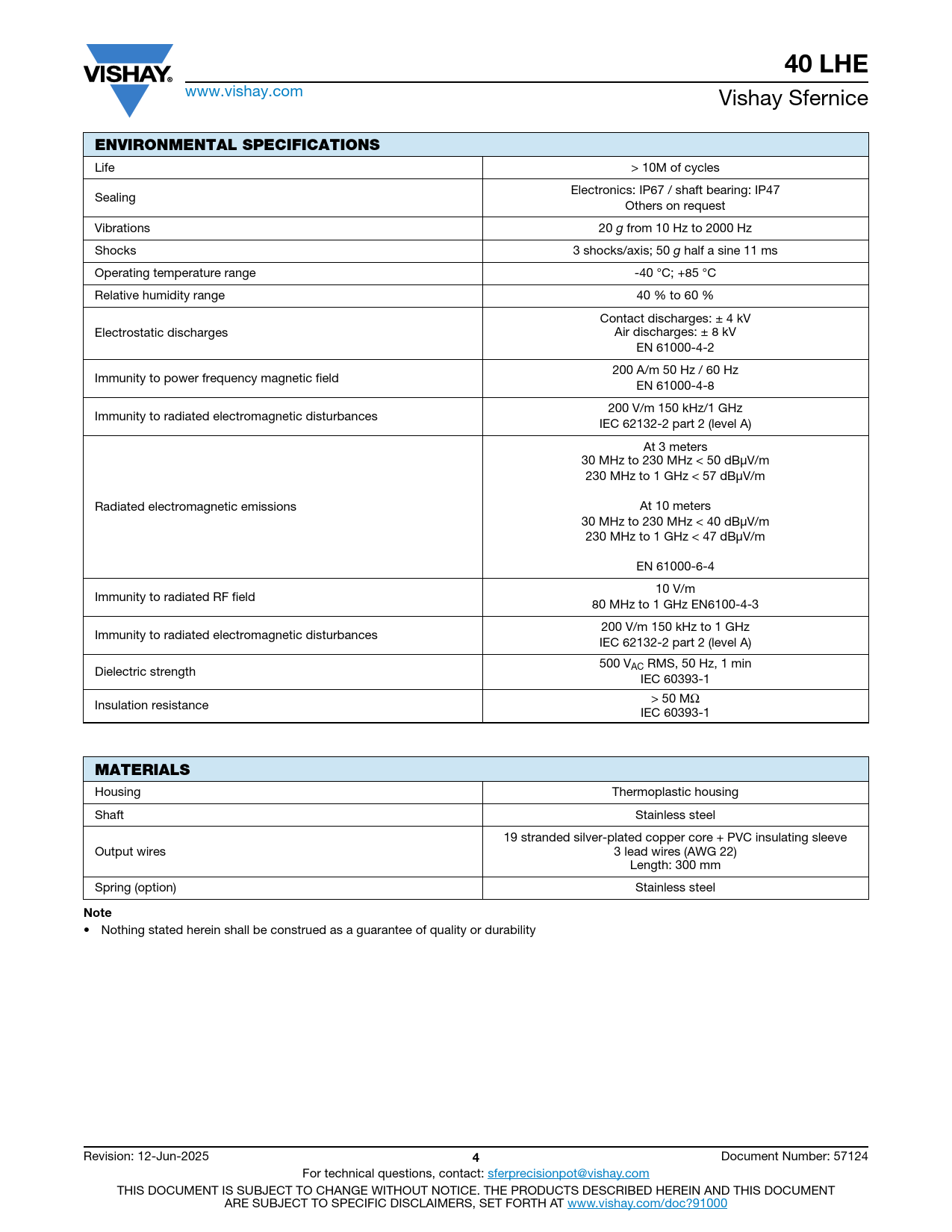

40 LHE
www.vishay.com Vishay Sfernice
ENVIRONMENTAL SPECIFICATIONS
Life > 10M of cycles Electronics: IP67 / shaft bearing: IP47 Sealing Others on request Vibrations 20 g from 10 Hz to 2000 Hz Shocks 3 shocks/axis; 50 g half a sine 11 ms Operating temperature range -40 °C; +85 °C Relative humidity range 40 % to 60 % Contact discharges: ± 4 kV Electrostatic discharges Air discharges: ± 8 kV EN 61000-4-2 200 A/m 50 Hz / 60 Hz Immunity to power frequency magnetic field EN 61000-4-8 200 V/m 150 kHz/1 GHz Immunity to radiated electromagnetic disturbances IEC 62132-2 part 2 (level A) At 3 meters 30 MHz to 230 MHz < 50 dBμV/m 230 MHz to 1 GHz < 57 dBμV/m Radiated electromagnetic emissions At 10 meters 30 MHz to 230 MHz < 40 dBμV/m 230 MHz to 1 GHz < 47 dBμV/m EN 61000-6-4 10 V/m Immunity to radiated RF field 80 MHz to 1 GHz EN6100-4-3 200 V/m 150 kHz to 1 GHz Immunity to radiated electromagnetic disturbances IEC 62132-2 part 2 (level A) 500 V Dielectric strength AC RMS, 50 Hz, 1 min IEC 60393-1 > 50 MΩ Insulation resistance IEC 60393-1
MATERIALS
Housing Thermoplastic housing Shaft Stainless steel 19 stranded silver-plated copper core + PVC insulating sleeve Output wires 3 lead wires (AWG 22) Length: 300 mm Spring (option) Stainless steel
Note
• Nothing stated herein shall be construed as a guarantee of quality or durability Revision: 12-Jun-2025
4
Document Number: 57124 For technical questions, contact: sferprecisionpot@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
