Datasheet AP3917D (Diodes) - 3
| 制造商 | Diodes |
| 描述 | 700V Non-isolated regulator up to 370mA output current in SO-7 package |
| 页数 / 页 | 12 / 3 — AP3917D. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. … |
| 文件格式/大小 | PDF / 593 Kb |
| 文件语言 | 英语 |

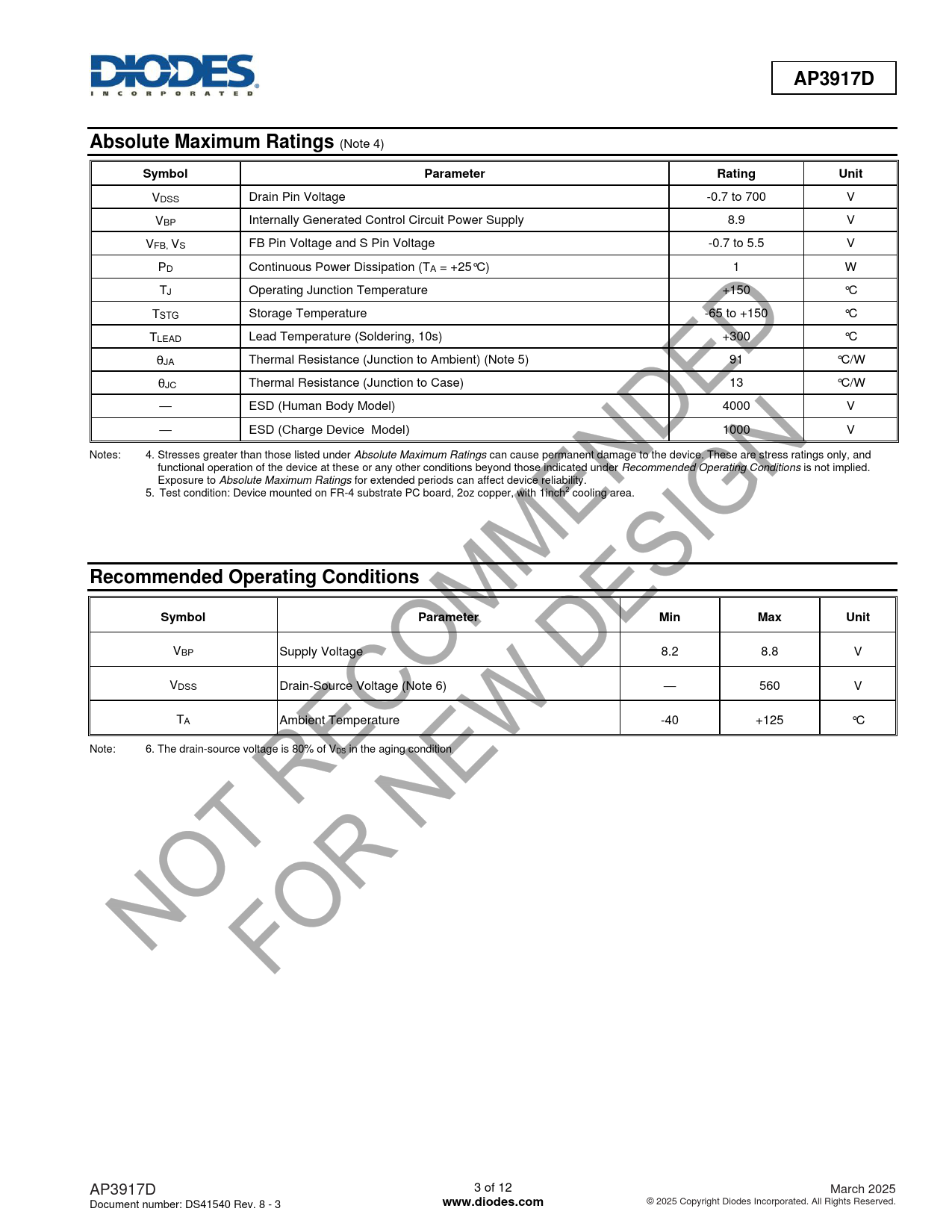

AP3917D. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. Recommended Operating Conditions. Min. Max. www.diodes.com
该数据表的模型线
文件文字版本
AP3917D Absolute Maximum Ratings
(Note 4)
Symbol Parameter Rating Unit
VDSS Drain Pin Voltage -0.7 to 700 V VBP Internally Generated Control Circuit Power Supply 8.9 V VFB, VS FB Pin Voltage and S Pin Voltage -0.7 to 5.5 V PD Continuous Power Dissipation (TA = +25°C) 1 W TJ Operating Junction Temperature +150 °C TSTG Storage Temperature -65 to +150 °C TLEAD Lead Temperature (Soldering, 10s) +300 °C θJA Thermal Resistance (Junction to Ambient) (Note 5) 91 °C/W θJC Thermal Resistance (Junction to Case) 13 °C/W — ESD (Human Body Model) 4000 V — ESD (Charge Device Model) 1000 V Notes: 4. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to Absolute Maximum Ratings for extended periods can affect device reliability. 5. Test condition: Device mounted on FR-4 substrate PC board, 2oz copper, with 1inch2 cooling area.
Recommended Operating Conditions Symbol Parameter Min Max Unit
VBP Supply Voltage 8.2 8.8 V VDSS Drain-Source Voltage (Note 6) — 560 V TA Ambient Temperature -40 +125 °C Note: 6. The drain-source voltage is 80% of VDS in the aging condition. AP3917D 3 of 12 March 2025 Document number: DS41540 Rev. 8 - 3
