THE AP3917D IS NOT RECOMMENDED FOR NEW DESIGNS. PLEASE USE THE AP3927D. AP3917D
该数据表的模型线
文件文字版本

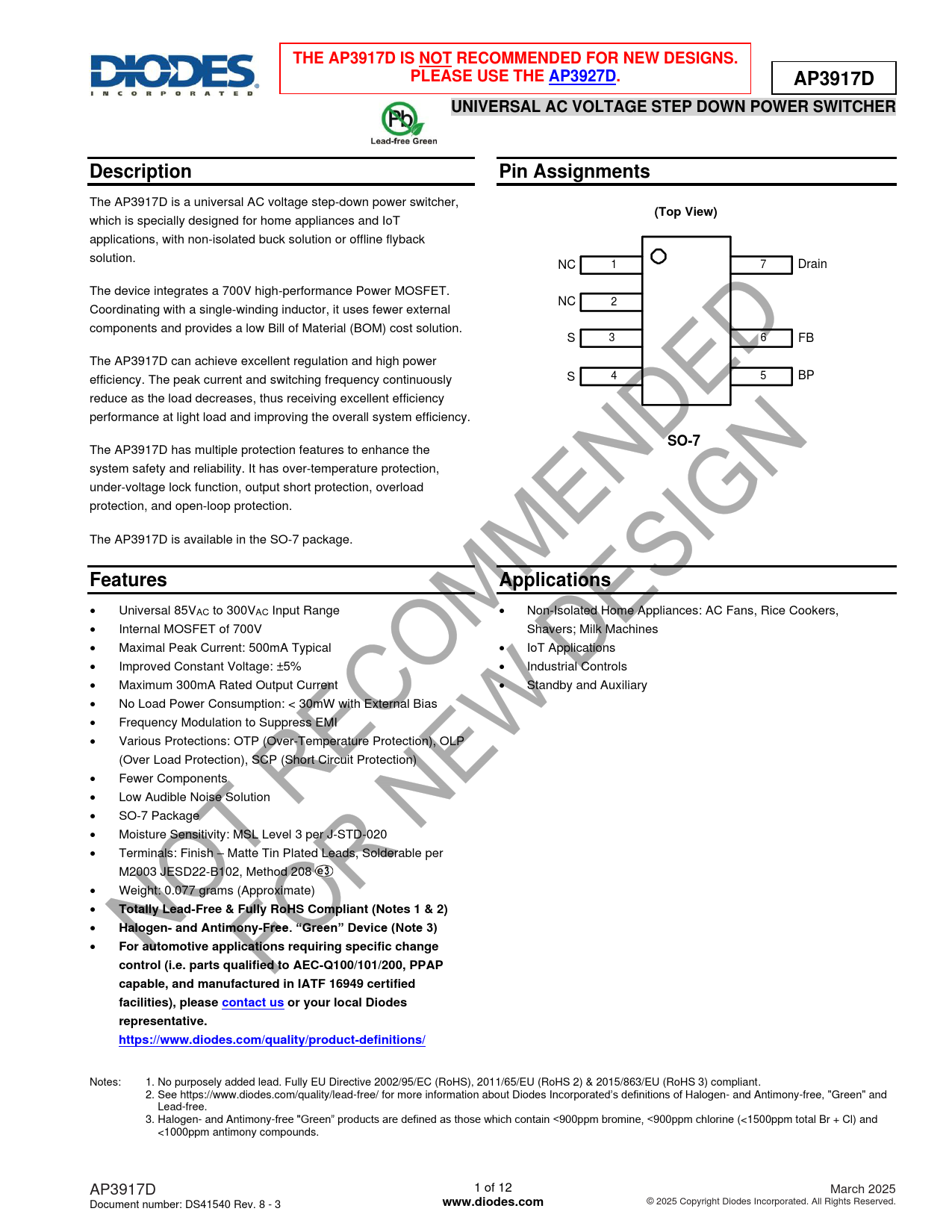

THE AP3917D IS NOT RECOMMENDED FOR NEW DESIGNS. PLEASE USE THE AP3927D. AP3917D UNIVERSAL AC VOLTAGE STEP DOWN POWER SWITCHER Description Pin Assignments
The AP3917D is a universal AC voltage step-down power switcher,
(Top View)
which is specially designed for home appliances and IoT applications, with non-isolated buck solution or offline flyback solution. NC 1 7 Drain The device integrates a 700V high-performance Power MOSFET. NC 2 Coordinating with a single-winding inductor, it uses fewer external components and provides a low Bill of Material (BOM) cost solution. S 3 6 FB The AP3917D can achieve excellent regulation and high power efficiency. The peak current and switching frequency continuously S 4 5 BP reduce as the load decreases, thus receiving excellent efficiency performance at light load and improving the overall system efficiency.
SO-7
The AP3917D has multiple protection features to enhance the system safety and reliability. It has over-temperature protection, under-voltage lock function, output short protection, overload protection, and open-loop protection. The AP3917D is available in the SO-7 package.
Features Applications
• Universal 85VAC to 300VAC Input Range • Non-Isolated Home Appliances: AC Fans, Rice Cookers, • Internal MOSFET of 700V Shavers; Milk Machines • Maximal Peak Current: 500mA Typical • IoT Applications • Improved Constant Voltage: ±5% • Industrial Controls • Maximum 300mA Rated Output Current • Standby and Auxiliary • No Load Power Consumption: < 30mW with External Bias • Frequency Modulation to Suppress EMI • Various Protections: OTP (Over-Temperature Protection), OLP (Over Load Protection), SCP (Short Circuit Protection) • Fewer Components • Low Audible Noise Solution • SO-7 Package • Moisture Sensitivity: MSL Level 3 per J-STD-020 • Terminals: Finish – Matte Tin Plated Leads, Solderable per M2003 JESD22-B102, Method 208 • Weight: 0.077 grams (Approximate) •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen- and Antimony-Free. “Green” Device (Note 3)
•
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. AP3917D 1 of 12 March 2025 Document number: DS41540 Rev. 8 - 3
