Datasheet AP3917D (Diodes) - 5
| 制造商 | Diodes |
| 描述 | 700V Non-isolated regulator up to 370mA output current in SO-7 package |
| 页数 / 页 | 12 / 5 — AP3917D. Performance Characteristics. FB Voltage vs. Ambient Temperature. … |
| 文件格式/大小 | PDF / 593 Kb |
| 文件语言 | 英语 |

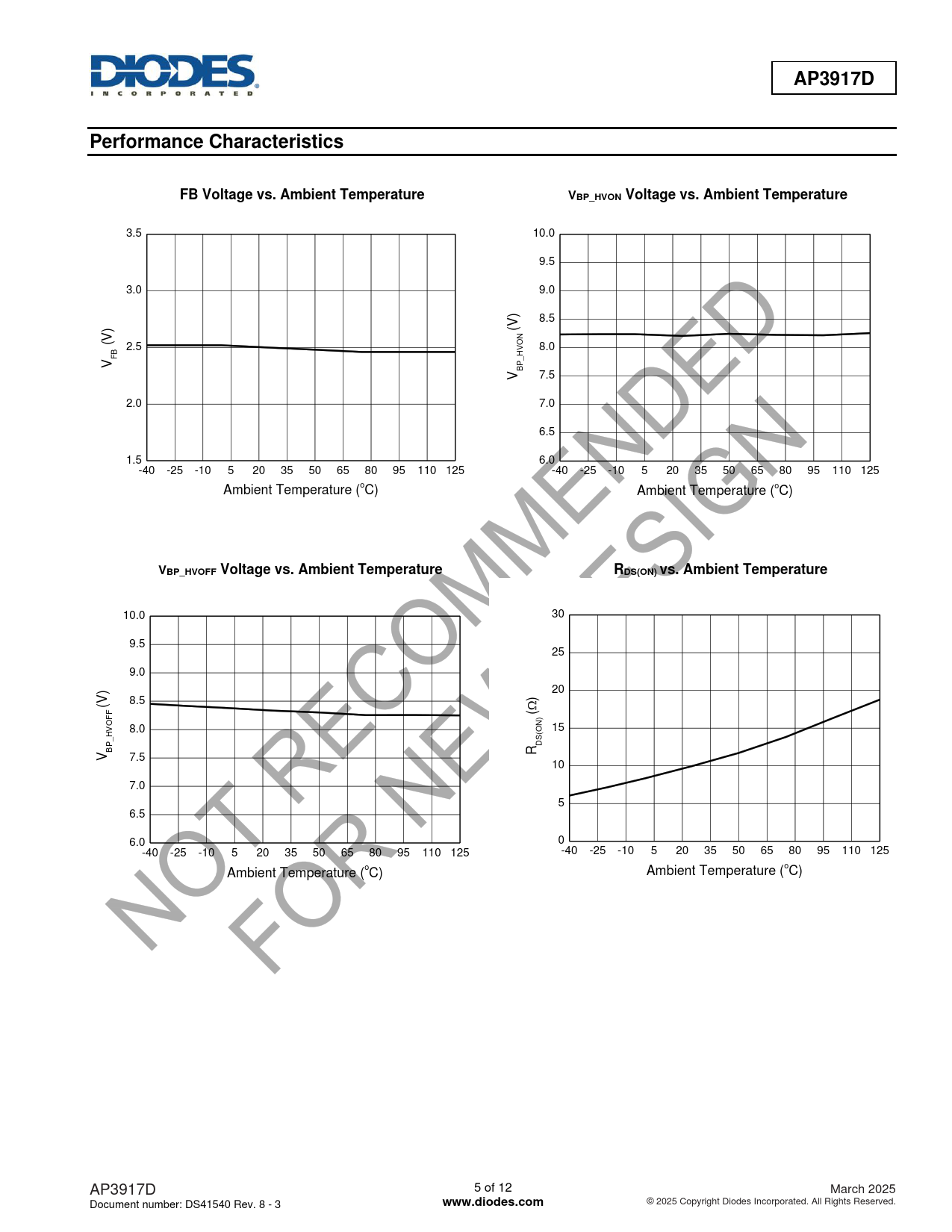

AP3917D. Performance Characteristics. FB Voltage vs. Ambient Temperature. VBP_HVON Voltage vs. Ambient Temperature
该数据表的模型线
文件文字版本
AP3917D Performance Characteristics FB Voltage vs. Ambient Temperature VBP_HVON Voltage vs. Ambient Temperature
3.5 10.0 9.5 3.0 9.0 8.5 (V) (V) N 2.5 VO 8.0 FB H V BP_ V 7.5 2.0 7.0 6.5 1.5 6.0 -40 -25 -10 5 20 35 50 65 80 95 110 125 -40 -25 -10 5 20 35 50 65 80 95 110 125 Ambient Temperature (oC) Ambient Temperature (oC)
VBP_HVOFF Voltage vs. Ambient Temperature RDS(ON) vs. Ambient Temperature
10.0 30 9.5 25 9.0 20 8.5 ) (V) F ( F ) N VO 8.0 15 H S(O D BP_ 7.5 V R 10 7.0 5 6.5 6.0 0 -40 -25 -10 5 20 35 50 65 80 95 110 125 -40 -25 -10 5 20 35 50 65 80 95 110 125 Ambient Temperature (oC) Ambient Temperature (oC) AP3917D 5 of 12 March 2025 Document number: DS41540 Rev. 8 - 3
