Datasheet AP3917D (Diodes) - 2
| 制造商 | Diodes |
| 描述 | 700V Non-isolated regulator up to 370mA output current in SO-7 package |
| 页数 / 页 | 12 / 2 — AP3917D. Typical Applications Circuit. Pin Descriptions. Pin Number. Pin … |
| 文件格式/大小 | PDF / 593 Kb |
| 文件语言 | 英语 |
AP3917D. Typical Applications Circuit. Pin Descriptions. Pin Number. Pin Name. Function. Functional Block Diagram. www.diodes.com
该数据表的模型线
文件文字版本

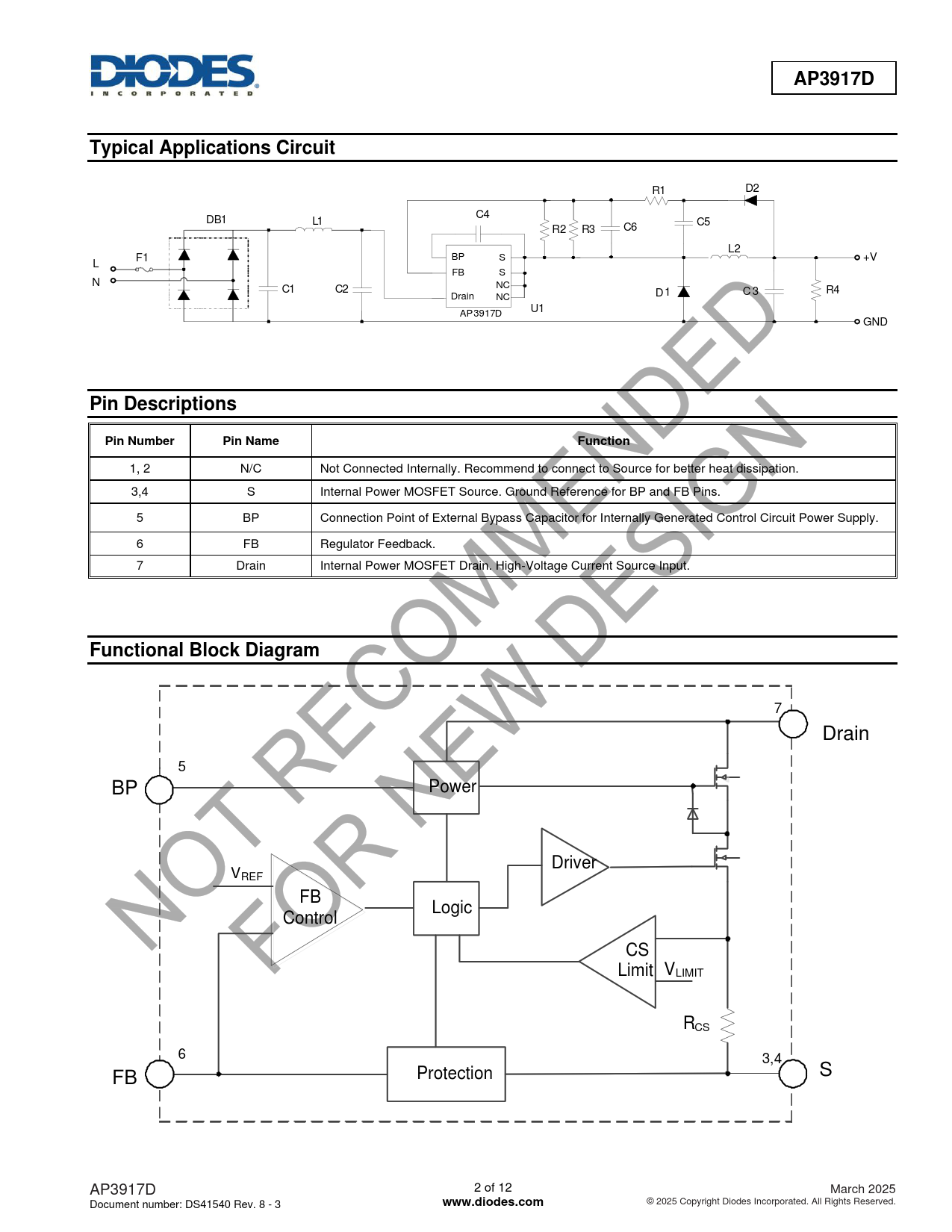

AP3917D Typical Applications Circuit
R1 D2 C4 DB1 L1 C5 R2 R3 C6 L2 F1 BP S +V L FB S N C1 C2 NC D 1 C 3 R4 Drain NC U1 AP3917D GND
Pin Descriptions Pin Number Pin Name Function
1, 2 N/C Not Connected Internally. Recommend to connect to Source for better heat dissipation. 3,4 S Internal Power MOSFET Source. Ground Reference for BP and FB Pins. 5 BP Connection Point of External Bypass Capacitor for Internally Generated Control Circuit Power Supply. 6 FB Regulator Feedback. 7 Drain Internal Power MOSFET Drain. High-Voltage Current Source Input.
Functional Block Diagram
7 Drain 5 BP Power Driver VREF FB Logic Control CS Limit VLIMIT RCS 6 3,4 FB Protection S AP3917D 2 of 12 March 2025 Document number: DS41540 Rev. 8 - 3
www.diodes.com
© 2025 Copyright Diodes Incorporated. All Rights Reserved.
R1 D2 C4 DB1 L1 C5 R2 R3 C6 L2 F1 BP S +V L FB S N C1 C2 NC D 1 C 3 R4 Drain NC U1 AP3917D GND
Pin Descriptions Pin Number Pin Name Function
1, 2 N/C Not Connected Internally. Recommend to connect to Source for better heat dissipation. 3,4 S Internal Power MOSFET Source. Ground Reference for BP and FB Pins. 5 BP Connection Point of External Bypass Capacitor for Internally Generated Control Circuit Power Supply. 6 FB Regulator Feedback. 7 Drain Internal Power MOSFET Drain. High-Voltage Current Source Input.
Functional Block Diagram
7 Drain 5 BP Power Driver VREF FB Logic Control CS Limit VLIMIT RCS 6 3,4 FB Protection S AP3917D 2 of 12 March 2025 Document number: DS41540 Rev. 8 - 3
