Datasheet VLMRGB1500 (Vishay) - 3
| 制造商 | Vishay |
| 描述 | Multi SMD Chip LED RGB in 0404 package |
| 页数 / 页 | 9 / 3 — VLMRGB1500. LUMINOUS INTENSITY. RED. TRUE GREEN. BLUE. BIN CODE. MIN. … |
| 文件格式/大小 | PDF / 443 Kb |
| 文件语言 | 英语 |
VLMRGB1500. LUMINOUS INTENSITY. RED. TRUE GREEN. BLUE. BIN CODE. MIN. MAX. Note. DOMINANT WAVELENGTH
该数据表的模型线

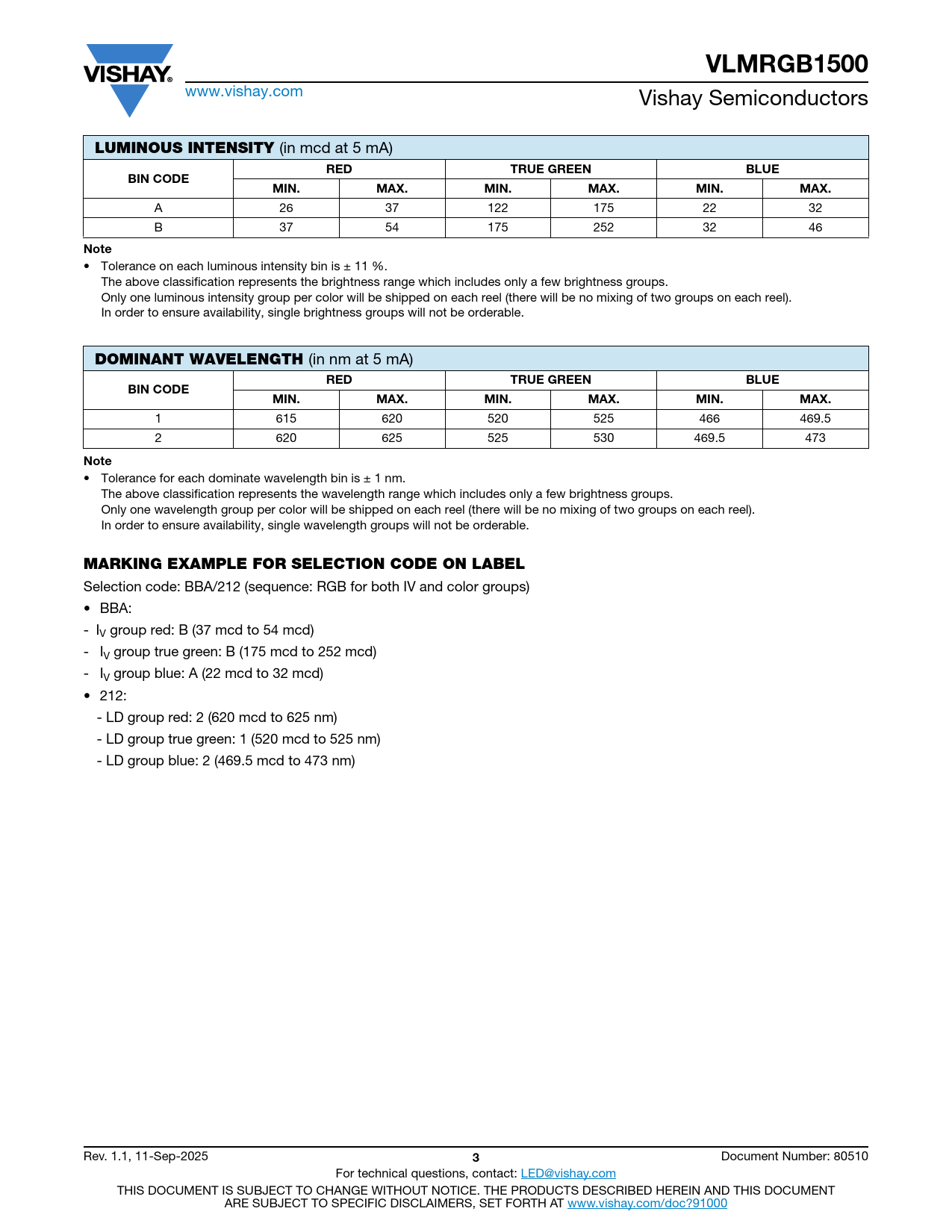

文件文字版本
VLMRGB1500
www.vishay.com Vishay Semiconductors
LUMINOUS INTENSITY
(in mcd at 5 mA)
RED TRUE GREEN BLUE BIN CODE MIN. MAX. MIN. MAX. MIN. MAX.
A 26 37 122 175 22 32 B 37 54 175 252 32 46
Note
• Tolerance on each luminous intensity bin is ± 11 %. The above classification represents the brightness range which includes only a few brightness groups. Only one luminous intensity group per color will be shipped on each reel (there will be no mixing of two groups on each reel). In order to ensure availability, single brightness groups will not be orderable.
DOMINANT WAVELENGTH
(in nm at 5 mA)
RED TRUE GREEN BLUE BIN CODE MIN. MAX. MIN. MAX. MIN. MAX.
1 615 620 520 525 466 469.5 2 620 625 525 530 469.5 473
Note
• Tolerance for each dominate wavelength bin is ± 1 nm. The above classification represents the wavelength range which includes only a few brightness groups. Only one wavelength group per color will be shipped on each reel (there will be no mixing of two groups on each reel). In order to ensure availability, single wavelength groups will not be orderable.
MARKING EXAMPLE FOR SELECTION CODE ON LABEL
Selection code: BBA/212 (sequence: RGB for both IV and color groups) • BBA: - IV group red: B (37 mcd to 54 mcd) - IV group true green: B (175 mcd to 252 mcd) - IV group blue: A (22 mcd to 32 mcd) • 212: - LD group red: 2 (620 mcd to 625 nm) - LD group true green: 1 (520 mcd to 525 nm) - LD group blue: 2 (469.5 mcd to 473 nm) Rev. 1.1, 11-Sep-2025
3
Document Number: 80510 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
