VLMRGB1500. PACKAGE DIMENSIONS / SOLDERING PADS DIMENSIONS
该数据表的模型线
文件文字版本
VLMRGB1500
www.vishay.com Vishay Semiconductors

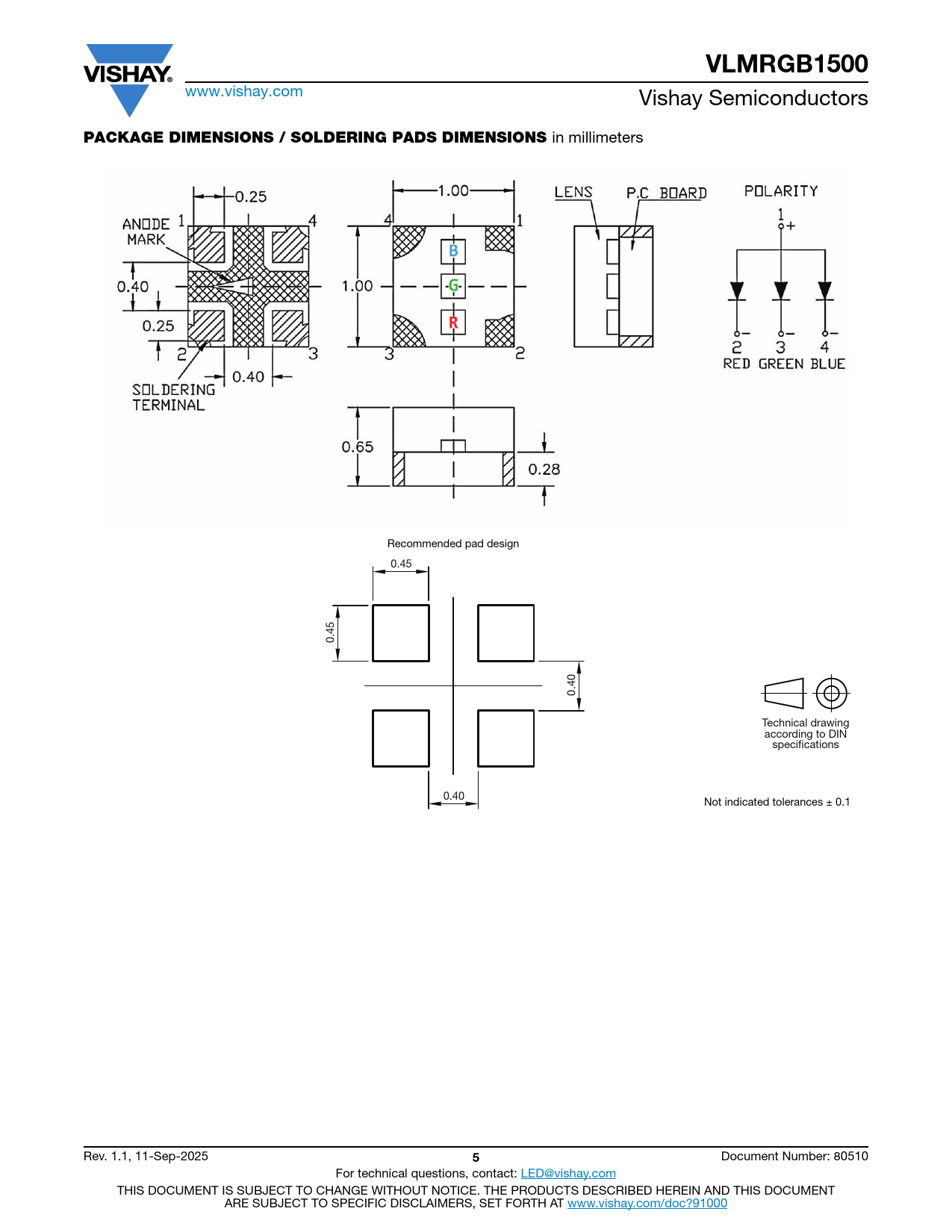

PACKAGE DIMENSIONS / SOLDERING PADS DIMENSIONS
in millimeters Recommended pad design 0.45 0.45 0.40 Technical drawing according to DIN specifications 0.40 Not indicated tolerances ± 0.1 Rev. 1.1, 11-Sep-2025
5
Document Number: 80510 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
