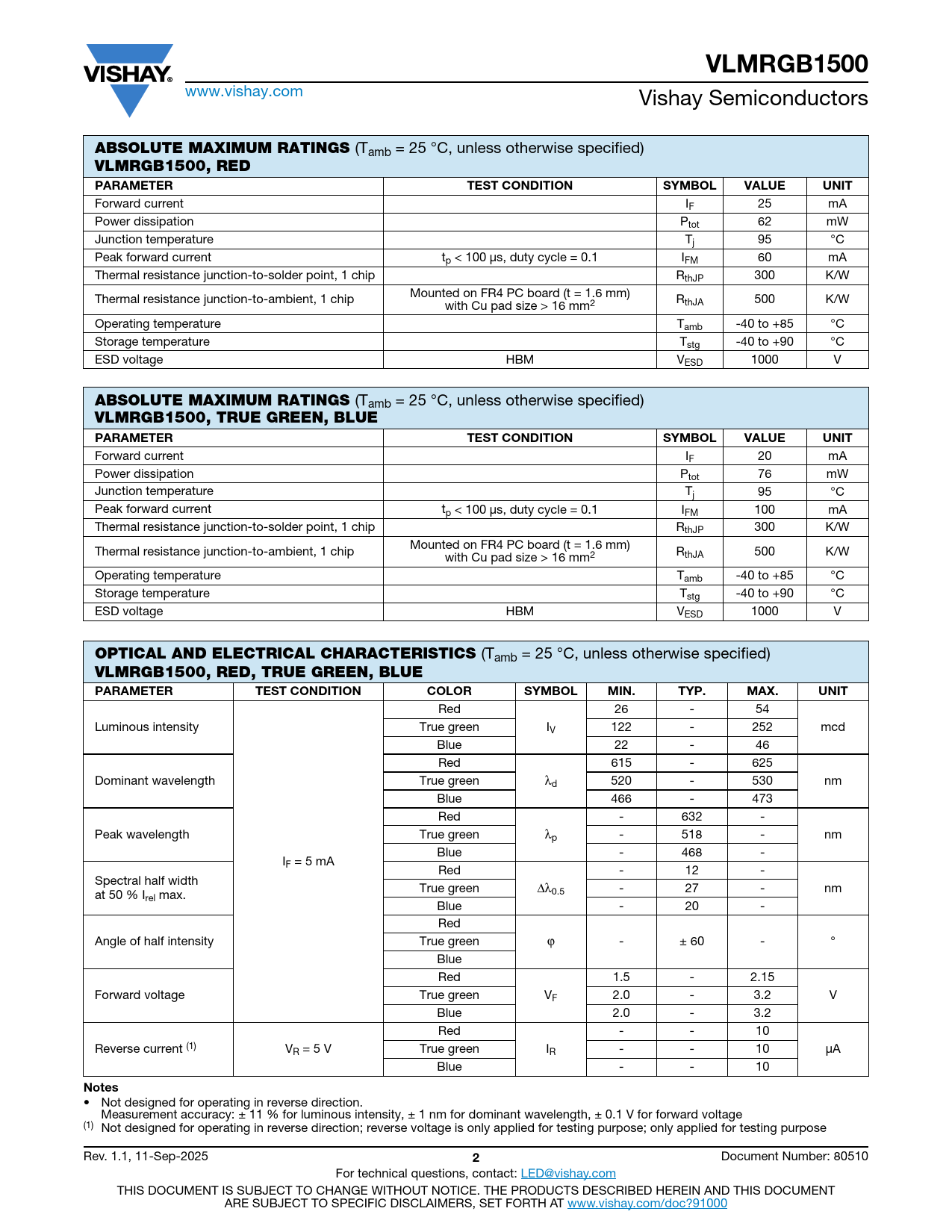

VLMRGB1500
www.vishay.com Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
VLMRGB1500, RED PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Forward current IF 25 mA Power dissipation Ptot 62 mW Junction temperature Tj 95 °C Peak forward current tp < 100 μs, duty cycle = 0.1 IFM 60 mA Thermal resistance junction-to-solder point, 1 chip RthJP 300 K/W Mounted on FR4 PC board (t = 1.6 mm) Thermal resistance junction-to-ambient, 1 chip with Cu pad size > 16 mm2 RthJA 500 K/W Operating temperature Tamb -40 to +85 °C Storage temperature Tstg -40 to +90 °C ESD voltage HBM VESD 1000 V
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
VLMRGB1500, TRUE GREEN, BLUE PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Forward current IF 20 mA Power dissipation Ptot 76 mW Junction temperature Tj 95 °C Peak forward current tp < 100 μs, duty cycle = 0.1 IFM 100 mA Thermal resistance junction-to-solder point, 1 chip RthJP 300 K/W Mounted on FR4 PC board (t = 1.6 mm) Thermal resistance junction-to-ambient, 1 chip with Cu pad size > 16 mm2 RthJA 500 K/W Operating temperature Tamb -40 to +85 °C Storage temperature Tstg -40 to +90 °C ESD voltage HBM VESD 1000 V
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMRGB1500, RED, TRUE GREEN, BLUE PARAMETER TEST CONDITION COLOR SYMBOL MIN. TYP. MAX. UNIT
Red 26 - 54 Luminous intensity True green IV 122 - 252 mcd Blue 22 - 46 Red 615 - 625 Dominant wavelength True green λd 520 - 530 nm Blue 466 - 473 Red - 632 - Peak wavelength True green λp - 518 - nm Blue - 468 - IF = 5 mA Red - 12 - Spectral half width True green Δλ - 27 - nm at 50 % I 0.5 rel max. Blue - 20 - Red Angle of half intensity True green ϕ - ± 60 - ° Blue Red 1.5 - 2.15 Forward voltage True green VF 2.0 - 3.2 V Blue 2.0 - 3.2 Red - - 10 Reverse current (1) VR = 5 V True green IR - - 10 μA Blue - - 10
Notes
• Not designed for operating in reverse direction. Measurement accuracy: ± 11 % for luminous intensity, ± 1 nm for dominant wavelength, ± 0.1 V for forward voltage (1) Not designed for operating in reverse direction; reverse voltage is only applied for testing purpose; only applied for testing purpose Rev. 1.1, 11-Sep-2025
2
Document Number: 80510 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
VLMRGB1500, RED PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Forward current IF 25 mA Power dissipation Ptot 62 mW Junction temperature Tj 95 °C Peak forward current tp < 100 μs, duty cycle = 0.1 IFM 60 mA Thermal resistance junction-to-solder point, 1 chip RthJP 300 K/W Mounted on FR4 PC board (t = 1.6 mm) Thermal resistance junction-to-ambient, 1 chip with Cu pad size > 16 mm2 RthJA 500 K/W Operating temperature Tamb -40 to +85 °C Storage temperature Tstg -40 to +90 °C ESD voltage HBM VESD 1000 V
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
VLMRGB1500, TRUE GREEN, BLUE PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Forward current IF 20 mA Power dissipation Ptot 76 mW Junction temperature Tj 95 °C Peak forward current tp < 100 μs, duty cycle = 0.1 IFM 100 mA Thermal resistance junction-to-solder point, 1 chip RthJP 300 K/W Mounted on FR4 PC board (t = 1.6 mm) Thermal resistance junction-to-ambient, 1 chip with Cu pad size > 16 mm2 RthJA 500 K/W Operating temperature Tamb -40 to +85 °C Storage temperature Tstg -40 to +90 °C ESD voltage HBM VESD 1000 V
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
VLMRGB1500, RED, TRUE GREEN, BLUE PARAMETER TEST CONDITION COLOR SYMBOL MIN. TYP. MAX. UNIT
Red 26 - 54 Luminous intensity True green IV 122 - 252 mcd Blue 22 - 46 Red 615 - 625 Dominant wavelength True green λd 520 - 530 nm Blue 466 - 473 Red - 632 - Peak wavelength True green λp - 518 - nm Blue - 468 - IF = 5 mA Red - 12 - Spectral half width True green Δλ - 27 - nm at 50 % I 0.5 rel max. Blue - 20 - Red Angle of half intensity True green ϕ - ± 60 - ° Blue Red 1.5 - 2.15 Forward voltage True green VF 2.0 - 3.2 V Blue 2.0 - 3.2 Red - - 10 Reverse current (1) VR = 5 V True green IR - - 10 μA Blue - - 10
Notes
• Not designed for operating in reverse direction. Measurement accuracy: ± 11 % for luminous intensity, ± 1 nm for dominant wavelength, ± 0.1 V for forward voltage (1) Not designed for operating in reverse direction; reverse voltage is only applied for testing purpose; only applied for testing purpose Rev. 1.1, 11-Sep-2025
2
Document Number: 80510 For technical questions, contact: LED@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
