Datasheet JX4S0040R120M (JX Semiconductor) - 7
| 制造商 | JX Semiconductor |
| 描述 | 1200V, 60A, 45mΩ , N-Channel, Silicon Carbide MOSFET in TO-247-3 package |
| 页数 / 页 | 10 / 7 — JX4S0040R120M. 1200V, N.Channel, Silicon Carbide MOSFET. Typical … |
| 文件格式/大小 | PDF / 608 Kb |
| 文件语言 | 英语 |
JX4S0040R120M. 1200V, N.Channel, Silicon Carbide MOSFET. Typical Performance. Figure 13. Figure 14. Figure 15. Figure 16
该数据表的模型线
文件文字版本

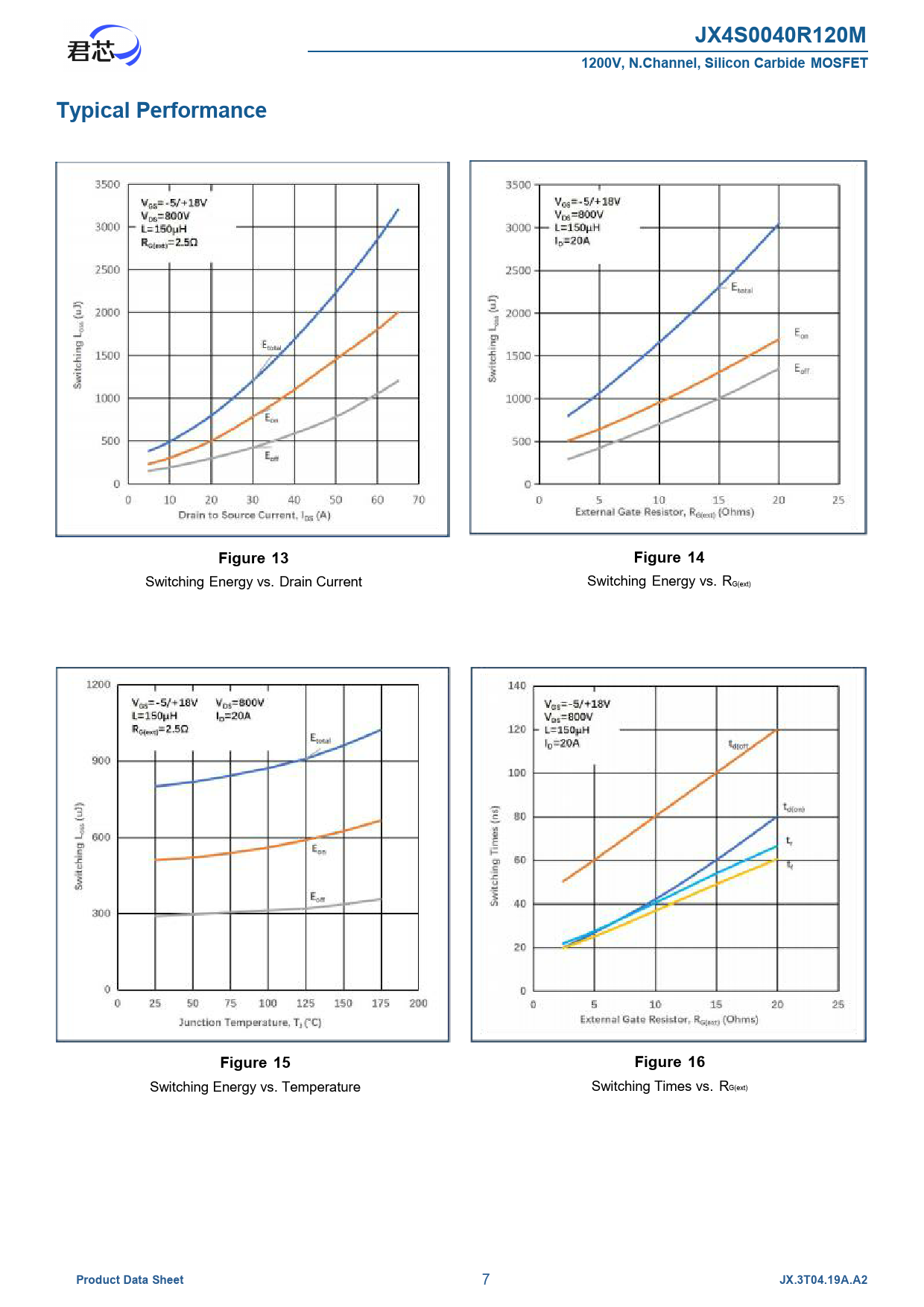

JX4S0040R120M 1200V, N.Channel, Silicon Carbide MOSFET Typical Performance Figure 13 Figure 14
Switching Energy vs. Drain Current Switching Energy vs. RG(ext)
Figure 15 Figure 16
Switching Energy vs. Temperature Switching Times vs. RG(ext)
Product Data Sheet
7
JX.3T04.19A.A2
