Datasheet JX4S0040R120M (JX Semiconductor) - 6
| 制造商 | JX Semiconductor |
| 描述 | 1200V, 60A, 45mΩ , N-Channel, Silicon Carbide MOSFET in TO-247-3 package |
| 页数 / 页 | 10 / 6 — JX4S0040R120M. 1200V, N.Channel, Silicon Carbide MOSFET. Typical … |
| 文件格式/大小 | PDF / 608 Kb |
| 文件语言 | 英语 |
JX4S0040R120M. 1200V, N.Channel, Silicon Carbide MOSFET. Typical Performance. Figure 9. Figure 10. Figure 11. Figure 12
该数据表的模型线
文件文字版本

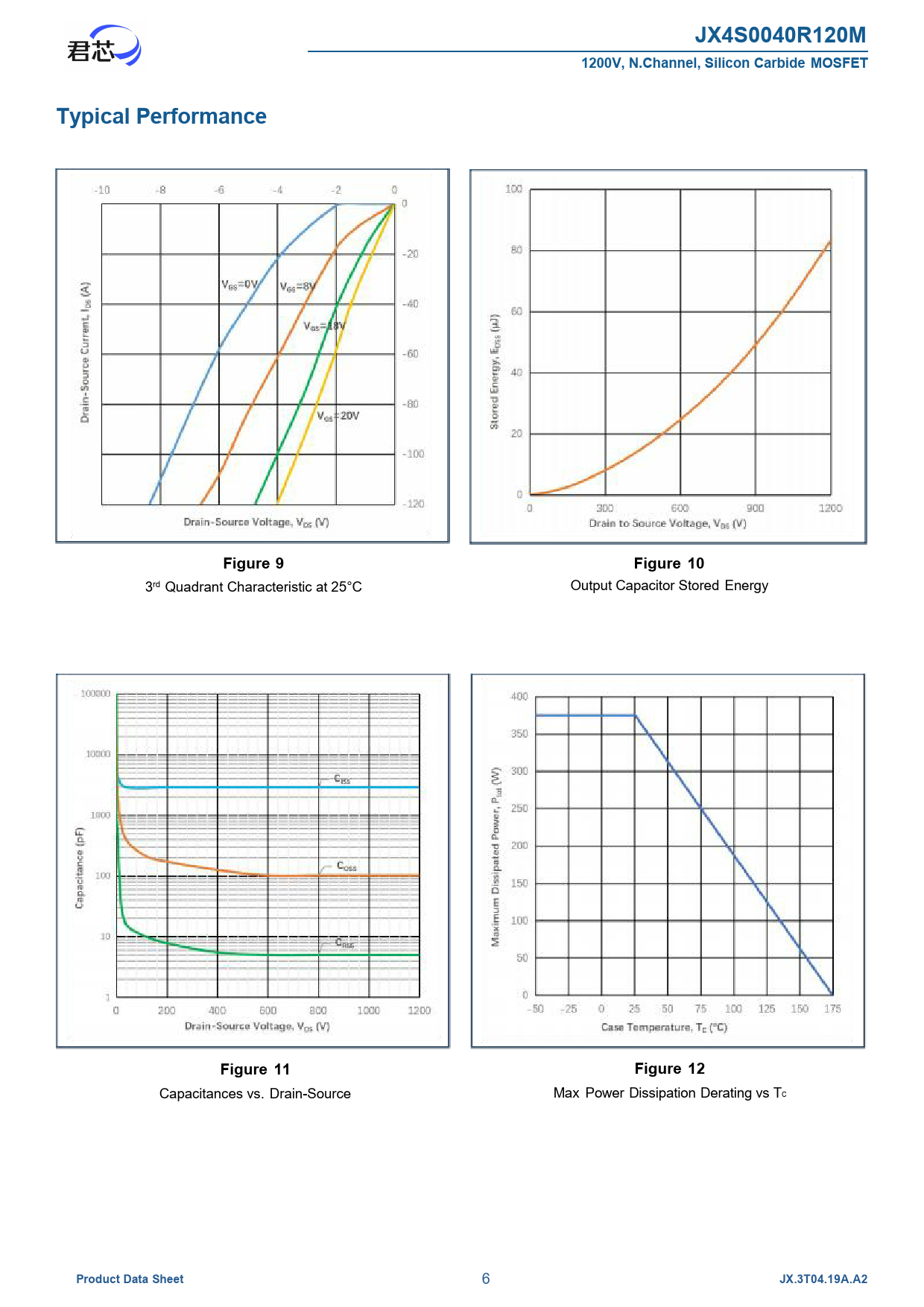

JX4S0040R120M 1200V, N.Channel, Silicon Carbide MOSFET Typical Performance Figure 9 Figure 10
3rd Quadrant Characteristic at 25°C Output Capacitor Stored Energy
Figure 11 Figure 12
Capacitances vs. Drain-Source Max Power Dissipation Derating vs TC
Product Data Sheet
6
JX.3T04.19A.A2
