DB3, DB4, SMDB3. Ordering information. Figure 10. Ordering information scheme. Table 5. Ordering information. Order code. Marking
该数据表的模型线
文件文字版本

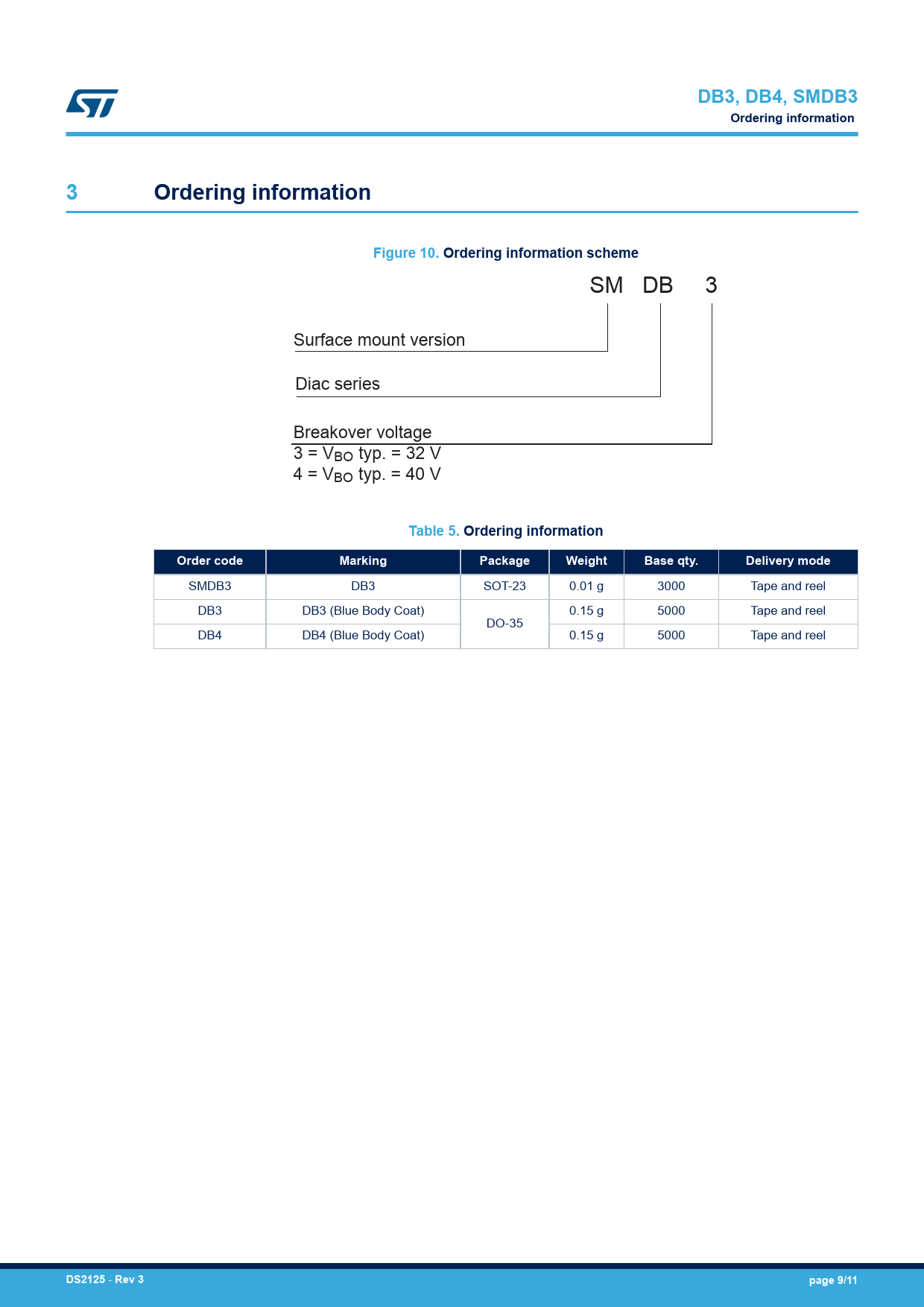

DB3, DB4, SMDB3 Ordering information 3 Ordering information Figure 10. Ordering information scheme
SM DB 3 Surface mount version Diac series Breakover voltage 3 = VBO typ. = 32 V 4 = VBO typ. = 40 V
Table 5. Ordering information Order code Marking Package Weight Base qty. Delivery mode
SMDB3 DB3 SOT-23 0.01 g 3000 Tape and reel DB3 DB3 (Blue Body Coat) 0.15 g 5000 Tape and reel DO-35 DB4 DB4 (Blue Body Coat) 0.15 g 5000 Tape and reel
DS2125
-
Rev 3 page 9/11
Document Outline 1 Characteristics 1.1 Characteristics curves 2 Package information 2.1 SOT23 package information 2.2 DO-35 package information 3 Ordering information Revision history
