Datasheet PMV65XP (Nexperia) - 7
| 制造商 | Nexperia |
| 描述 | 20 V, single P-channel Trench MOSFET |
| 页数 / 页 | 14 / 7 — Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET. Fig. 8. … |
| 修订版 | 04201705 |
| 文件格式/大小 | PDF / 742 Kb |
| 文件语言 | 英语 |

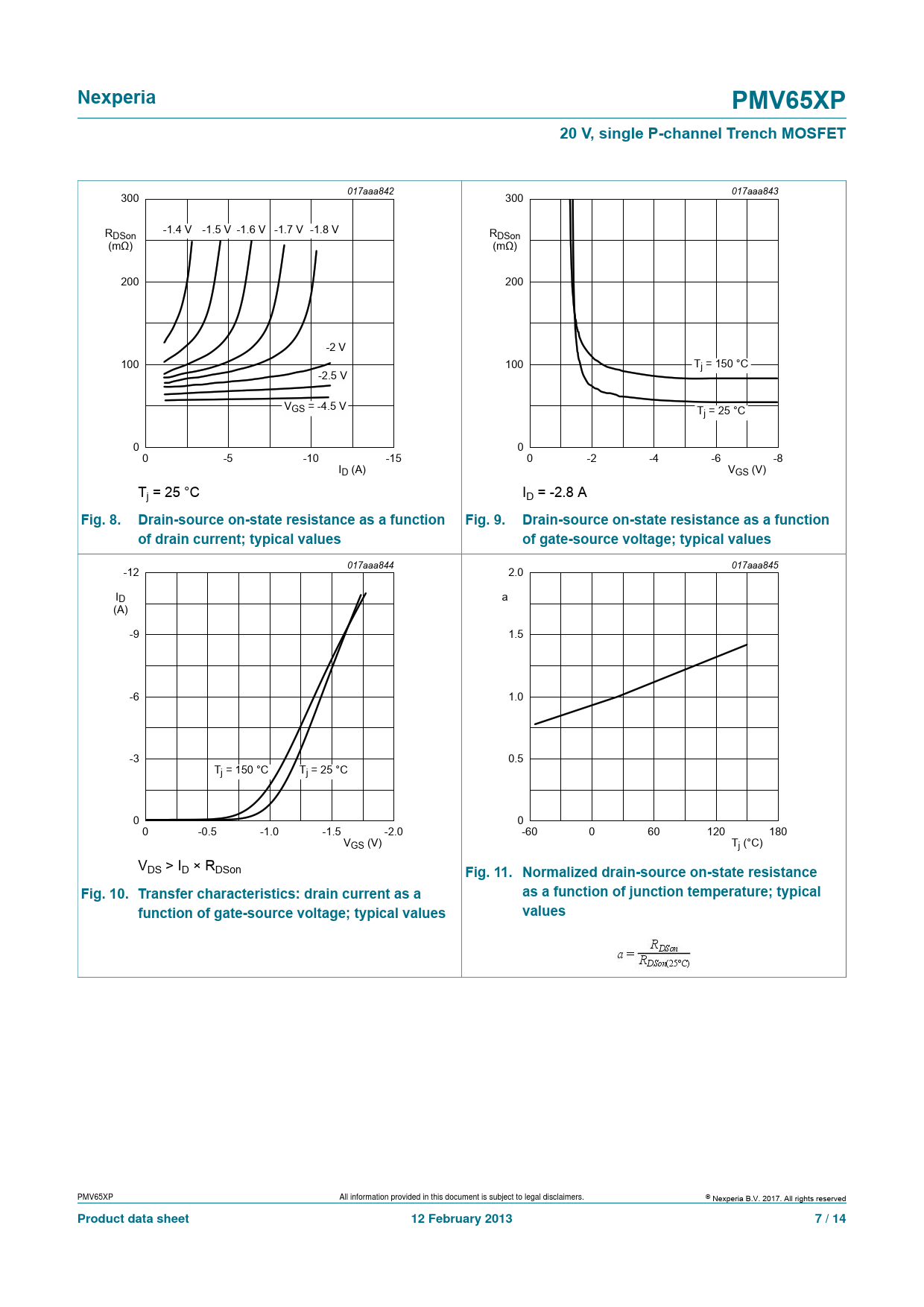

Nexperia. PMV65XP. 20 V, single P-channel Trench MOSFET. Fig. 8. Drain-source on-state resistance as a function
该数据表的模型线
文件文字版本
Nexperia PMV65XP 20 V, single P-channel Trench MOSFET
017aaa842 300 017aaa843 300 R -1.4 V -1.5 V -1.6 V -1.7 V -1.8 V DSon RDSon (mΩ) (mΩ) 200 200 -2 V 100 100 Tj = 150 °C -2.5 V VGS = -4.5 V Tj = 25 °C 0 0 0 -5 -10 -15 0 -2 -4 -6 -8 ID (A) VGS (V) Tj = 25 °C ID = -2.8 A
Fig. 8. Drain-source on-state resistance as a function Fig. 9. Drain-source on-state resistance as a function of drain current; typical values of gate-source voltage; typical values
017aaa844 -12 017aaa845 2.0 ID a (A) -9 1.5 -6 1.0 -3 0.5 Tj = 150 °C Tj = 25 °C 0 0 0 -0.5 -1.0 -1.5 -2.0 -60 0 60 120 180 VGS (V) Tj (°C) VDS > ID × RDSon
Fig. 11. Normalized drain-source on-state resistance Fig. 10. Transfer characteristics: drain current as a as a function of junction temperature; typical function of gate-source voltage; typical values values
