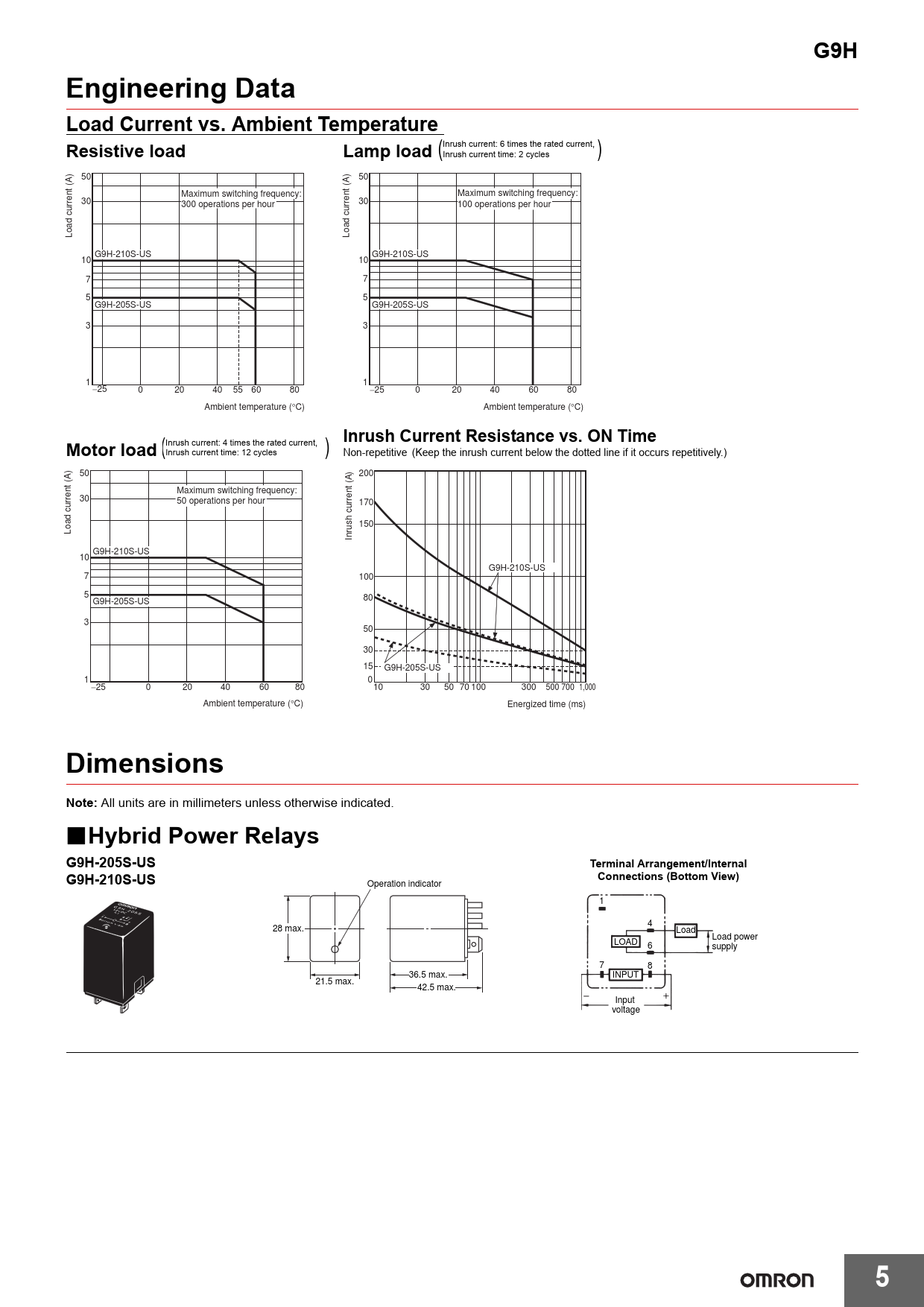

G9H. Engineering Data Load Current vs. Ambient Temperature Resistive load. Lamp load. Inrush Current Resistance vs. ON Time
该数据表的模型线
文件文字版本
G9H Engineering Data Load Current vs. Ambient Temperature Resistive load Lamp load
Inrush current: 6 times the rated current, ( ) Inrush current time: 2 cycles 50 50 Maximum switching frequency: Maximum switching frequency: 30 300 operations per hour 30 100 operations per hour Load current (A) Load current (A) G9H-210S-US G9H-210S-US 10 10 7 7 5 5 G9H-205S-US G9H-205S-US 3 3 1 1 25 0 20 40 55 60 80 25 0 20 40 60 80 Ambient temperature (qC) Ambient temperature (qC)
Inrush Current Resistance vs. ON Time Motor load
Inrush current: 4 times the rated current, ( ) Inrush current time: 12 cycles Non-repetitive (Keep the inrush current below the dotted line if it occurs repetitively.) 50 200 Maximum switching frequency: 30 50 operations per hour 170 150 ush current (A) Load current (A) Inr G9H-210S-US 10 G9H-210S-US 7 100 5 G9H-205S-US 80 3 50 30 15 G9H-205S-US 1 0 25 0 20 40 60 80 10 30 50 70 100 300 500 700 1,000 Ambient temperature (qC) Energized time (ms)
Dimensions Note:
All units are in millimeters unless otherwise indicated.
Hybrid Power Relays G9H-205S-US Terminal Arrangement/Internal Connections (Bottom View) G9H-210S-US
Operation indicator 1 4 28 max. Load Load power LOAD 6 supply 7 8 36.5 max. INPUT 21.5 max. 42.5 max. Input voltage
5
