G9H. Specifications. Ratings. Input. Rated voltage. Item. Operating voltage. Coil resistance. Must operate voltage. Must release voltage
该数据表的模型线
文件文字版本

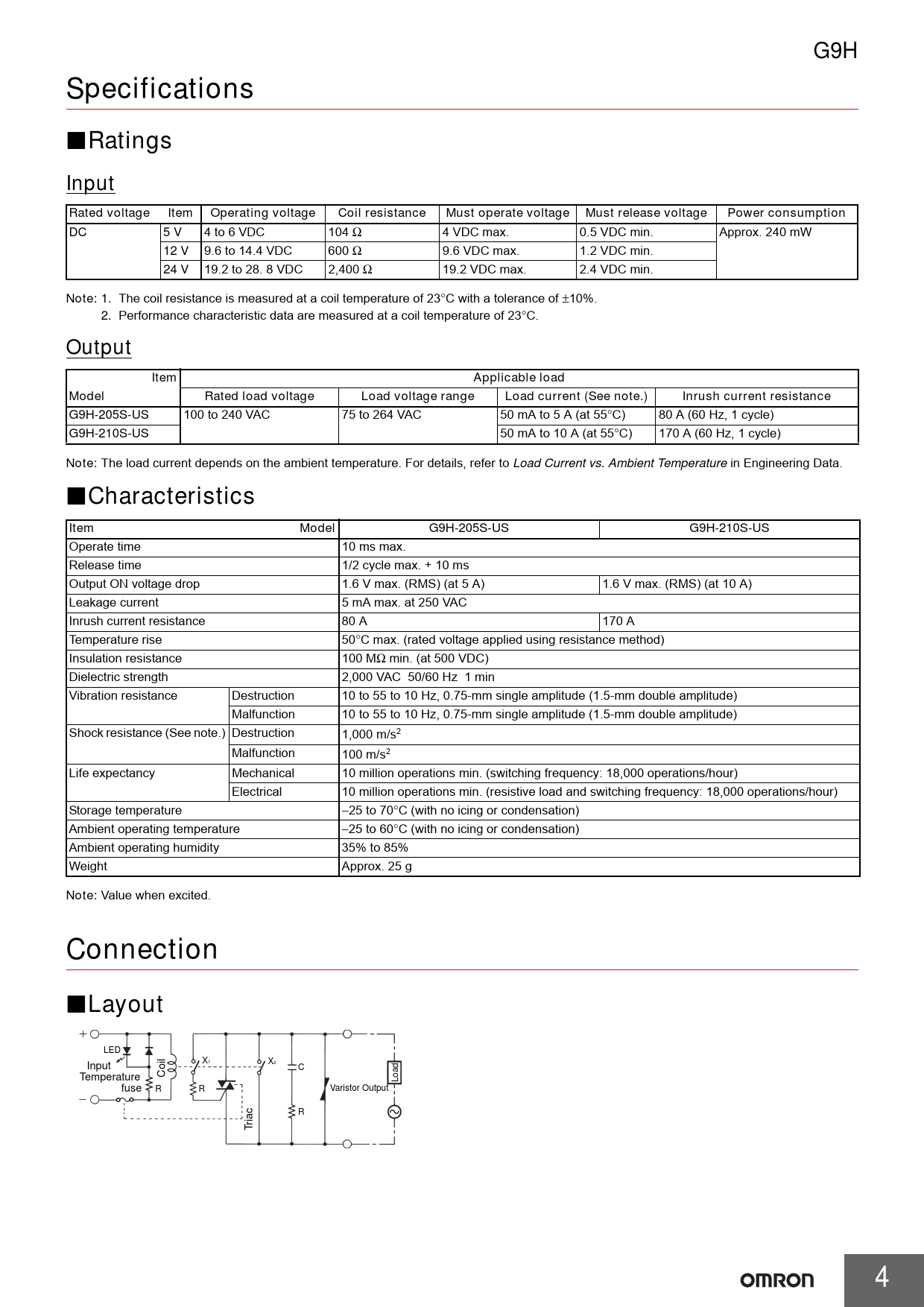

G9H Specifications
Ratings Input Rated voltage Item Operating voltage Coil resistance Must operate voltage Must release voltage Power consumption DC 5 V
4 to 6 VDC 104 Ω 4 VDC max. 0.5 VDC min. Approx. 240 mW
12 V
9.6 to 14.4 VDC 600 Ω 9.6 VDC max. 1.2 VDC min.
24 V
19.2 to 28. 8 VDC 2,400 Ω 19.2 VDC max. 2.4 VDC min.
Note: 1.
The coil resistance is measured at a coil temperature of 23°C with a tolerance of ±10%.
2.
Performance characteristic data are measured at a coil temperature of 23°C.
Output Item Applicable load Model Rated load voltage Load voltage range Load current (See note.) Inrush current resistance G9H-205S-US
100 to 240 VAC 75 to 264 VAC 50 mA to 5 A (at 55°C) 80 A (60 Hz, 1 cycle)
G9H-210S-US
50 mA to 10 A (at 55°C) 170 A (60 Hz, 1 cycle)
Note:
The load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering Data.
Characteristics Item Model G9H-205S-US G9H-210S-US
Operate time 10 ms max. Release time 1/2 cycle max. + 10 ms Output ON voltage drop 1.6 V max. (RMS) (at 5 A) 1.6 V max. (RMS) (at 10 A) Leakage current 5 mA max. at 250 VAC Inrush current resistance 80 A 170 A Temperature rise 50°C max. (rated voltage applied using resistance method) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength 2,000 VAC 50/60 Hz 1 min Vibration resistance Destruction 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Malfunction 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Shock resistance (See note.) Destruction 1,000 m/s2 Malfunction 100 m/s2 Life expectancy Mechanical 10 million operations min. (switching frequency: 18,000 operations/hour) Electrical 10 million operations min. (resistive load and switching frequency: 18,000 operations/hour) Storage temperature −25 to 70°C (with no icing or condensation) Ambient operating temperature −25 to 60°C (with no icing or condensation) Ambient operating humidity 35% to 85% Weight Approx. 25 g
Note:
Value when excited.
Connection
Layout
LED X1 X2 Input C Temperature Coil Load fuse R R Varistor Output R riac T
4
Ratings Input Rated voltage Item Operating voltage Coil resistance Must operate voltage Must release voltage Power consumption DC 5 V
4 to 6 VDC 104 Ω 4 VDC max. 0.5 VDC min. Approx. 240 mW
12 V
9.6 to 14.4 VDC 600 Ω 9.6 VDC max. 1.2 VDC min.
24 V
19.2 to 28. 8 VDC 2,400 Ω 19.2 VDC max. 2.4 VDC min.
Note: 1.
The coil resistance is measured at a coil temperature of 23°C with a tolerance of ±10%.
2.
Performance characteristic data are measured at a coil temperature of 23°C.
Output Item Applicable load Model Rated load voltage Load voltage range Load current (See note.) Inrush current resistance G9H-205S-US
100 to 240 VAC 75 to 264 VAC 50 mA to 5 A (at 55°C) 80 A (60 Hz, 1 cycle)
G9H-210S-US
50 mA to 10 A (at 55°C) 170 A (60 Hz, 1 cycle)
Note:
The load current depends on the ambient temperature. For details, refer to Load Current vs. Ambient Temperature in Engineering Data.
Characteristics Item Model G9H-205S-US G9H-210S-US
Operate time 10 ms max. Release time 1/2 cycle max. + 10 ms Output ON voltage drop 1.6 V max. (RMS) (at 5 A) 1.6 V max. (RMS) (at 10 A) Leakage current 5 mA max. at 250 VAC Inrush current resistance 80 A 170 A Temperature rise 50°C max. (rated voltage applied using resistance method) Insulation resistance 100 MΩ min. (at 500 VDC) Dielectric strength 2,000 VAC 50/60 Hz 1 min Vibration resistance Destruction 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Malfunction 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) Shock resistance (See note.) Destruction 1,000 m/s2 Malfunction 100 m/s2 Life expectancy Mechanical 10 million operations min. (switching frequency: 18,000 operations/hour) Electrical 10 million operations min. (resistive load and switching frequency: 18,000 operations/hour) Storage temperature −25 to 70°C (with no icing or condensation) Ambient operating temperature −25 to 60°C (with no icing or condensation) Ambient operating humidity 35% to 85% Weight Approx. 25 g
Note:
Value when excited.
Connection
Layout
LED X1 X2 Input C Temperature Coil Load fuse R R Varistor Output R riac T
4
