Hybrid Power Relay G9H. Hybridization of a Magnetic Relay and an SSR Achieves 10-A Switching for 10 Million Operations
该数据表的模型线
文件文字版本

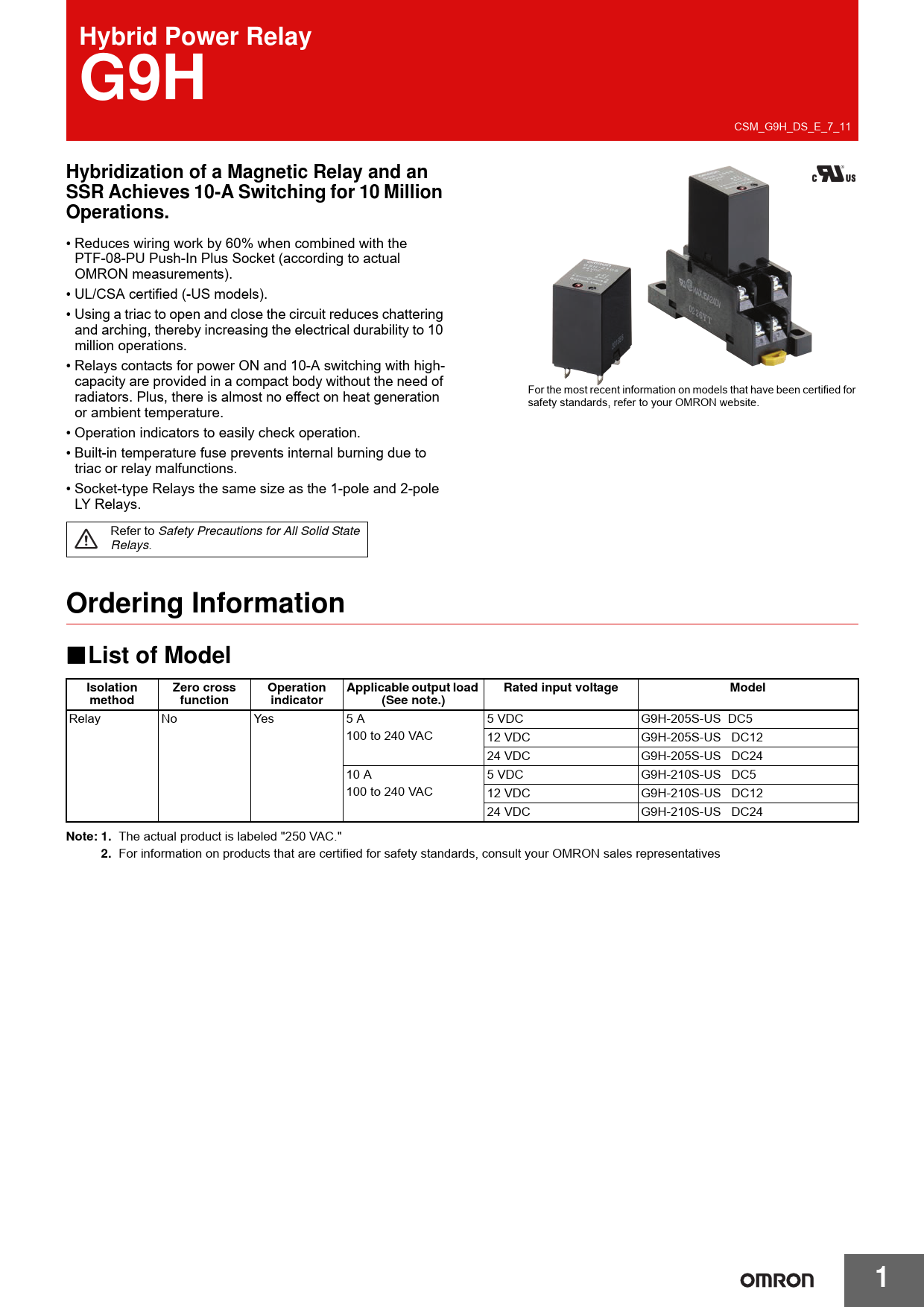

Hybrid Power Relay G9H
CSM_G9H_DS_E_7_11
Hybridization of a Magnetic Relay and an SSR Achieves 10-A Switching for 10 Million Operations.
• Reduces wiring work by 60% when combined with the PTF-08-PU Push-In Plus Socket (according to actual OMRON measurements). • UL/CSA certified (-US models). • Using a triac to open and close the circuit reduces chattering and arching, thereby increasing the electrical durability to 10 million operations. • Relays contacts for power ON and 10-A switching with high- capacity are provided in a compact body without the need of radiators. Plus, there is almost no effect on heat generation For the most recent information on models that have been certified for safety standards, refer to your OMRON website. or ambient temperature. • Operation indicators to easily check operation. • Built-in temperature fuse prevents internal burning due to triac or relay malfunctions. • Socket-type Relays the same size as the 1-pole and 2-pole LY Relays. Refer to Safety Precautions for All Solid State Relays.
Ordering Information
List of Model Isolation Zero cross Operation Applicable output load Rated input voltage Model method function indicator (See note.)
Relay No Yes 5 A 5 VDC G9H-205S-US DC5 100 to 240 VAC 12 VDC G9H-205S-US DC12 24 VDC G9H-205S-US DC24 10 A 5 VDC G9H-210S-US DC5 100 to 240 VAC 12 VDC G9H-210S-US DC12 24 VDC G9H-210S-US DC24
Note: 1.
The actual product is labeled "250 VAC."
2.
For information on products that are certified for safety standards, consult your OMRON sales representatives
1
CSM_G9H_DS_E_7_11
Hybridization of a Magnetic Relay and an SSR Achieves 10-A Switching for 10 Million Operations.
• Reduces wiring work by 60% when combined with the PTF-08-PU Push-In Plus Socket (according to actual OMRON measurements). • UL/CSA certified (-US models). • Using a triac to open and close the circuit reduces chattering and arching, thereby increasing the electrical durability to 10 million operations. • Relays contacts for power ON and 10-A switching with high- capacity are provided in a compact body without the need of radiators. Plus, there is almost no effect on heat generation For the most recent information on models that have been certified for safety standards, refer to your OMRON website. or ambient temperature. • Operation indicators to easily check operation. • Built-in temperature fuse prevents internal burning due to triac or relay malfunctions. • Socket-type Relays the same size as the 1-pole and 2-pole LY Relays. Refer to Safety Precautions for All Solid State Relays.
Ordering Information
List of Model Isolation Zero cross Operation Applicable output load Rated input voltage Model method function indicator (See note.)
Relay No Yes 5 A 5 VDC G9H-205S-US DC5 100 to 240 VAC 12 VDC G9H-205S-US DC12 24 VDC G9H-205S-US DC24 10 A 5 VDC G9H-210S-US DC5 100 to 240 VAC 12 VDC G9H-210S-US DC12 24 VDC G9H-210S-US DC24
Note: 1.
The actual product is labeled "250 VAC."
2.
For information on products that are certified for safety standards, consult your OMRON sales representatives
1
