Datasheet FGD3050G2V (ON Semiconductor) - 3
| 制造商 | ON Semiconductor |
| 描述 | Ignition IGBT, 500V, 27A, 1.3V, 300mJ, DPAK EcoSPARK II, N-Channel Ignition |
| 页数 / 页 | 9 / 3 — FGD3050G2V. TYPICAL CHARACTERISTICS. Figure 1. Self Clamped Inductive … |
| 文件格式/大小 | PDF / 602 Kb |
| 文件语言 | 英语 |

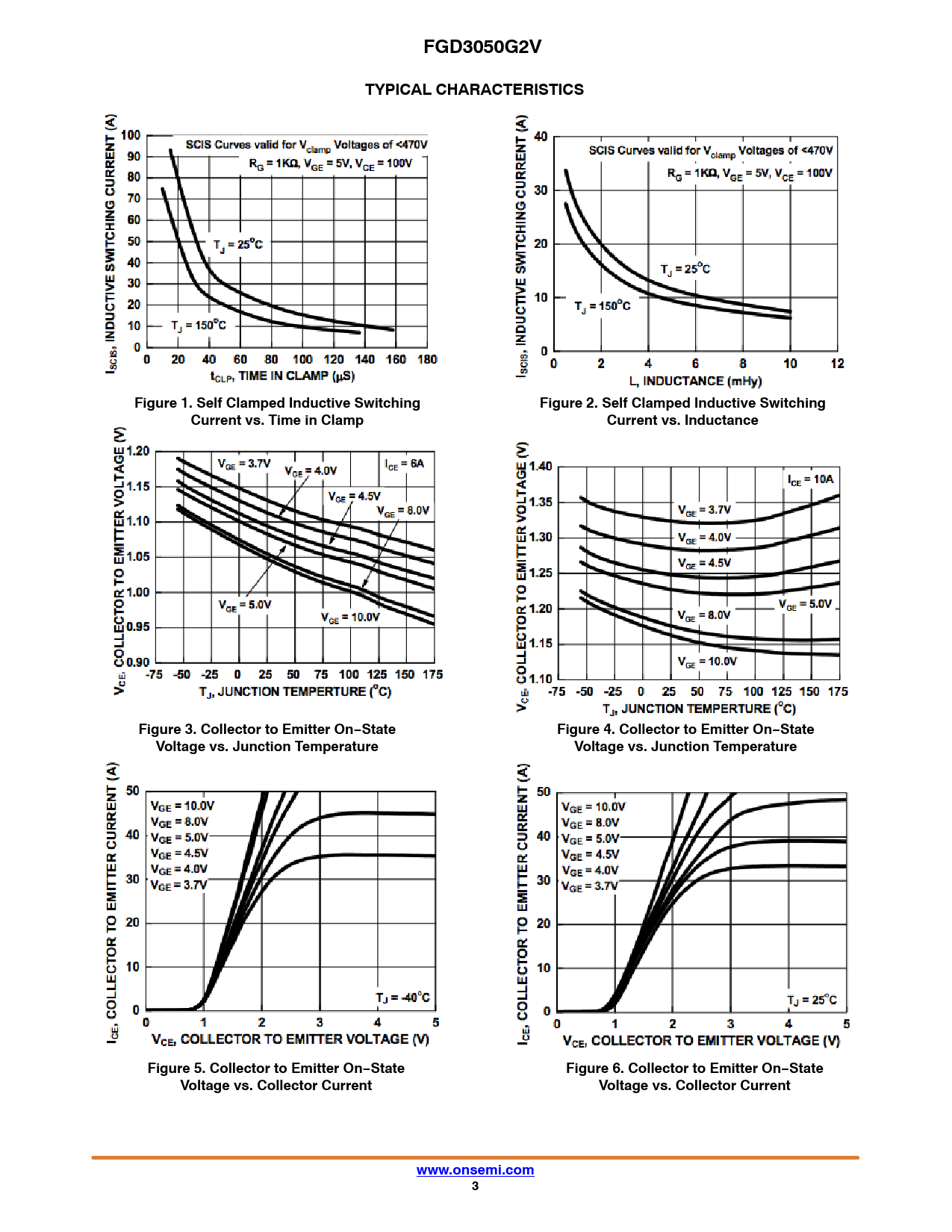

FGD3050G2V. TYPICAL CHARACTERISTICS. Figure 1. Self Clamped Inductive Switching. Figure 2. Self Clamped Inductive Switching
该数据表的模型线
文件文字版本
FGD3050G2V TYPICAL CHARACTERISTICS Figure 1. Self Clamped Inductive Switching Figure 2. Self Clamped Inductive Switching Current vs. Time in Clamp Current vs. Inductance Figure 3. Collector to Emitter On−State Figure 4. Collector to Emitter On−State Voltage vs. Junction Temperature Voltage vs. Junction Temperature Figure 5. Collector to Emitter On−State Figure 6. Collector to Emitter On−State Voltage vs. Collector Current Voltage vs. Collector Current www.onsemi.com 3
