Datasheet FGD3050G2V (ON Semiconductor) - 5
| 制造商 | ON Semiconductor |
| 描述 | Ignition IGBT, 500V, 27A, 1.3V, 300mJ, DPAK EcoSPARK II, N-Channel Ignition |
| 页数 / 页 | 9 / 5 — FGD3050G2V. TYPICAL CHARACTERISTICS. Figure 13. Switching Time vs. … |
| 文件格式/大小 | PDF / 602 Kb |
| 文件语言 | 英语 |
FGD3050G2V. TYPICAL CHARACTERISTICS. Figure 13. Switching Time vs. Junction. Figure 14. Capacitance vs. Collector to
该数据表的模型线
文件文字版本
FGD3050G2V TYPICAL CHARACTERISTICS
(continued)

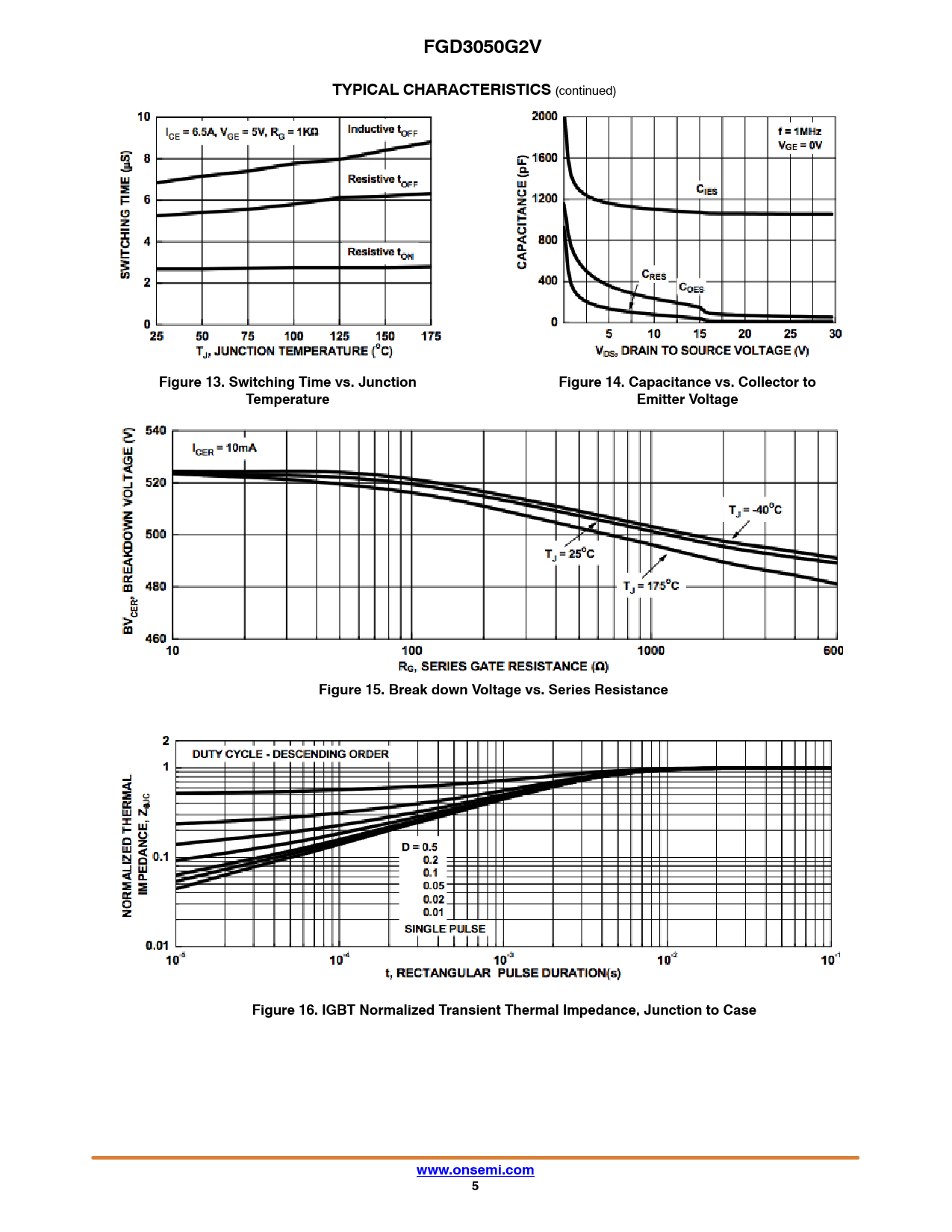

Figure 13. Switching Time vs. Junction Figure 14. Capacitance vs. Collector to Temperature Emitter Voltage Figure 15. Break down Voltage vs. Series Resistance Figure 16. IGBT Normalized Transient Thermal Impedance, Junction to Case www.onsemi.com 5
