NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET in LFPAK. Package outline
该数据表的模型线
文件文字版本

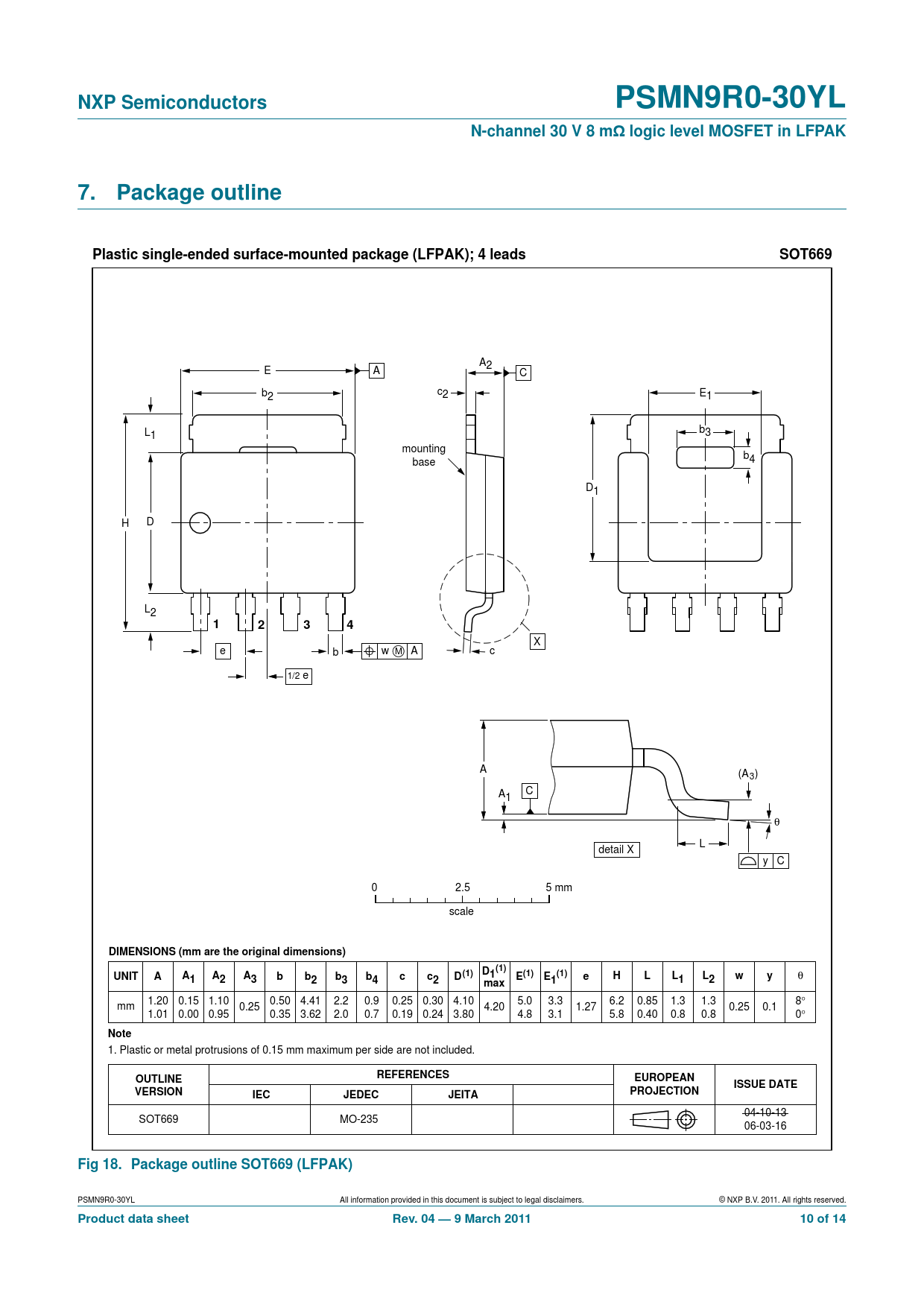

NXP Semiconductors PSMN9R0-30YL N-channel 30 V 8 mΩ logic level MOSFET in LFPAK 7. Package outline Plastic single-ended surface-mounted package (LFPAK); 4 leads SOT669
A2 E A C b c E 2 2 1 b L 3 1 mounting b base 4 D1 H D L2
1 2 3 4
X e b w M A c 1/2 e A (A ) 3 C A1 θ L detail X y C 0 2.5 5 mm scale
DIMENSIONS (mm are the original dimensions) D (1) UNIT A A A (1) 1 2 A b b b b c c D(1) 1 E(1) E e 3 2 3 4 2 H L L L 1 1 2 w y
θ
max
1.20 0.15 1.10 0.50 4.41 2.2 0.9 0.25 0.30 4.10 5.0 3.3 6.2 0.85 1.3 1.3 8° mm 0.25 4.20 1.27 0.25 0.1 1.01 0.00 0.95 0.35 3.62 2.0 0.7 0.19 0.24 3.80 4.8 3.1 5.8 0.40 0.8 0.8 0°
Note
1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.
REFERENCES OUTLINE EUROPEAN ISSUE DATE VERSION PROJECTION IEC JEDEC JEITA
04-10-13 SOT669 MO-235 06-03-16
Fig 18. Package outline SOT669 (LFPAK)
PSMN9R0-30YL All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 04 — 9 March 2011 10 of 14
