Datasheet PSMN9R0-30YL (Nexperia) - 9
| 制造商 | Nexperia |
| 描述 | N-channel 30 V 8 mΩ logic level MOSFET in LFPAK |
| 页数 / 页 | 14 / 9 — NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET … |
| 修订版 | 10201103 |
| 文件格式/大小 | PDF / 394 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET in LFPAK
该数据表的模型线
文件文字版本
NXP Semiconductors PSMN9R0-30YL N-channel 30 V 8 mΩ logic level MOSFET in LFPAK
003aac536 60 IS (A) 40 20 Tj = 150 °C 25 °C 0 0.0 0.2 0.4 0.6 0.8 1.0 VSD (V)

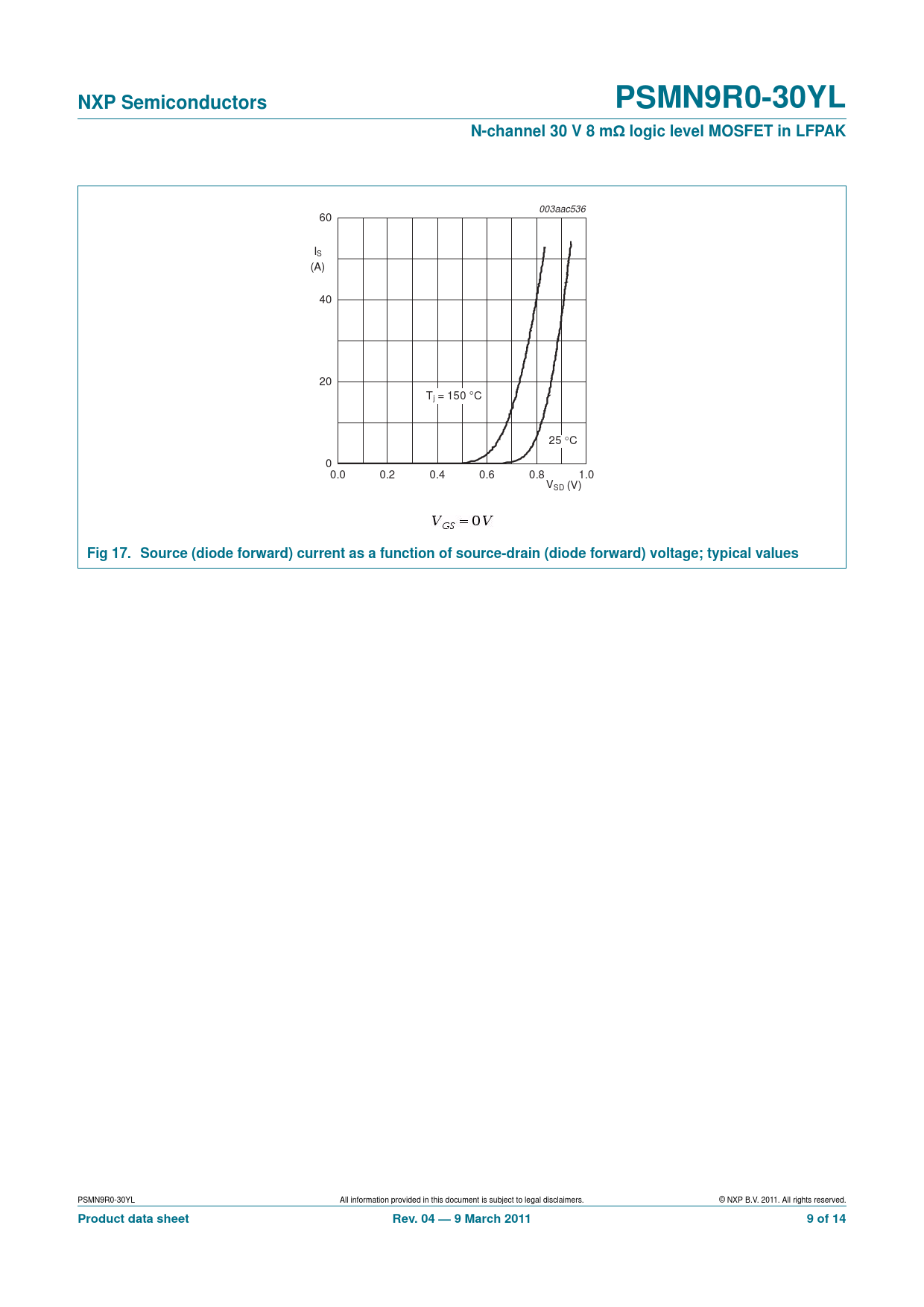

Fig 17. Source (diode forward) current as a function of source-drain (diode forward) voltage; typical values
