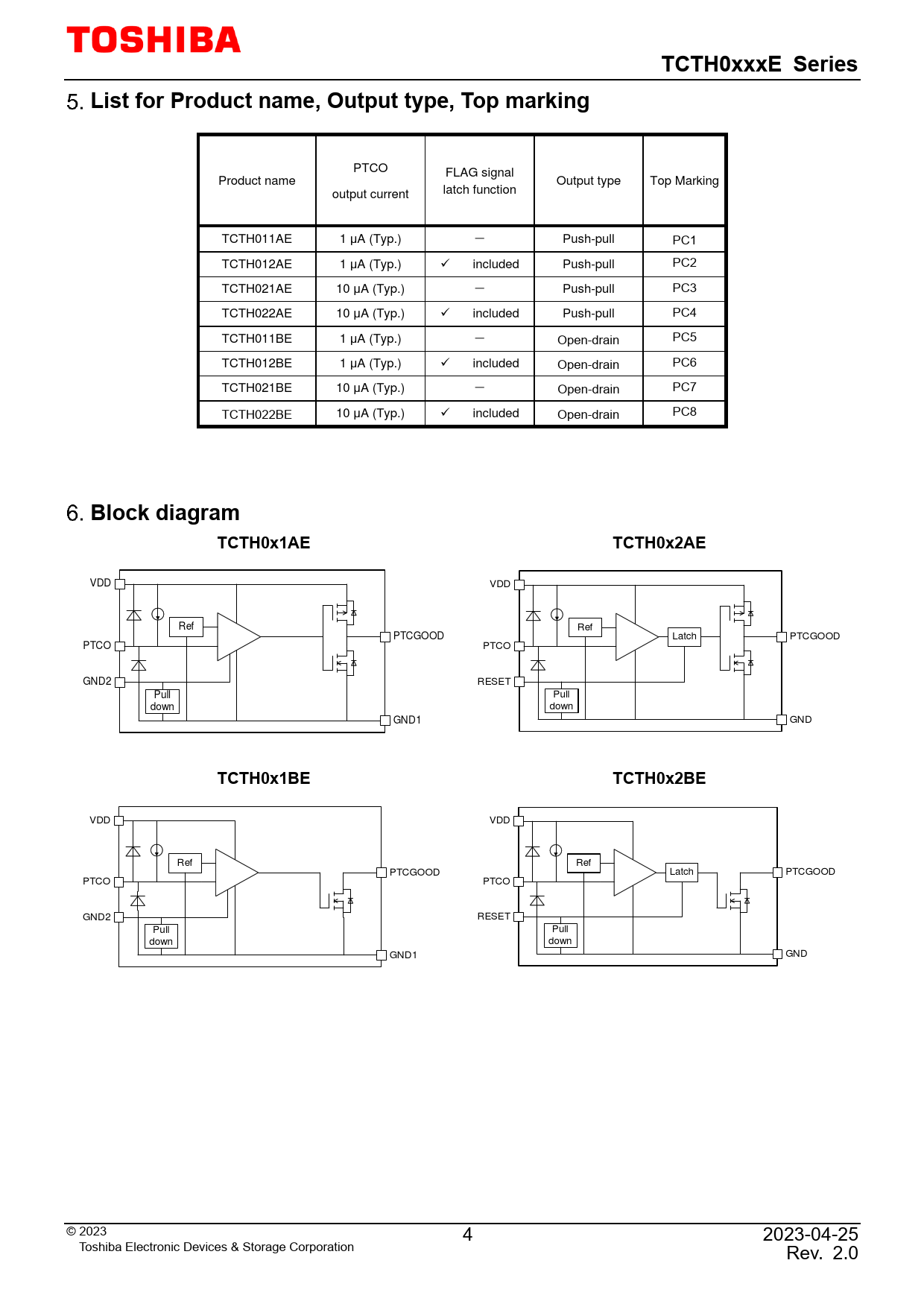

TCTH0xxxE Series List for Product name, Output type, Top marking
PTCO FLAG signal Product name Output type Top Marking output current latch function TCTH011AE 1 μA (Typ.) － Push-pull PC1 TCTH012AE 1 μA (Typ.) ✓ included Push-pull PC2 TCTH021AE 10 μA (Typ.) － Push-pull PC3 TCTH022AE 10 μA (Typ.) ✓ included Push-pull PC4 TCTH011BE 1 μA (Typ.) － Open-drain PC5 TCTH012BE 1 μA (Typ.) ✓ included Open-drain PC6 TCTH021BE 10 μA (Typ.) － Open-drain PC7 TCTH022BE 10 μA (Typ.) ✓ included Open-drain PC8
Block diagram TCTH0x1AE TCTH0x2AE
VDD VDD Ref Ref PTCGOOD Latch PTCGOOD PTCO PTCO GND2 RESET Pull Pull down down GND1 GND
TCTH0x1BE TCTH0x2BE
VDD VDD Ref Ref PTCGOOD Latch PTCGOOD PTCO PTCO GND2 RESET Pull Pull down down GND1 GND © 2023 4 2023-04-25 Toshiba Electronic Devices & Storage Corporation Rev. 2.0
