Datasheet TCTH011AE, TCTH012AE, TCTH021AE, TCTH022AE, TCTH011BE, TCTH012BE, TCTH021BE, TCTH022BE (Toshiba) - 3
| 制造商 | Toshiba |
| 描述 | CMOS Linear Integrated Circuit Silicon Monolithic |
| 页数 / 页 | 14 / 3 — TCTH0xxxE Series. Pin Assignment (Top view). Top Marking. (Top view) |
| 文件格式/大小 | PDF / 909 Kb |
| 文件语言 | 英语 |
TCTH0xxxE Series. Pin Assignment (Top view). Top Marking. (Top view)
该数据表的模型线
文件文字版本

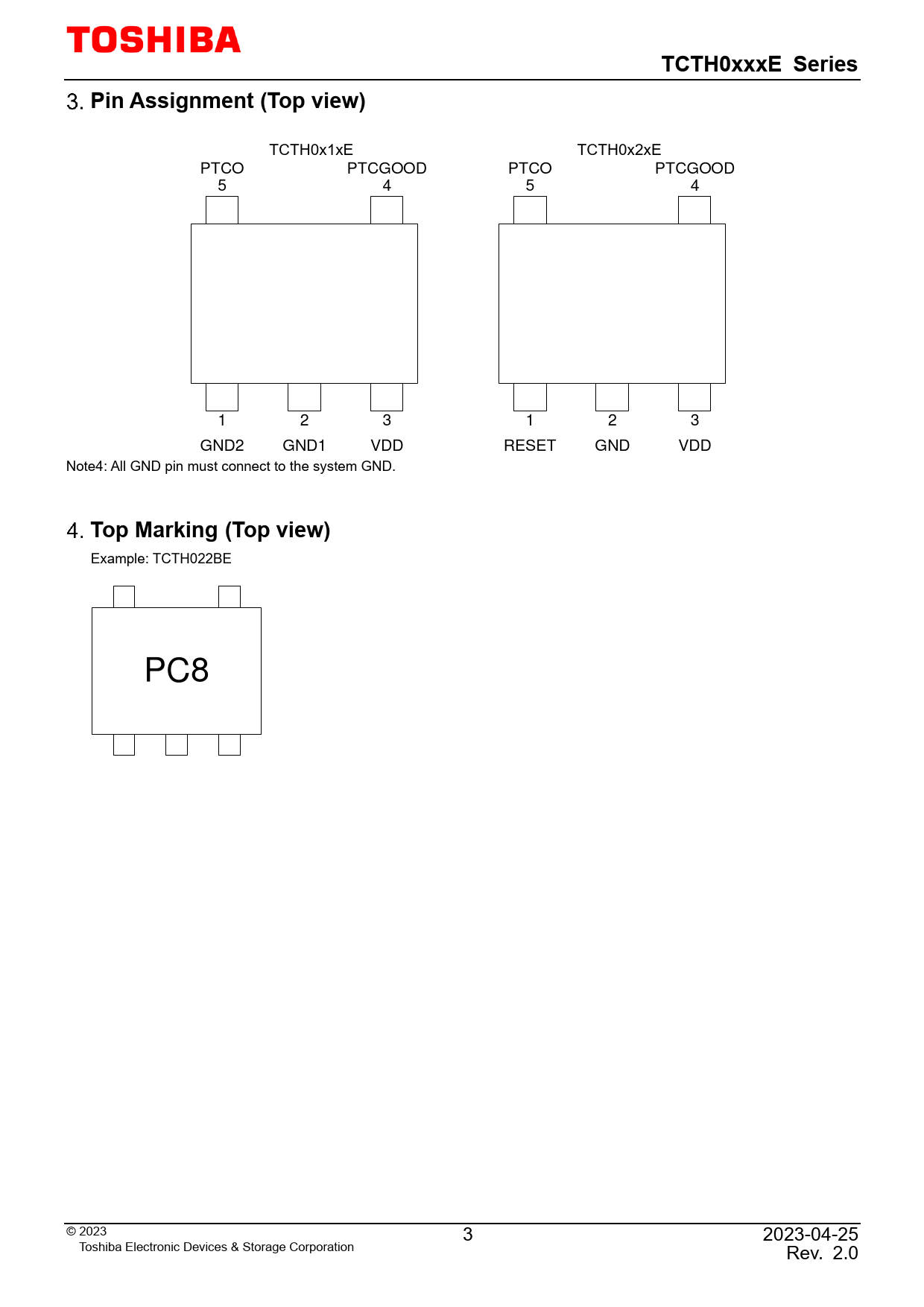

TCTH0xxxE Series Pin Assignment (Top view)
TCTH0x1xE TCTH0x2xE PTCO PTCGOOD PTCO PTCGOOD 5 4 5 4 1 2 3 1 2 3 GND2 GND1 VDD RESET GND VDD Note4: All GND pin must connect to the system GND.
Top Marking (Top view)
Example: TCTH022BE PC8 © 2023 3 2023-04-25 Toshiba Electronic Devices & Storage Corporation Rev. 2.0
TCTH0x1xE TCTH0x2xE PTCO PTCGOOD PTCO PTCGOOD 5 4 5 4 1 2 3 1 2 3 GND2 GND1 VDD RESET GND VDD Note4: All GND pin must connect to the system GND.
Top Marking (Top view)
Example: TCTH022BE PC8 © 2023 3 2023-04-25 Toshiba Electronic Devices & Storage Corporation Rev. 2.0
