Datasheet TCTH011AE, TCTH012AE, TCTH021AE, TCTH022AE, TCTH011BE, TCTH012BE, TCTH021BE, TCTH022BE (Toshiba) - 10
| 制造商 | Toshiba |
| 描述 | CMOS Linear Integrated Circuit Silicon Monolithic |
| 页数 / 页 | 14 / 10 — TCTH0xxxE Series. 10.4. Power Dissipation |
| 文件格式/大小 | PDF / 909 Kb |
| 文件语言 | 英语 |
TCTH0xxxE Series. 10.4. Power Dissipation
该数据表的模型线
文件文字版本
TCTH0xxxE Series 10.4. Power Dissipation

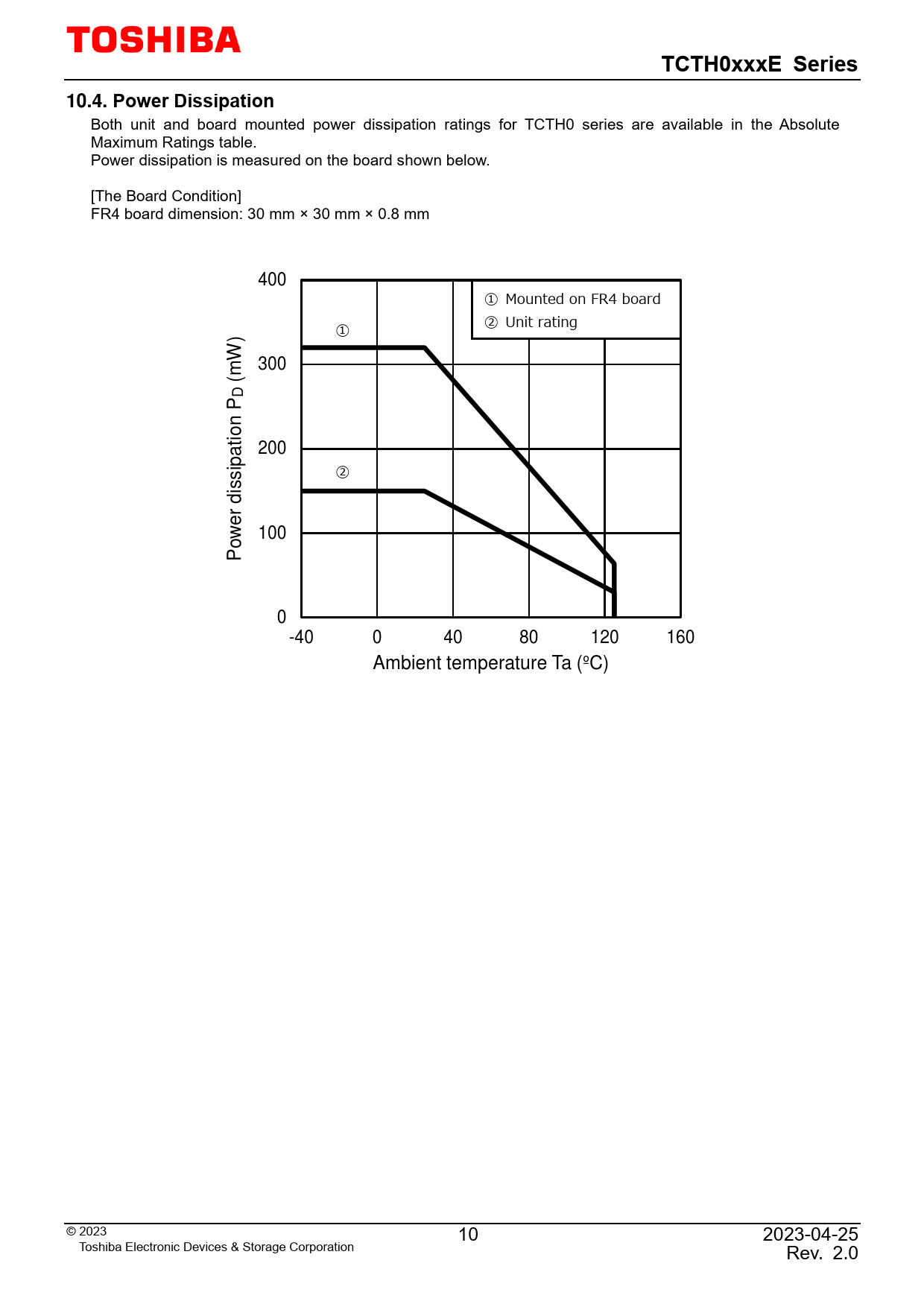

Both unit and board mounted power dissipation ratings for TCTH0 series are available in the Absolute Maximum Ratings table. Power dissipation is measured on the board shown below. [The Board Condition] FR4 board dimension: 30 mm × 30 mm × 0.8 mm 400 ① Mounted on FR4 board ② Unit rating ① ) W 300 (m DPn tio a 200 p ② issi r d e w 100 o P 0 -40 0 40 80 120 160 Ambient temperature Ta (ºC) © 2023 10 2023-04-25 Toshiba Electronic Devices & Storage Corporation Rev. 2.0
