VS-15TQ060-M3. ORDERING INFORMATION TABLE. Device code. VS-. 060. -M3. ORDERING INFORMATION. PREFERRED P/N. BASE QUANTITY
该数据表的模型线
文件文字版本

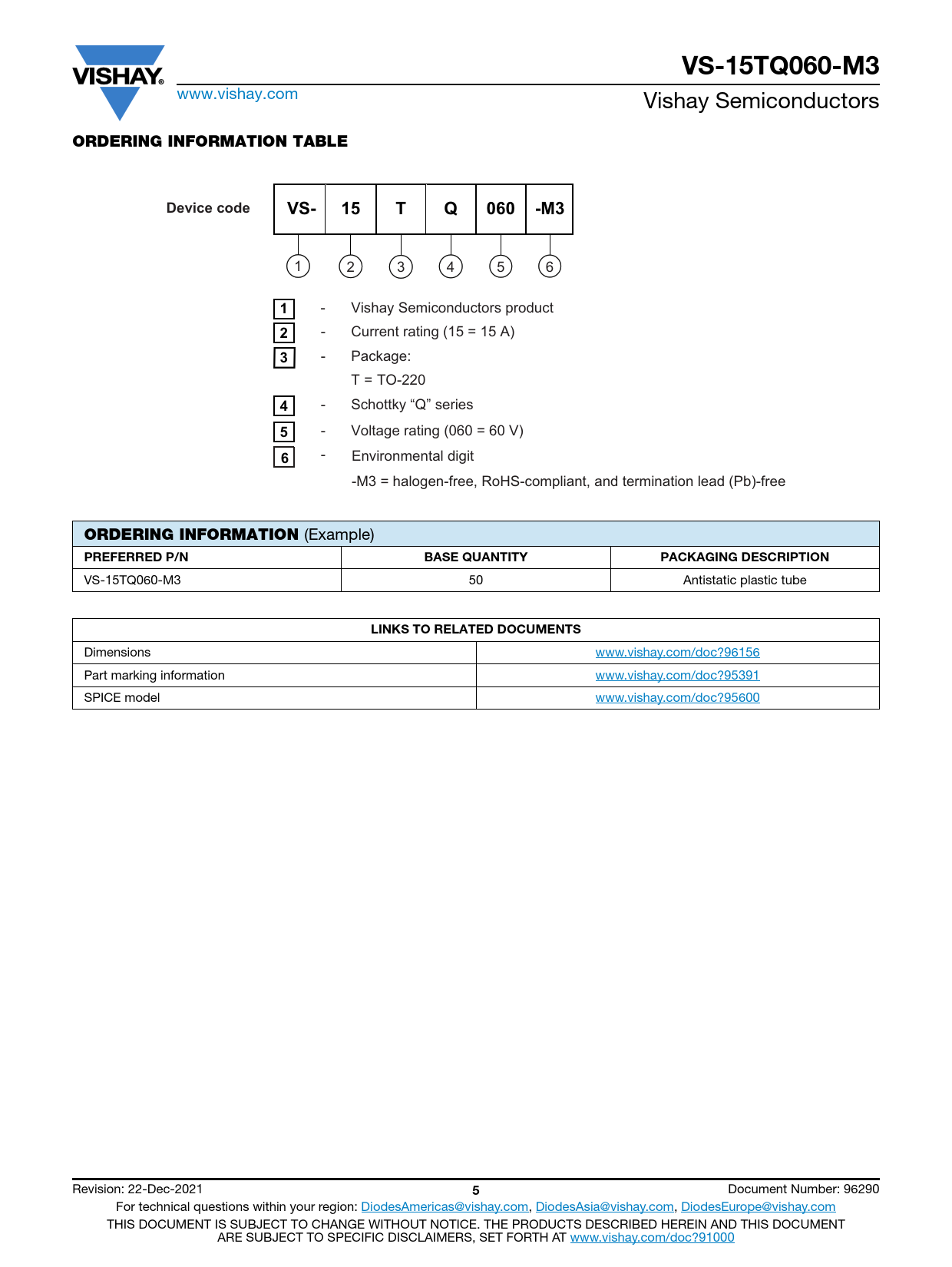

VS-15TQ060-M3
www.vishay.com Vishay Semiconductors
ORDERING INFORMATION TABLE Device code VS- 15 T Q 060 -M3
1 2 3 4 5 6
1
- Vishay Semiconductors product - Current rating (15 = 15 A)
2
- Package:
3
T = TO-220 - Schottky “Q” series
4
- Voltage rating (060 = 60 V)
5
-
6
Environmental digit -M3 = halogen-free, RoHS-compliant, and termination lead (Pb)-free
ORDERING INFORMATION
(Example)
PREFERRED P/N BASE QUANTITY PACKAGING DESCRIPTION
VS-15TQ060-M3 50 Antistatic plastic tube
LINKS TO RELATED DOCUMENTS
Dimensions www.vishay.com/doc?96156 Part marking information www.vishay.com/doc?95391 SPICE model www.vishay.com/doc?95600 Revision: 22-Dec-2021
5
Document Number: 96290 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
