Datasheet VS-15TQ060-M3 (Vishay) - 2
| 制造商 | Vishay |
| 描述 | High Performance Schottky Rectifier, 15 A |
| 页数 / 页 | 7 / 2 — VS-15TQ060-M3. ELECTRICAL SPECIFICATIONS PARAMETER. SYMBOL. TEST … |
| 文件格式/大小 | PDF / 161 Kb |
| 文件语言 | 英语 |

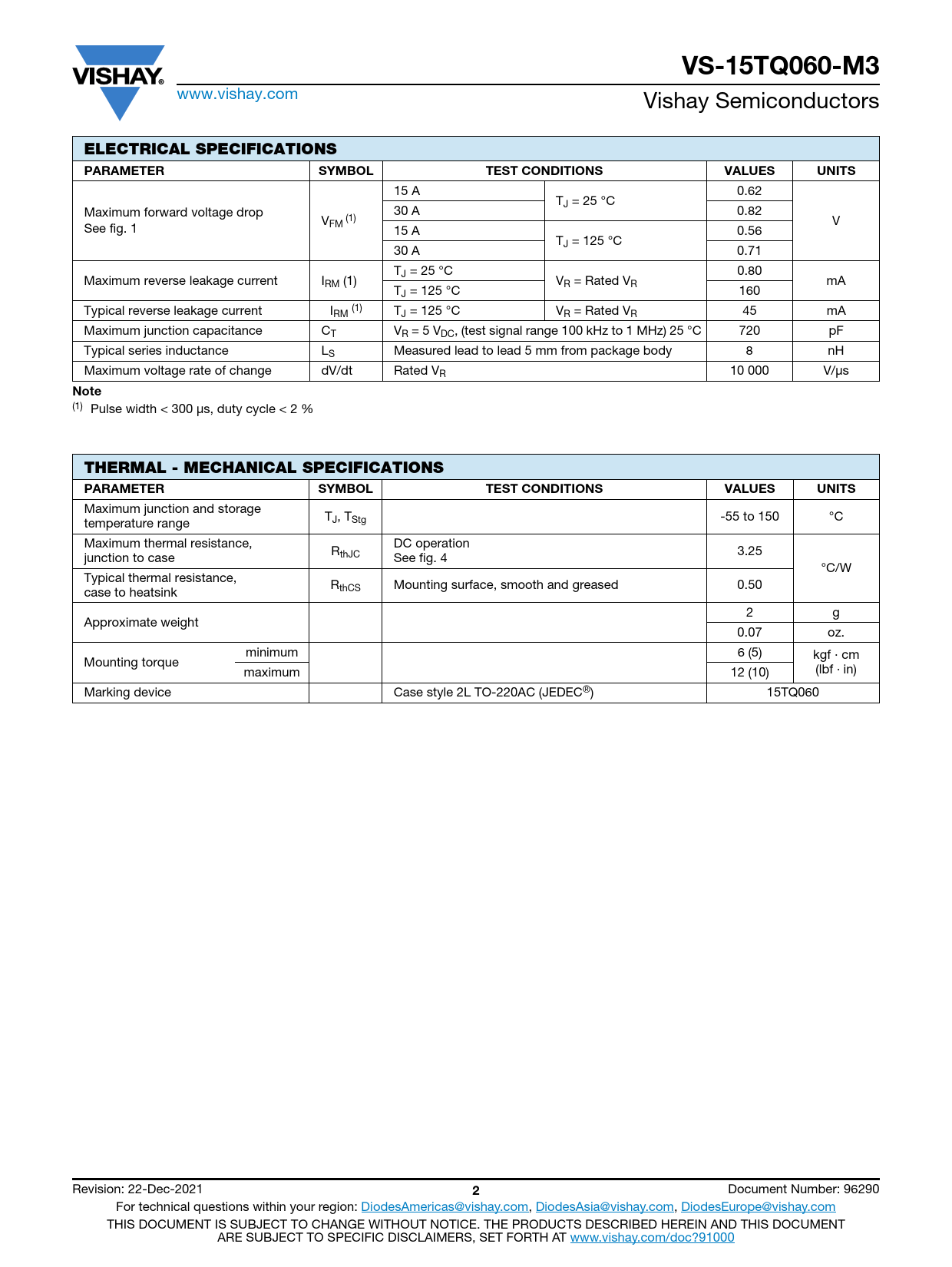

VS-15TQ060-M3. ELECTRICAL SPECIFICATIONS PARAMETER. SYMBOL. TEST CONDITIONS. VALUES. UNITS. Note
该数据表的模型线
文件文字版本
VS-15TQ060-M3
www.vishay.com Vishay Semiconductors
ELECTRICAL SPECIFICATIONS PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
15 A 0.62 TJ = 25 °C Maximum forward voltage drop 30 A 0.82 V (1) V See fig. 1 FM 15 A 0.56 TJ = 125 °C 30 A 0.71 TJ = 25 °C 0.80 Maximum reverse leakage current IRM (1) VR = Rated VR mA TJ = 125 °C 160 Typical reverse leakage current IRM (1) TJ = 125 °C VR = Rated VR 45 mA Maximum junction capacitance CT VR = 5 VDC, (test signal range 100 kHz to 1 MHz) 25 °C 720 pF Typical series inductance LS Measured lead to lead 5 mm from package body 8 nH Maximum voltage rate of change dV/dt Rated VR 10 000 V/μs
Note
(1) Pulse width < 300 μs, duty cycle < 2 %
THERMAL - MECHANICAL SPECIFICATIONS PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum junction and storage T temperature range J, TStg -55 to 150 °C Maximum thermal resistance, DC operation R 3.25 junction to case thJC See fig. 4 °C/W Typical thermal resistance, R case to heatsink thCS Mounting surface, smooth and greased 0.50 2 g Approximate weight 0.07 oz. minimum 6 (5) kgf · cm Mounting torque (lbf · in) maximum 12 (10) Marking device Case style 2L TO-220AC (JEDEC®) 15TQ060 Revision: 22-Dec-2021
