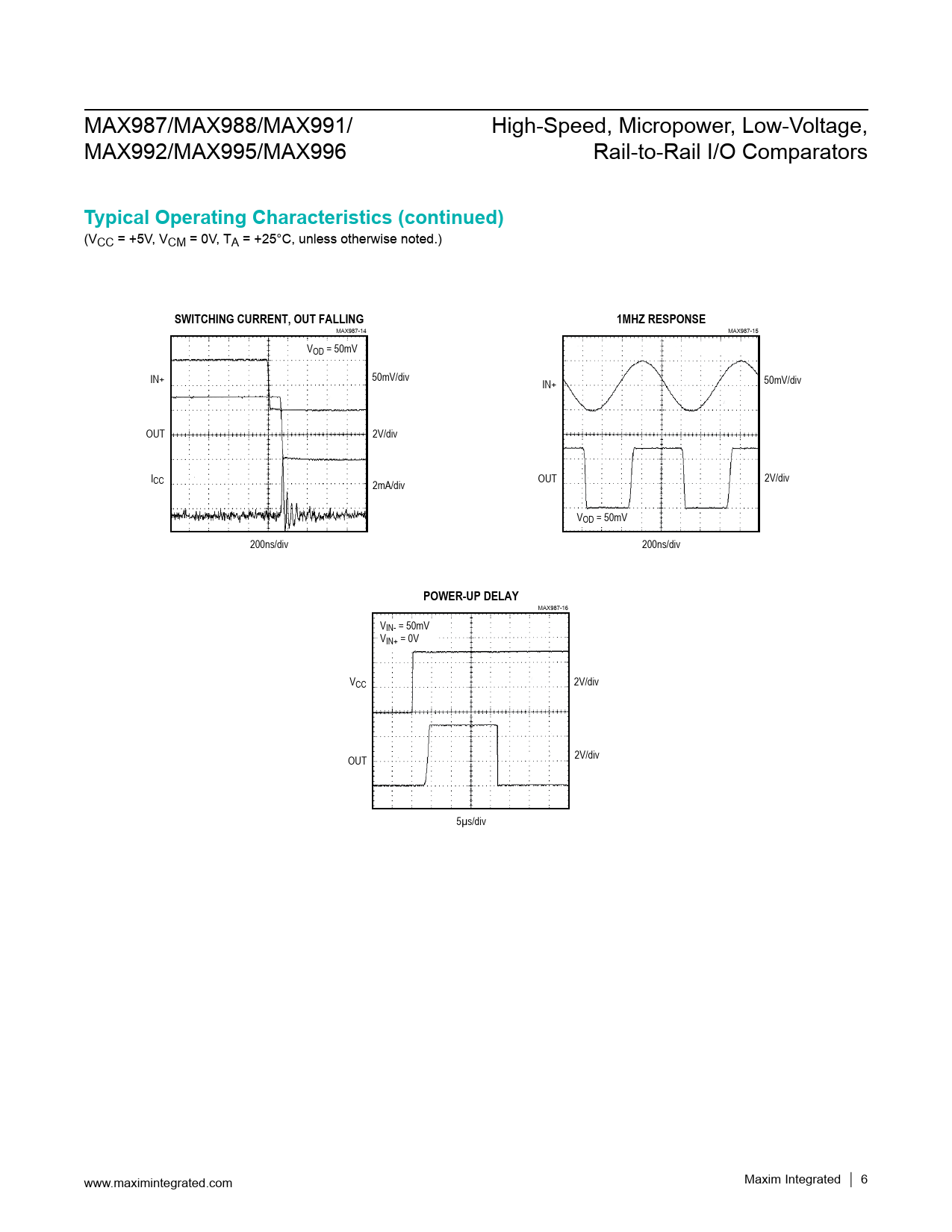

MAX987/MAX988/MAX991/ High-Speed, Micropower, Low-Voltage, MAX992/MAX995/MAX996 Rail-to-Rail I/O Comparators
Typical Operating Characteristics (continued)
(VCC = +5V, VCM = 0V, TA = +25°C, unless otherwise noted.)
SWITCHING CURRENT, OUT FALLING 1MHZ RESPONSE
MAX987-14 MAX987-15 VOD = 50mV IN+ 50mV/div IN+ 50mV/div OUT 2V/div ICC 2mA/div OUT 2V/div VOD = 50mV 200ns/div 200ns/div
POWER-UP DELAY
MAX987-16 VIN- = 50mV VIN+ = 0V VCC 2V/div OUT 2V/div 5µs/div www.maximintegrated.com Maxim Integrated │
