MAX987/MAX988/MAX991/. High-Speed, Micropower, Low-Voltage,. MAX992/MAX995/MAX996. Rail-to-Rail I/O Comparators

Datasheet MAX987, MAX988, MAX991, MAX992, MAX995, MAX996 Maxim

该数据表的模型线

文件文字版本

link to page 1 link to page 11

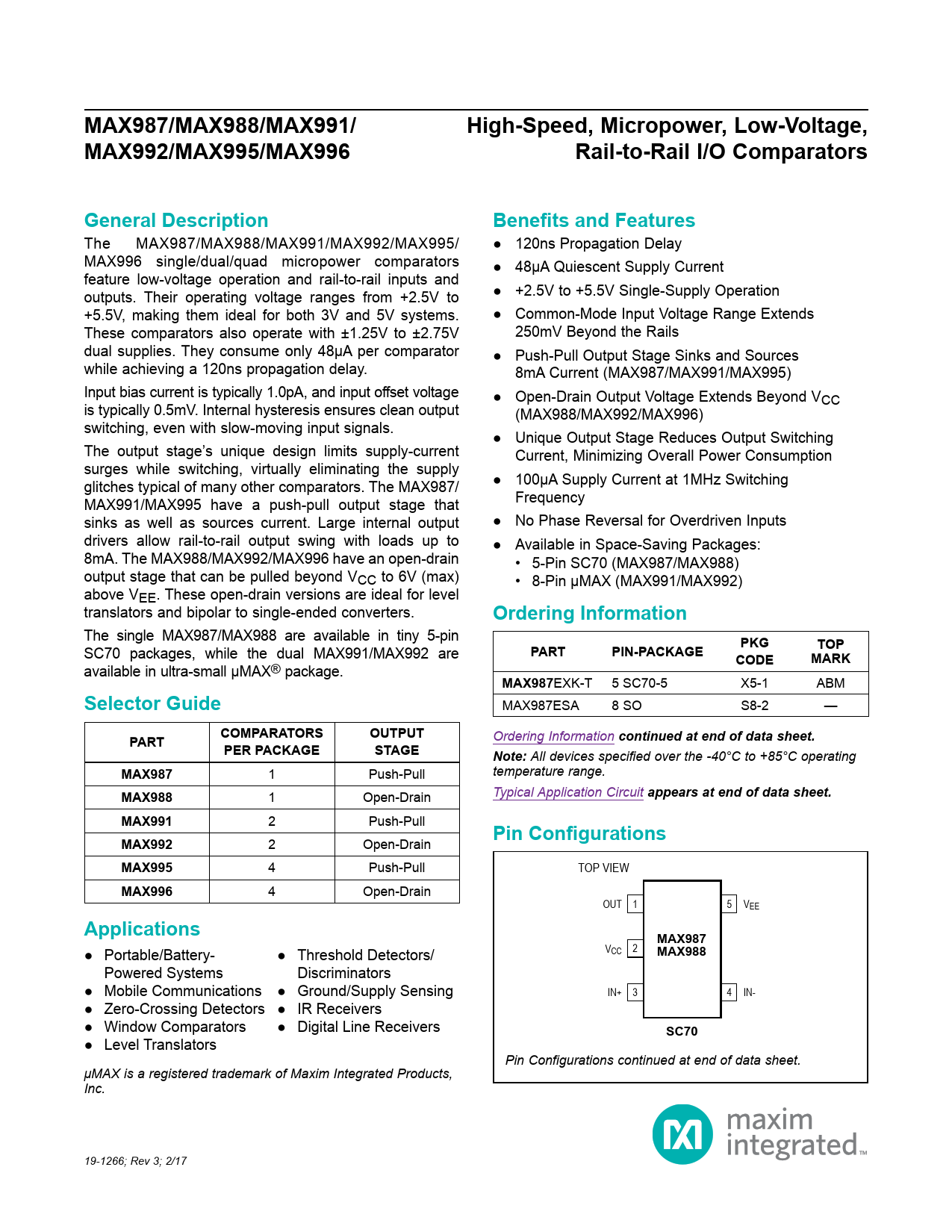

MAX987/MAX988/MAX991/ High-Speed, Micropower, Low-Voltage, MAX992/MAX995/MAX996 Rail-to-Rail I/O Comparators General Description Benefits and Features
The MAX987/MAX988/MAX991/MAX992/MAX995/ ● 120ns Propagation Delay MAX996 single/dual/quad micropower comparators ● 48μA Quiescent Supply Current feature low-voltage operation and rail-to-rail inputs and outputs. Their operating voltage ranges from +2.5V to ● +2.5V to +5.5V Single-Supply Operation +5.5V, making them ideal for both 3V and 5V systems. ● Common-Mode Input Voltage Range Extends These comparators also operate with ±1.25V to ±2.75V 250mV Beyond the Rails dual supplies. They consume only 48μA per comparator ● Push-Pull Output Stage Sinks and Sources while achieving a 120ns propagation delay. 8mA Current (MAX987/MAX991/MAX995) Input bias current is typically 1.0pA, and input offset voltage ● Open-Drain Output Voltage Extends Beyond V is typically 0.5mV. Internal hysteresis ensures clean output CC (MAX988/MAX992/MAX996) switching, even with slow-moving input signals. ● Unique Output Stage Reduces Output Switching The output stage’s unique design limits supply-current Current, Minimizing Overall Power Consumption surges while switching, virtually eliminating the supply glitches typical of many other comparators. The MAX987/ ● 100μA Supply Current at 1MHz Switching MAX991/MAX995 have a push-pull output stage that Frequency sinks as well as sources current. Large internal output ● No Phase Reversal for Overdriven Inputs drivers allow rail-to-rail output swing with loads up to ● Available in Space-Saving Packages: 8mA. The MAX988/MAX992/MAX996 have an open-drain • 5-Pin SC70 (MAX987/MAX988) output stage that can be pulled beyond VCC to 6V (max) • 8-Pin μMAX (MAX991/MAX992) above VEE. These open-drain versions are ideal for level translators and bipolar to single-ended converters.
Ordering Information
The single MAX987/MAX988 are available in tiny 5-pin SC70 packages, while the dual MAX991/MAX992 are
PART PIN-PACKAGE PKG TOP CODE MARK
available in ultra-small μMAX® package.
MAX987
EXK-T 5 SC70-5 X5-1 ABM
Selector Guide
MAX987ESA 8 SO S8-2 —
OUTPUT
Ordering Information
continued at end of data sheet. PART COMPARATORS PER PACKAGE STAGE Note:
All devices specified over the -40°C to +85°C operating
MAX987
1 Push-Pull temperature range. Typical Application Circuit
appears at end of data sheet. MAX988
1 Open-Drain
MAX991
2 Push-Pull
Pin Configurations MAX992
2 Open-Drain
MAX995
4 Push-Pull TOP VIEW
MAX996
4 Open-Drain OUT 1 5 VEE
Applications MAX987
● Portable/Battery- ● Threshold Detectors/ VCC 2
MAX988
Powered Systems Discriminators ● Mobile Communications ● Ground/Supply Sensing IN+ 3 4 IN- ● Zero-Crossing Detectors ● IR Receivers ● Window Comparators ● Digital Line Receivers
SC70
● Level Translators Pin Configurations continued at end of data sheet. μMAX is a registered trademark of Maxim Integrated Products, Inc. 19-1266; Rev 3; 2/17
