Datasheet MAX987, MAX988, MAX991, MAX992, MAX995, MAX996 (Maxim) - 5
| 制造商 | Maxim |
| 描述 | High-Speed, Micropower, Low-Voltage, Rail-to-Rail I/O Comparators |
| 页数 / 页 | 13 / 5 — Typical Operating Characteristics (continued). PROPAGATION DELAY. vs. … |
| 文件格式/大小 | PDF / 1.7 Mb |
| 文件语言 | 英语 |

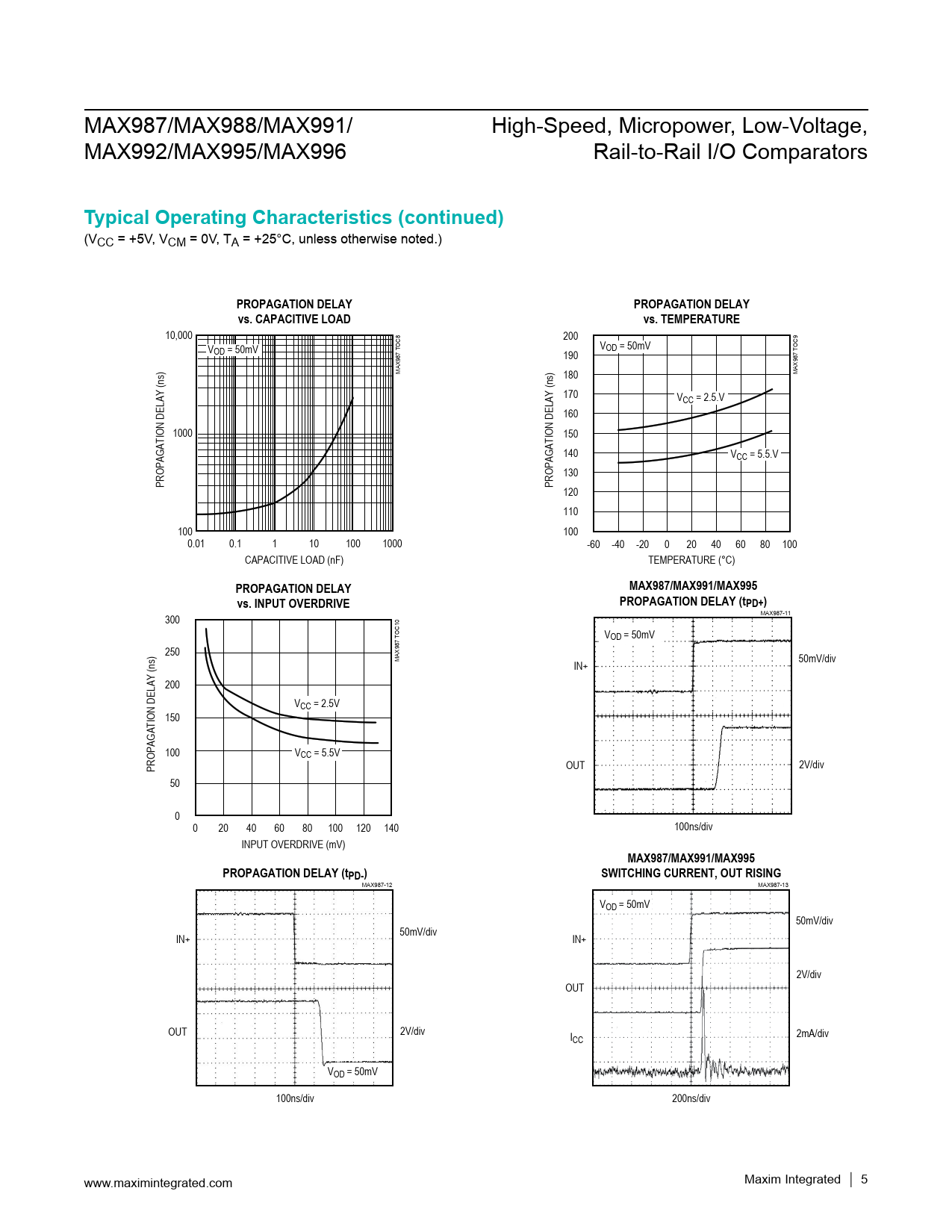

Typical Operating Characteristics (continued). PROPAGATION DELAY. vs. CAPACITIVE LOAD. vs. TEMPERATURE. MAX987/MAX991/MAX995
该数据表的模型线
文件文字版本
MAX987/MAX988/MAX991/ High-Speed, Micropower, Low-Voltage, MAX992/MAX995/MAX996 Rail-to-Rail I/O Comparators
Typical Operating Characteristics (continued)
(VCC = +5V, VCM = 0V, TA = +25°C, unless otherwise noted.)
PROPAGATION DELAY PROPAGATION DELAY vs. CAPACITIVE LOAD vs. TEMPERATURE
10,000 200 V V OD = 50mV 190 OD = 50mV MAX987 TOC8 180 MAX987 TOC9 170 VCC = 2.5.V 160 1000 150 140 VCC = 5.5.V 130 PROPAGATION DELAY (ns) PROPAGATION DELAY (ns) 120 110 100 100 0.01 0.1 1 10 100 1000 -60 -40 -20 0 20 40 60 80 100 CAPACITIVE LOAD (nF) TEMPERATURE (°C)
PROPAGATION DELAY MAX987/MAX991/MAX995 vs. INPUT OVERDRIVE PROPAGATION DELAY (tPD+)
300 MAX987-11 VOD = 50mV 250 MAX987 TOC10 IN+ 50mV/div 200 VCC = 2.5V 150 100 VCC = 5.5V PROPAGATION DELAY (ns) OUT 2V/div 50 0 0 20 40 60 80 100 120 140 100ns/div INPUT OVERDRIVE (mV)
MAX987/MAX991/MAX995 PROPAGATION DELAY (tPD-) SWITCHING CURRENT, OUT RISING
MAX987-12 MAX987-13 VOD = 50mV 50mV/div 50mV/div IN+ IN+ 2V/div OUT OUT 2V/div I 2mA/div CC VOD = 50mV 100ns/div 200ns/div www.maximintegrated.com Maxim Integrated │
