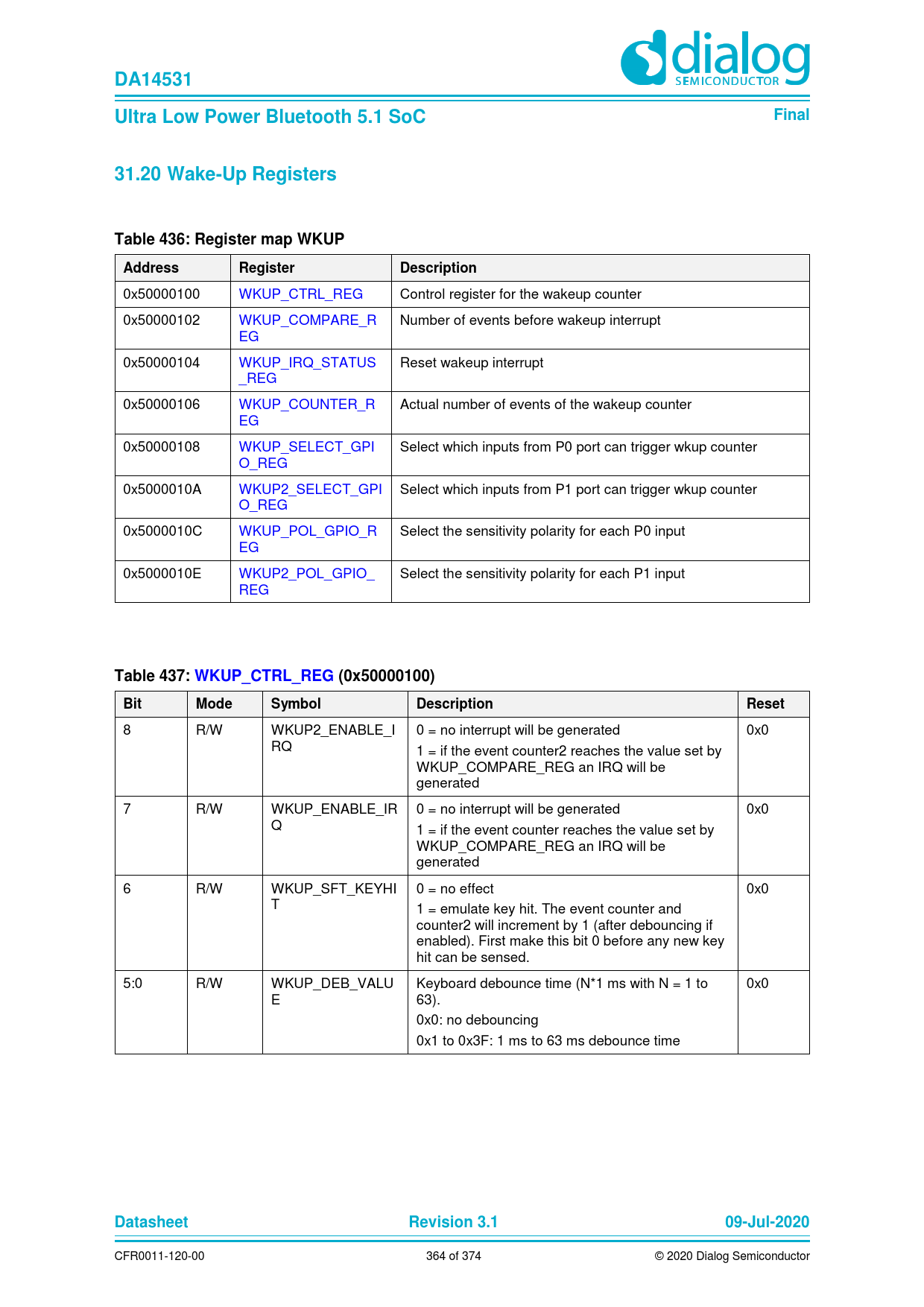

DA14531 Ultra Low Power Bluetooth 5.1 SoC Final 31.20 Wake-Up Registers Table 436: Register map WKUP Address Register Description
0x50000100 WKUP_CTRL_REG Control register for the wakeup counter 0x50000102 WKUP_COMPARE_R Number of events before wakeup interrupt EG 0x50000104 WKUP_IRQ_STATUS Reset wakeup interrupt _REG 0x50000106 WKUP_COUNTER_R Actual number of events of the wakeup counter EG 0x50000108 WKUP_SELECT_GPI Select which inputs from P0 port can trigger wkup counter O_REG 0x5000010A WKUP2_SELECT_GPI Select which inputs from P1 port can trigger wkup counter O_REG 0x5000010C WKUP_POL_GPIO_R Select the sensitivity polarity for each P0 input EG 0x5000010E WKUP2_POL_GPIO_ Select the sensitivity polarity for each P1 input REG
Table 437: WKUP_CTRL_REG (0x50000100) Bit Mode Symbol Description Reset
8 R/W WKUP2_ENABLE_I 0 = no interrupt will be generated 0x0 RQ 1 = if the event counter2 reaches the value set by WKUP_COMPARE_REG an IRQ will be generated 7 R/W WKUP_ENABLE_IR 0 = no interrupt will be generated 0x0 Q 1 = if the event counter reaches the value set by WKUP_COMPARE_REG an IRQ will be generated 6 R/W WKUP_SFT_KEYHI 0 = no effect 0x0 T 1 = emulate key hit. The event counter and counter2 will increment by 1 (after debouncing if enabled). First make this bit 0 before any new key hit can be sensed. 5:0 R/W WKUP_DEB_VALU Keyboard debounce time (N*1 ms with N = 1 to 0x0 E 63). 0x0: no debouncing 0x1 to 0x3F: 1 ms to 63 ms debounce time
Datasheet Revision 3.1 09-Jul-2020
