Datasheet PI6CB332000 (Diodes) - 4

制造商Diodes
描述20-Output PCIe G4 Clock Buffer With On-Chip Termination
页数 / 页21 / 4 — PI6CB332000. Pin Description Cont. Pin Number Pin Name. Type. Description
文件格式/大小PDF / 1.5 Mb
文件语言英语

PI6CB332000. Pin Description Cont. Pin Number Pin Name. Type. Description

PI6CB332000 Pin Description Cont Pin Number Pin Name Type Description

该数据表的模型线

文件文字版本

A product Line of Diodes Incorporated

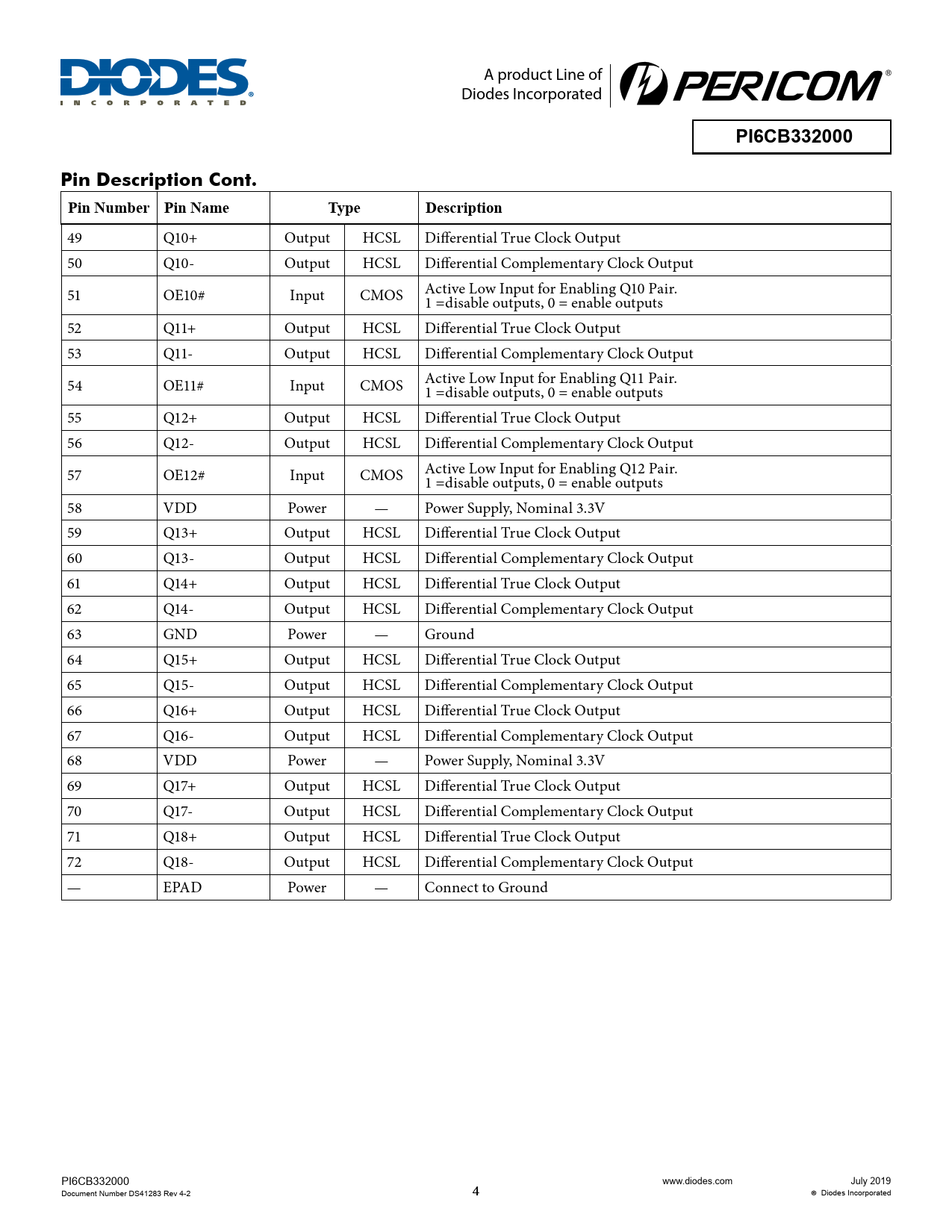

PI6CB332000 Pin Description Cont. Pin Number Pin Name Type Description
49 Q10+ Output HCSL Differential True Clock Output 50 Q10- Output HCSL Differential Complementary Clock Output 51 OE10# Input CMOS Active Low Input for Enabling Q10 Pair. 1 =disable outputs, 0 = enable outputs 52 Q11+ Output HCSL Differential True Clock Output 53 Q11- Output HCSL Differential Complementary Clock Output 54 OE11# Input CMOS Active Low Input for Enabling Q11 Pair. 1 =disable outputs, 0 = enable outputs 55 Q12+ Output HCSL Differential True Clock Output 56 Q12- Output HCSL Differential Complementary Clock Output 57 OE12# Input CMOS Active Low Input for Enabling Q12 Pair. 1 =disable outputs, 0 = enable outputs 58 VDD Power — Power Supply, Nominal 3.3V 59 Q13+ Output HCSL Differential True Clock Output 60 Q13- Output HCSL Differential Complementary Clock Output 61 Q14+ Output HCSL Differential True Clock Output 62 Q14- Output HCSL Differential Complementary Clock Output 63 GND Power — Ground 64 Q15+ Output HCSL Differential True Clock Output 65 Q15- Output HCSL Differential Complementary Clock Output 66 Q16+ Output HCSL Differential True Clock Output 67 Q16- Output HCSL Differential Complementary Clock Output 68 VDD Power — Power Supply, Nominal 3.3V 69 Q17+ Output HCSL Differential True Clock Output 70 Q17- Output HCSL Differential Complementary Clock Output 71 Q18+ Output HCSL Differential True Clock Output 72 Q18- Output HCSL Differential Complementary Clock Output — EPAD Power — Connect to Ground PI6CB332000 www.diodes.com July 2019 Document Number DS41283 Rev 4-2 4 Diodes Incorporated
