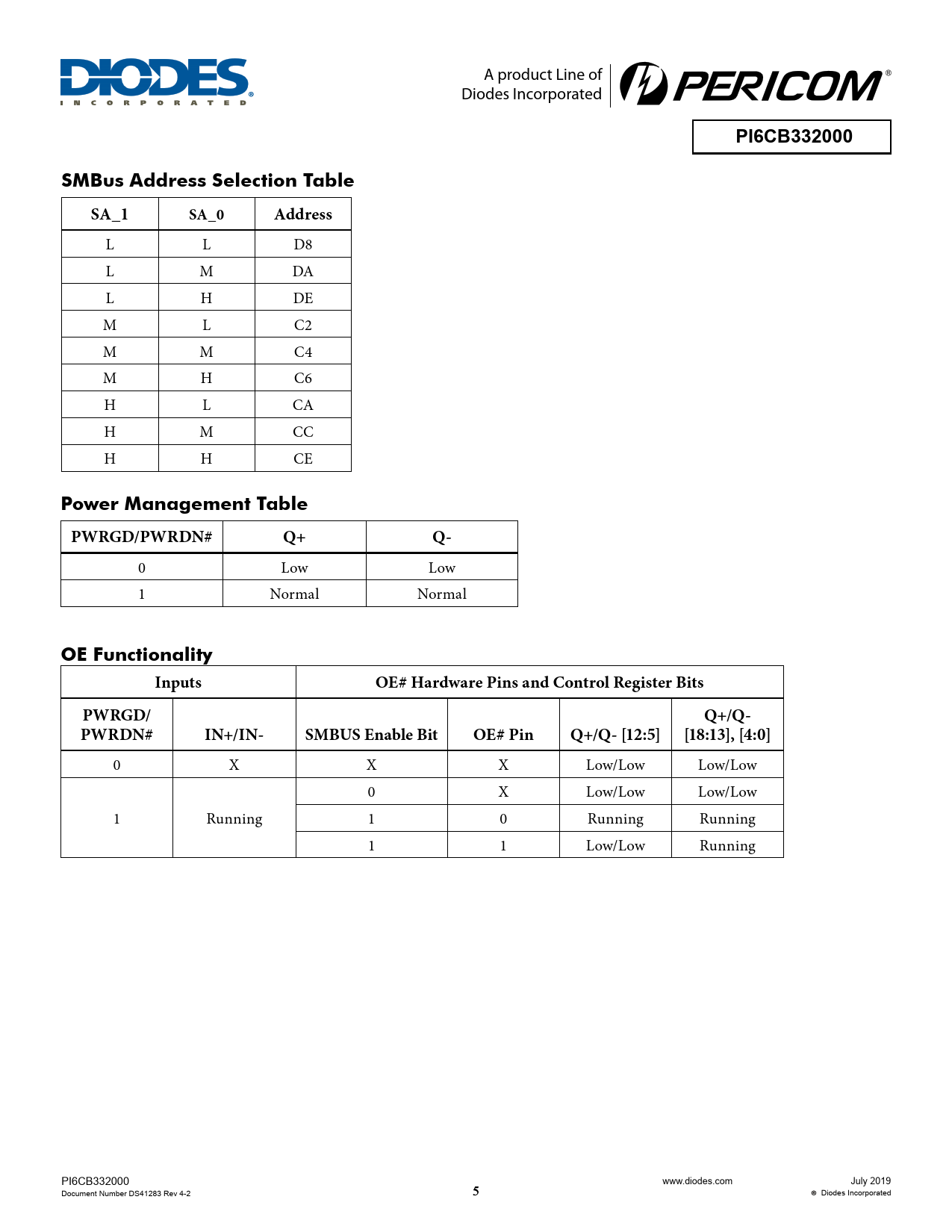

PI6CB332000. SMBus Address Selection Table. SA_1. SA_0. Address. Power Management Table. PWRGD/PWRDN#. OE Functionality. Inputs
该数据表的模型线
文件文字版本
A product Line of Diodes Incorporated
PI6CB332000 SMBus Address Selection Table SA_1 SA_0 Address
L L D8 L M DA L H DE M L C2 M M C4 M H C6 H L CA H M CC H H CE
Power Management Table PWRGD/PWRDN# Q+ Q-
0 Low Low 1 Normal Normal
OE Functionality Inputs OE# Hardware Pins and Control Register Bits PWRGD/ Q+/Q- PWRDN# IN+/IN- SMBUS Enable Bit OE# Pin Q+/Q- [12:5] [18:13], [4:0]
0 X X X Low/Low Low/Low 0 X Low/Low Low/Low 1 Running 1 0 Running Running 1 1 Low/Low Running PI6CB332000 www.diodes.com July 2019 Document Number DS41283 Rev 4-2 5 Diodes Incorporated
