Datasheet PI6CB332000 (Diodes) - 3

制造商Diodes
描述20-Output PCIe G4 Clock Buffer With On-Chip Termination
页数 / 页21 / 3 — PI6CB332000. Pin Description Cont. Pin Number Pin Name. Type. Description
文件格式/大小PDF / 1.5 Mb
文件语言英语

PI6CB332000. Pin Description Cont. Pin Number Pin Name. Type. Description

PI6CB332000 Pin Description Cont Pin Number Pin Name Type Description

该数据表的模型线

文件文字版本

A product Line of Diodes Incorporated
PI6CB332000 Pin Description Cont. Pin Number Pin Name Type Description

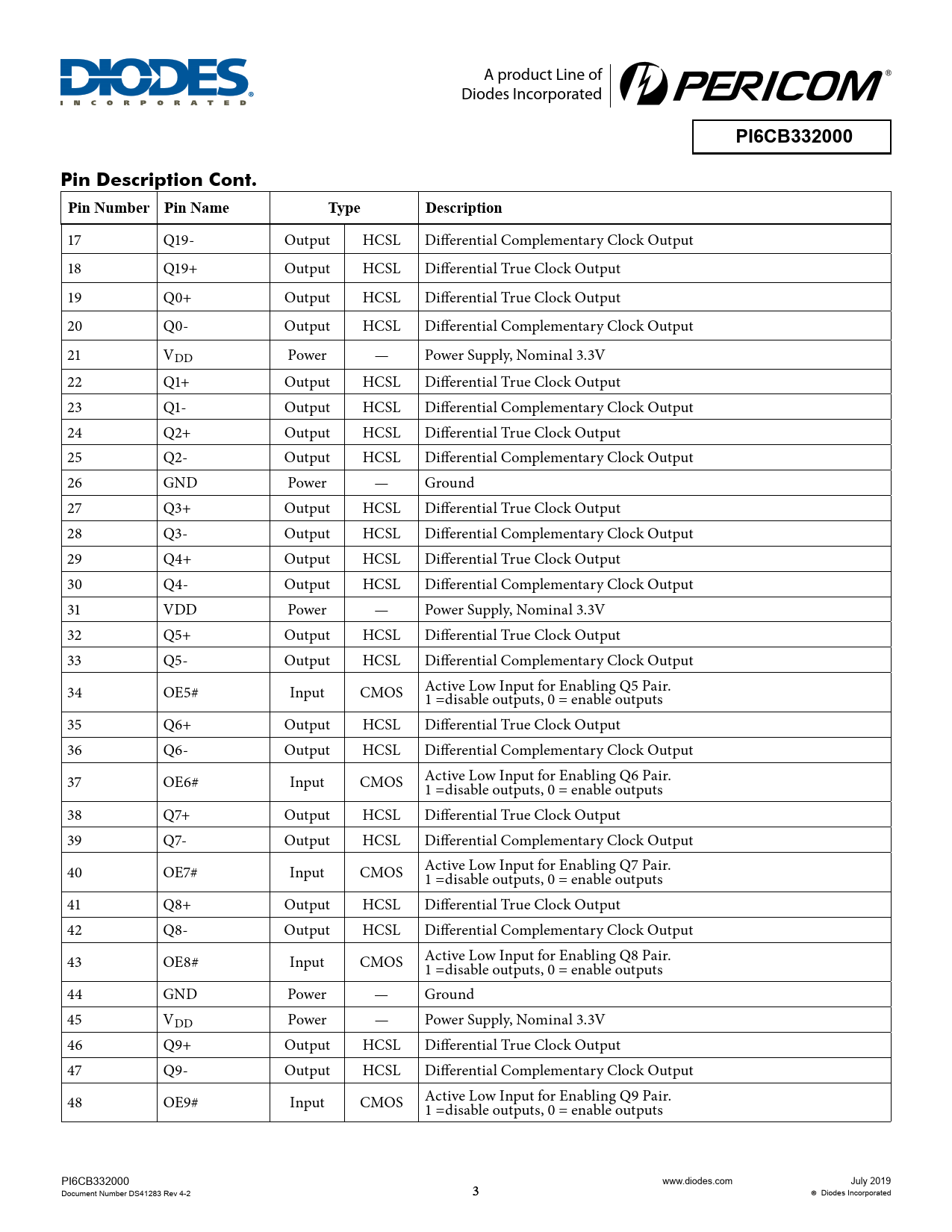

17 Q19- Output HCSL Differential Complementary Clock Output 18 Q19+ Output HCSL Differential True Clock Output 19 Q0+ Output HCSL Differential True Clock Output 20 Q0- Output HCSL Differential Complementary Clock Output 21 VDD Power — Power Supply, Nominal 3.3V 22 Q1+ Output HCSL Differential True Clock Output 23 Q1- Output HCSL Differential Complementary Clock Output 24 Q2+ Output HCSL Differential True Clock Output 25 Q2- Output HCSL Differential Complementary Clock Output 26 GND Power — Ground 27 Q3+ Output HCSL Differential True Clock Output 28 Q3- Output HCSL Differential Complementary Clock Output 29 Q4+ Output HCSL Differential True Clock Output 30 Q4- Output HCSL Differential Complementary Clock Output 31 VDD Power — Power Supply, Nominal 3.3V 32 Q5+ Output HCSL Differential True Clock Output 33 Q5- Output HCSL Differential Complementary Clock Output 34 OE5# Input CMOS Active Low Input for Enabling Q5 Pair. 1 =disable outputs, 0 = enable outputs 35 Q6+ Output HCSL Differential True Clock Output 36 Q6- Output HCSL Differential Complementary Clock Output 37 OE6# Input CMOS Active Low Input for Enabling Q6 Pair. 1 =disable outputs, 0 = enable outputs 38 Q7+ Output HCSL Differential True Clock Output 39 Q7- Output HCSL Differential Complementary Clock Output 40 OE7# Input CMOS Active Low Input for Enabling Q7 Pair. 1 =disable outputs, 0 = enable outputs 41 Q8+ Output HCSL Differential True Clock Output 42 Q8- Output HCSL Differential Complementary Clock Output 43 OE8# Input CMOS Active Low Input for Enabling Q8 Pair. 1 =disable outputs, 0 = enable outputs 44 GND Power — Ground 45 VDD Power — Power Supply, Nominal 3.3V 46 Q9+ Output HCSL Differential True Clock Output 47 Q9- Output HCSL Differential Complementary Clock Output 48 OE9# Input CMOS Active Low Input for Enabling Q9 Pair. 1 =disable outputs, 0 = enable outputs PI6CB332000 www.diodes.com July 2019 Document Number DS41283 Rev 4-2 3 Diodes Incorporated
