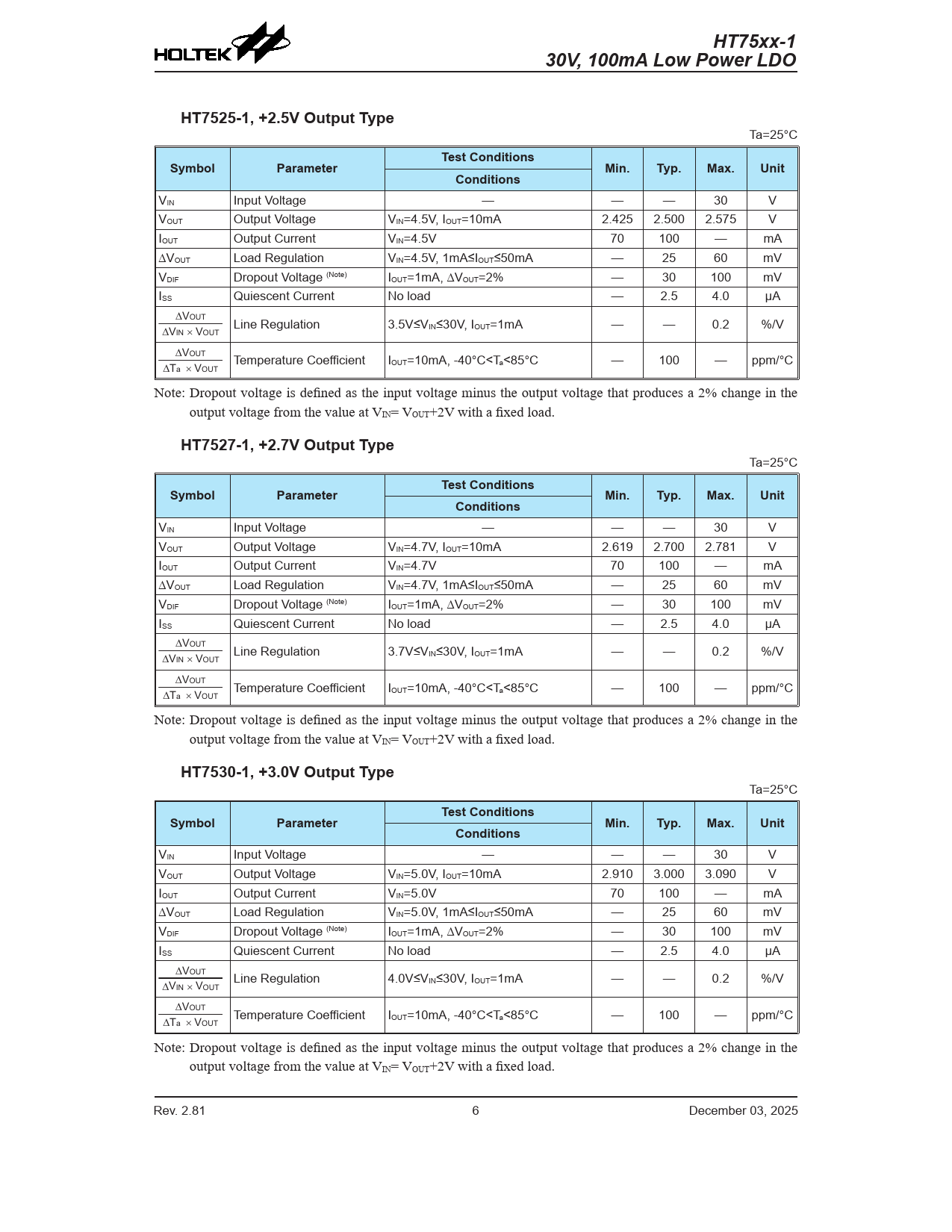

Datasheet HT7521-1 (Holtek) - 6

HT75xx-1 30V, 100mA Low Power LDO HT7525-1, +2.5V Output Type
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit Conditions
VIN Input Voltage — — — 30 V VOUT Output Voltage VIN=4.5V, IOUT=10mA 2.425 2.500 2.575 V IOUT Output Current VIN=4.5V 70 100 — mA ∆VOUT Load Regulation VIN=4.5V, 1mA≤IOUT≤50mA — 25 60 mV VDIF Dropout Voltage (Note) IOUT=1mA, ∆VOUT=2% — 30 100 mV ISS Quiescent Current No load — 2.5 4.0 μA Line Regulation 3.5V≤V IN≤30V, IOUT=1mA — — 0.2 %/V Temperature Coefficient I OUT=10mA, -40°C<Ta<85°C — 100 — ppm/°C Note: Dropout voltage is defined as the input voltage minus the output voltage that produces a 2% change in the output voltage from the value at VIN= VOUT+2V with a fixed load.
HT7527-1, +2.7V Output Type
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit Conditions
VIN Input Voltage — — — 30 V VOUT Output Voltage VIN=4.7V, IOUT=10mA 2.619 2.700 2.781 V IOUT Output Current VIN=4.7V 70 100 — mA ∆VOUT Load Regulation VIN=4.7V, 1mA≤IOUT≤50mA — 25 60 mV VDIF Dropout Voltage (Note) IOUT=1mA, ∆VOUT=2% — 30 100 mV ISS Quiescent Current No load — 2.5 4.0 μA Line Regulation 3.7V≤V IN≤30V, IOUT=1mA — — 0.2 %/V Temperature Coefficient I OUT=10mA, -40°C<Ta<85°C — 100 — ppm/°C Note: Dropout voltage is defined as the input voltage minus the output voltage that produces a 2% change in the output voltage from the value at VIN= VOUT+2V with a fixed load.
HT7530-1, +3.0V Output Type
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit Conditions
VIN Input Voltage — — — 30 V VOUT Output Voltage VIN=5.0V, IOUT=10mA 2.910 3.000 3.090 V IOUT Output Current VIN=5.0V 70 100 — mA ∆VOUT Load Regulation VIN=5.0V, 1mA≤IOUT≤50mA — 25 60 mV VDIF Dropout Voltage (Note) IOUT=1mA, ∆VOUT=2% — 30 100 mV ISS Quiescent Current No load — 2.5 4.0 μA Line Regulation 4.0V≤V IN≤30V, IOUT=1mA — — 0.2 %/V Temperature Coefficient I OUT=10mA, -40°C<Ta<85°C — 100 — ppm/°C Note: Dropout voltage is defined as the input voltage minus the output voltage that produces a 2% change in the output voltage from the value at VIN= VOUT+2V with a fixed load. Rev. 2.81 6 December 03, 2025 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment AbsolutemAximum Ratings Thermal Information Pin Descriptions Electrical Characteristics HT7521-1, +2.1V Output Type HT7523-1, +2.3V Output Type HT7525-1, +2.5V Output Type HT7527-1, +2.7V Output Type HT7530-1, +3.0V Output Type HT7533-1, +3.3V Output Type HT7536-1, +3.6V Output Type HT7540-1, +4.0V Output Type HT7541-1, +4.15V Output Type HT7544-1, +4.4V Output Type HT7550-1, +5.0V Output Type HT7560-1, +6.0V Output Type HT7570-1, +7.0V Output Type HT7580-1, +8.0V Output Type HT7590-1, +9.0V Output Type HT75A0-1, +10.0V Output Type HT75C0-1, +12.0V Output Type Typical Performance Characteristics Application Circuits Basic Circuit High Output Current Positive Voltage Regulator Short-Circuit Protection for Tr1 Circuit for Increasing Output Voltage Circuit for Increasing Output Voltage Constant Current Regulator Dual Supply Package Information 3-pin SOT89 Outline Dimensions 5-pin SOT23 Outline Dimensions
