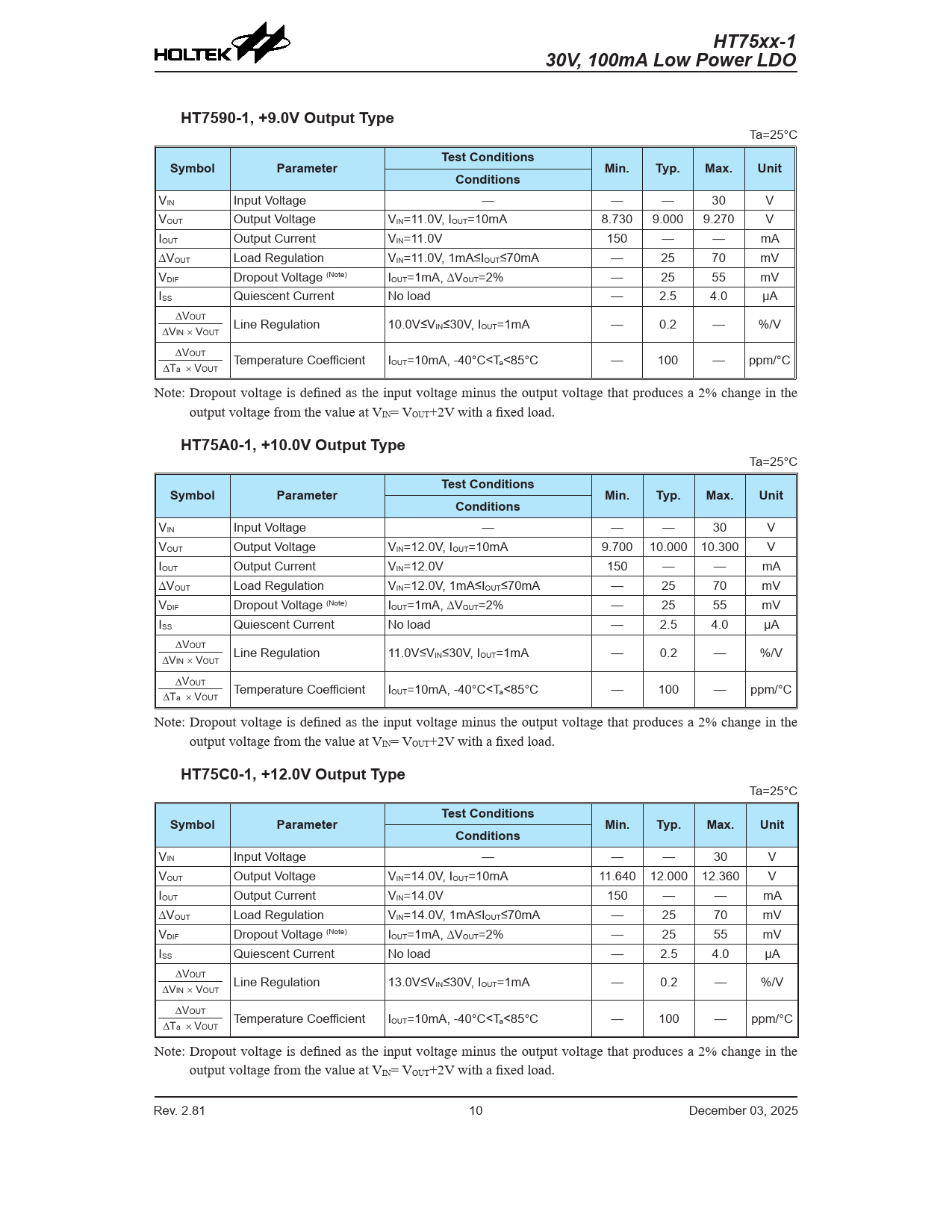

HT75xx-1 30V, 100mA Low Power LDO HT7590-1, +9.0V Output Type
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit Conditions
VIN Input Voltage — — — 30 V VOUT Output Voltage VIN=11.0V, IOUT=10mA 8.730 9.000 9.270 V IOUT Output Current VIN=11.0V 150 — — mA ∆VOUT Load Regulation VIN=11.0V, 1mA≤IOUT≤70mA — 25 70 mV VDIF Dropout Voltage (Note) IOUT=1mA, ∆VOUT=2% — 25 55 mV ISS Quiescent Current No load — 2.5 4.0 μA Line Regulation 10.0V≤V IN≤30V, IOUT=1mA — 0.2 — %/V Temperature Coefficient I OUT=10mA, -40°C<Ta<85°C — 100 — ppm/°C Note: Dropout voltage is defined as the input voltage minus the output voltage that produces a 2% change in the output voltage from the value at VIN= VOUT+2V with a fixed load.
HT75A0-1, +10.0V Output Type
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit Conditions
VIN Input Voltage — — — 30 V VOUT Output Voltage VIN=12.0V, IOUT=10mA 9.700 10.000 10.300 V IOUT Output Current VIN=12.0V 150 — — mA ∆VOUT Load Regulation VIN=12.0V, 1mA≤IOUT≤70mA — 25 70 mV VDIF Dropout Voltage (Note) IOUT=1mA, ∆VOUT=2% — 25 55 mV ISS Quiescent Current No load — 2.5 4.0 μA Line Regulation 11.0V≤V IN≤30V, IOUT=1mA — 0.2 — %/V Temperature Coefficient I OUT=10mA, -40°C<Ta<85°C — 100 — ppm/°C Note: Dropout voltage is defined as the input voltage minus the output voltage that produces a 2% change in the output voltage from the value at VIN= VOUT+2V with a fixed load.
HT75C0-1, +12.0V Output Type
Ta=25°C
Test Conditions Symbol Parameter Min. Typ. Max. Unit Conditions
