Datasheet 2N5060, 2N5061, 2N5062, 2N5064 (ON Semiconductor) - 3
| 制造商 | ON Semiconductor |
| 描述 | Sensitive Gate Silicon Controlled Rectifiers 0.8 A RMS in TO-92 package |
| 页数 / 页 | 9 / 3 — 2N5060 Series. Voltage Current Characteristic of SCR. Symbol. Parameter. … |
| 文件格式/大小 | PDF / 208 Kb |
| 文件语言 | 英语 |

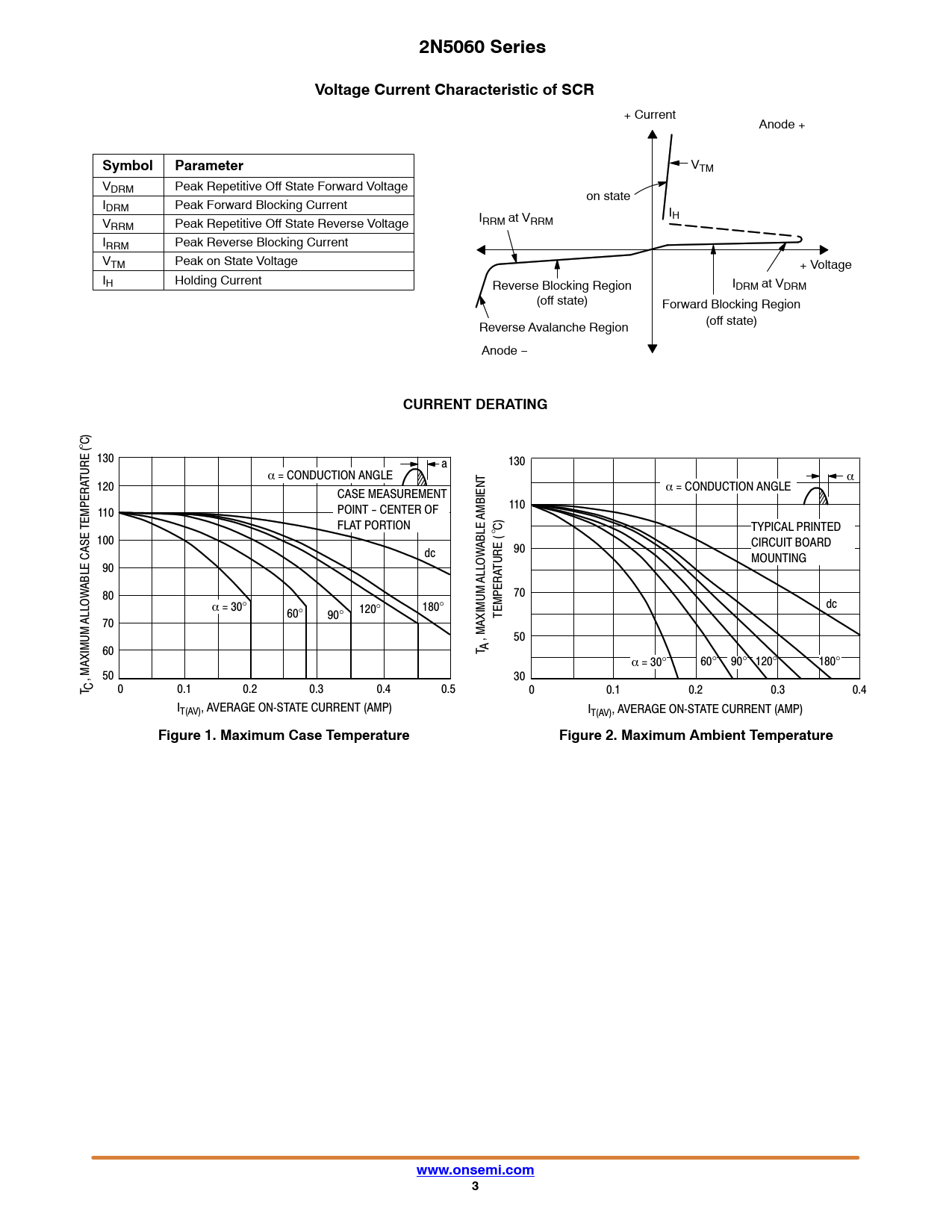

2N5060 Series. Voltage Current Characteristic of SCR. Symbol. Parameter. CURRENT DERATING. Figure 1. Maximum Case Temperature
该数据表的模型线
文件文字版本
2N5060 Series Voltage Current Characteristic of SCR
+ Current Anode +
Symbol Parameter
VTM VDRM Peak Repetitive Off State Forward Voltage on state IDRM Peak Forward Blocking Current IH V I RRM Peak Repetitive Off State Reverse Voltage RRM at VRRM IRRM Peak Reverse Blocking Current VTM Peak on State Voltage + Voltage IH Holding Current Reverse Blocking Region IDRM at VDRM (off state) Forward Blocking Region Reverse Avalanche Region (off state) Anode −
CURRENT DERATING
° 130 a 130 TURE ( C) a = CONDUCTION ANGLE a 120 a = CONDUCTION ANGLE CASE MEASUREMENT 110 110 POINT - CENTER OF TEMPERA FLAT PORTION ° TYPICAL PRINTED 100 ABLE AMBIENT CIRCUIT BOARD dc 90 MOUNTING 90 TURE ( C) ABLE CASE 80 70 dc a = 30° 120° 180° 60° 90° TEMPERA ALLOW 70 , MAXIMUM ALLOW 50 60 T A a = 30° 60° 90° 120° 180° , MAXIMUM 50 30 T C 0 0.1 0.2 0.3 0.4 0.5 0 0.1 0.2 0.3 0.4 IT(AV), AVERAGE ON‐STATE CURRENT (AMP) IT(AV), AVERAGE ON‐STATE CURRENT (AMP)
Figure 1. Maximum Case Temperature Figure 2. Maximum Ambient Temperature www.onsemi.com 3
