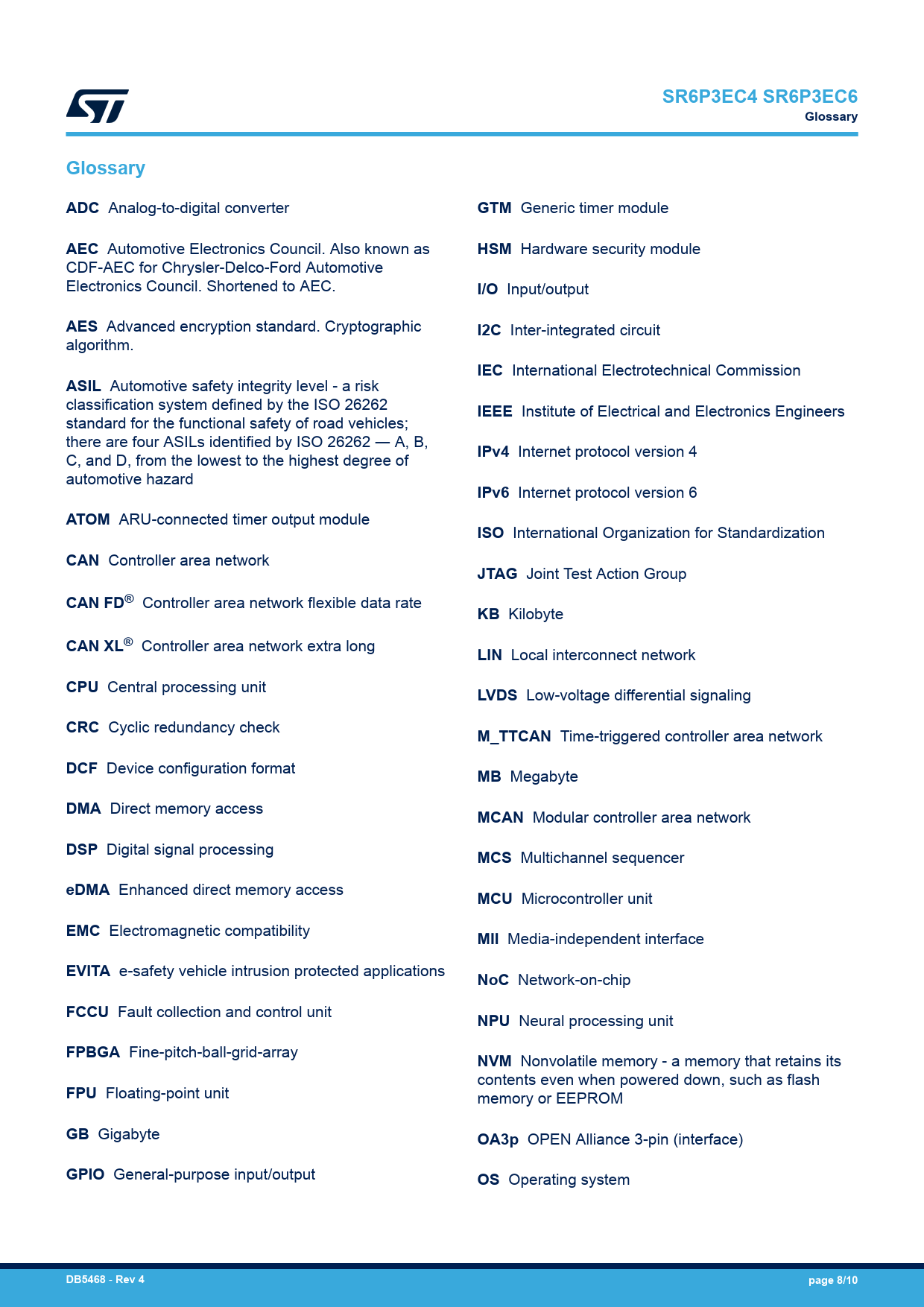

SR6P3EC4 SR6P3EC6 Glossary Glossary ADC
Analog-to-digital converter
GTM
Generic timer module
AEC
Automotive Electronics Council. Also known as
HSM
Hardware security module CDF-AEC for Chrysler-Delco-Ford Automotive Electronics Council. Shortened to AEC.
I/O
Input/output
AES
Advanced encryption standard. Cryptographic
I2C
Inter-integrated circuit algorithm.
IEC
International Electrotechnical Commission
ASIL
Automotive safety integrity level - a risk classification system defined by the ISO 26262
IEEE
Institute of Electrical and Electronics Engineers standard for the functional safety of road vehicles; there are four ASILs identified by ISO 26262 ― A, B, C, and D, from the lowest to the highest degree of
IPv4
Internet protocol version 4 automotive hazard
IPv6
Internet protocol version 6
ATOM
ARU-connected timer output module
ISO
International Organization for Standardization
CAN
Controller area network
JTAG
Joint Test Action Group
CAN FD®
Controller area network flexible data rate
KB
Kilobyte
CAN XL®
Controller area network extra long
LIN
Local interconnect network
CPU
Central processing unit
LVDS
Low-voltage differential signaling
CRC
Cyclic redundancy check
M_TTCAN
Time-triggered controller area network
DCF
Device configuration format
MB
Megabyte
DMA
Direct memory access
MCAN
Modular controller area network
DSP
Digital signal processing
MCS
Multichannel sequencer
eDMA
Enhanced direct memory access
MCU
Microcontroller unit
EMC
Electromagnetic compatibility
MII
Media-independent interface
EVITA
e-safety vehicle intrusion protected applications
NoC
Network-on-chip
FCCU
Fault collection and control unit
NPU
Neural processing unit
FPBGA
Fine-pitch-ball-grid-array
NVM
Nonvolatile memory - a memory that retains its contents even when powered down, such as flash
FPU
Floating-point unit memory or EEPROM
GB
Gigabyte
OA3p
OPEN Alliance 3-pin (interface)
GPIO
General-purpose input/output
OS
Operating system
DB5468
-
Rev 4 page 8/10
