TPD7110F

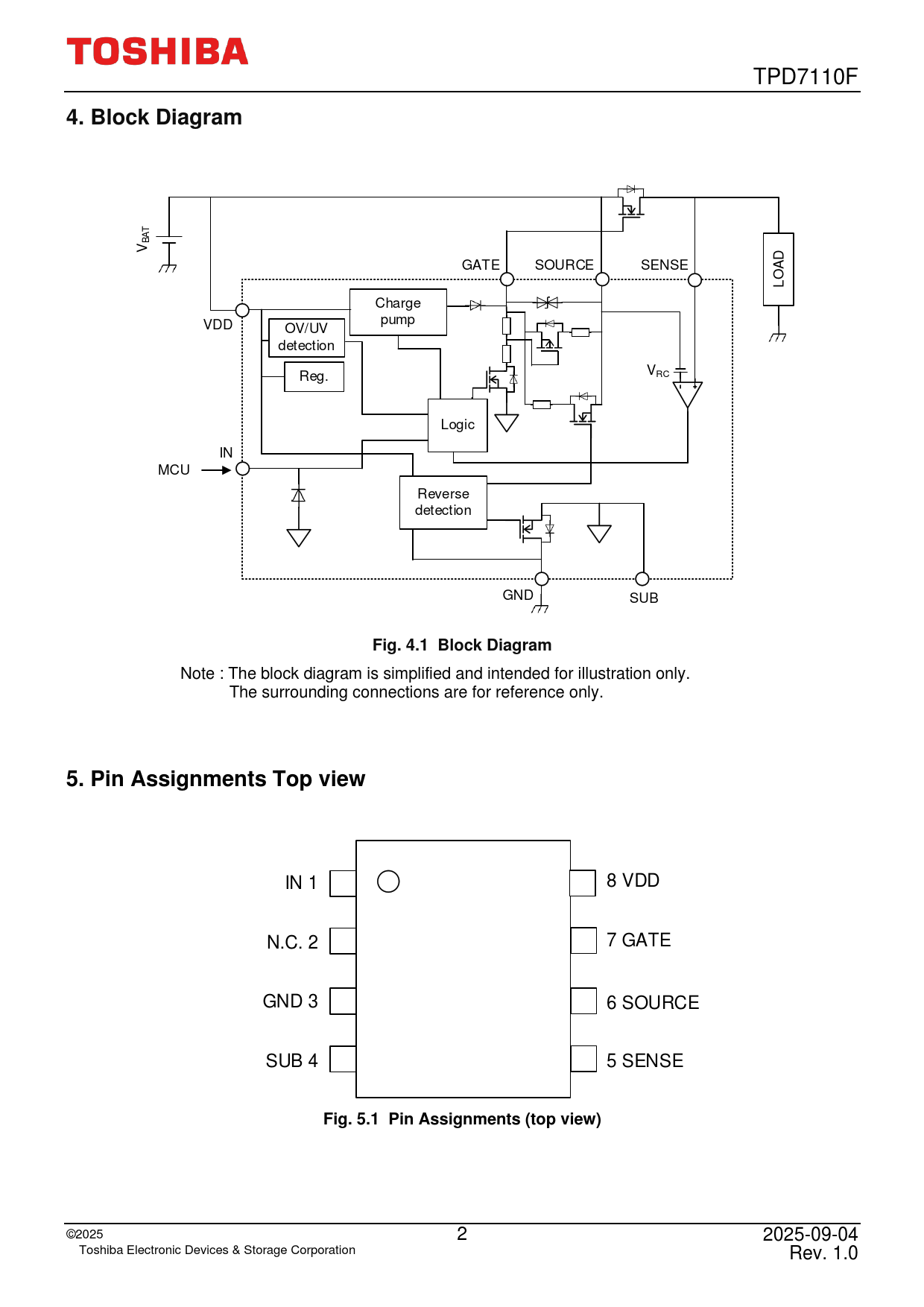

4. Block Diagram
BATV GATE SOURCE SENSE AD O L Charge pump VDD OV/UV detection VRC Reg. Logic IN MCU Reverse detection GND SUB
Fig. 4.1 Block Diagram
Note : The block diagram is simplified and intended for illustration only. The surrounding connections are for reference only.
5. Pin Assignments Top view
IN 1 8 VDD N.C. 2 7 GATE GND 3 6 SOURCE SUB 4 5 SENSE
Fig. 5.1 Pin Assignments (top view)
