Datasheet TPD7110F (Toshiba) - 5
| 制造商 | Toshiba |
| 页数 / 页 | 20 / 5 — Fig. 7.3 Undervoltage and Overvoltage Protection – Operation Image |
| 文件格式/大小 | PDF / 723 Kb |
| 文件语言 | 英语 |

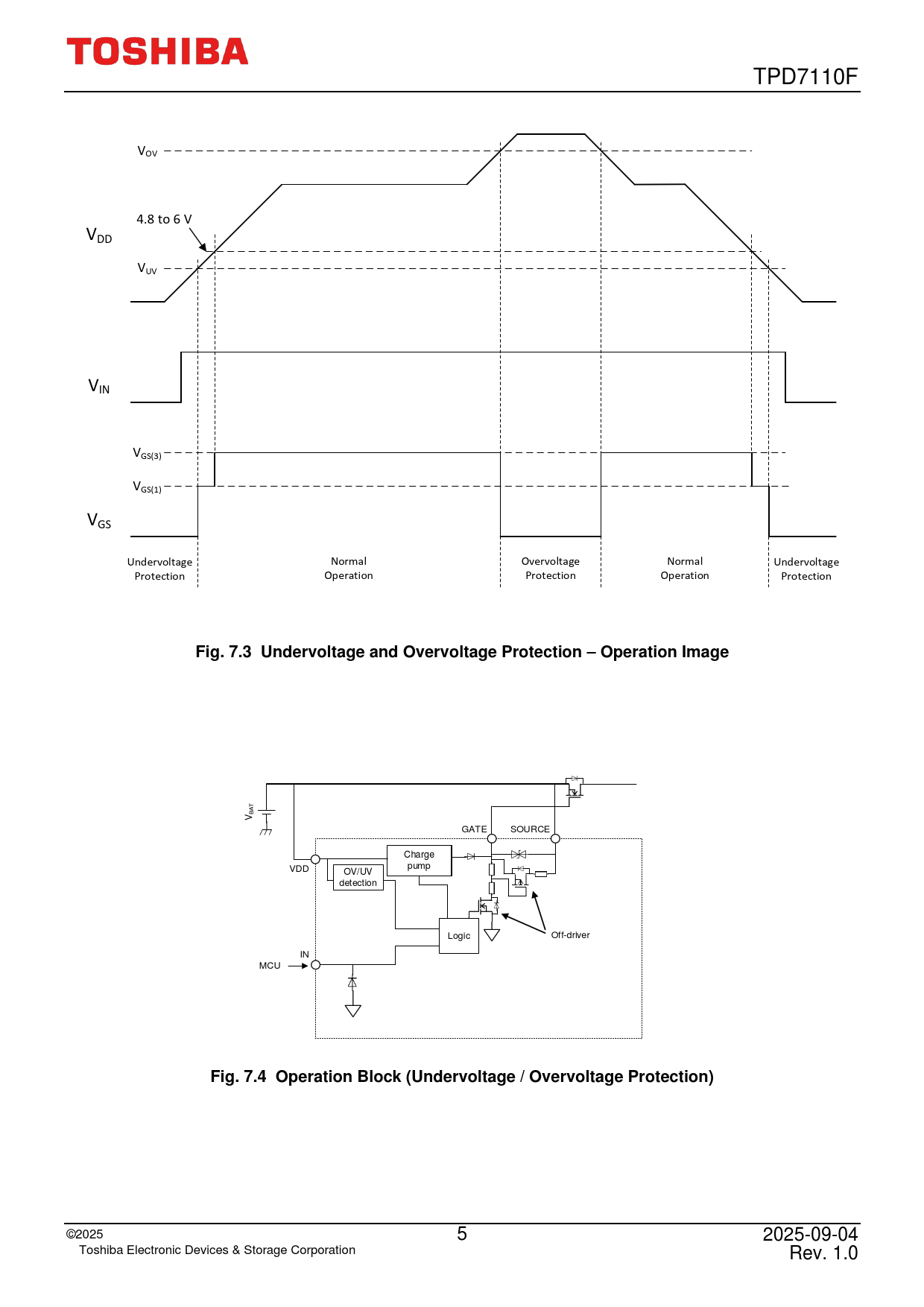

Fig. 7.3 Undervoltage and Overvoltage Protection – Operation Image
该数据表的模型线
文件文字版本
TPD7110F VOV 4.8 to 6 V VDD VUV V IN VGS(3) V GS(1) VGS Undervoltage Normal Overvoltage Normal Undervoltage Protection Operation Protection Operation Protection
Fig. 7.3 Undervoltage and Overvoltage Protection – Operation Image
BATV GATE SOURCE Charge pump VDD OV/UV detection Logic Off-driver IN MCU
Fig. 7.4 Operation Block (Undervoltage / Overvoltage Protection)
©202 5 5 2025-09-04 Toshiba Electronic Devices & Storage Corporation Rev. 1.0
Fig. 7.3 Undervoltage and Overvoltage Protection – Operation Image
BATV GATE SOURCE Charge pump VDD OV/UV detection Logic Off-driver IN MCU
Fig. 7.4 Operation Block (Undervoltage / Overvoltage Protection)
©202 5 5 2025-09-04 Toshiba Electronic Devices & Storage Corporation Rev. 1.0
