TCD2400DG

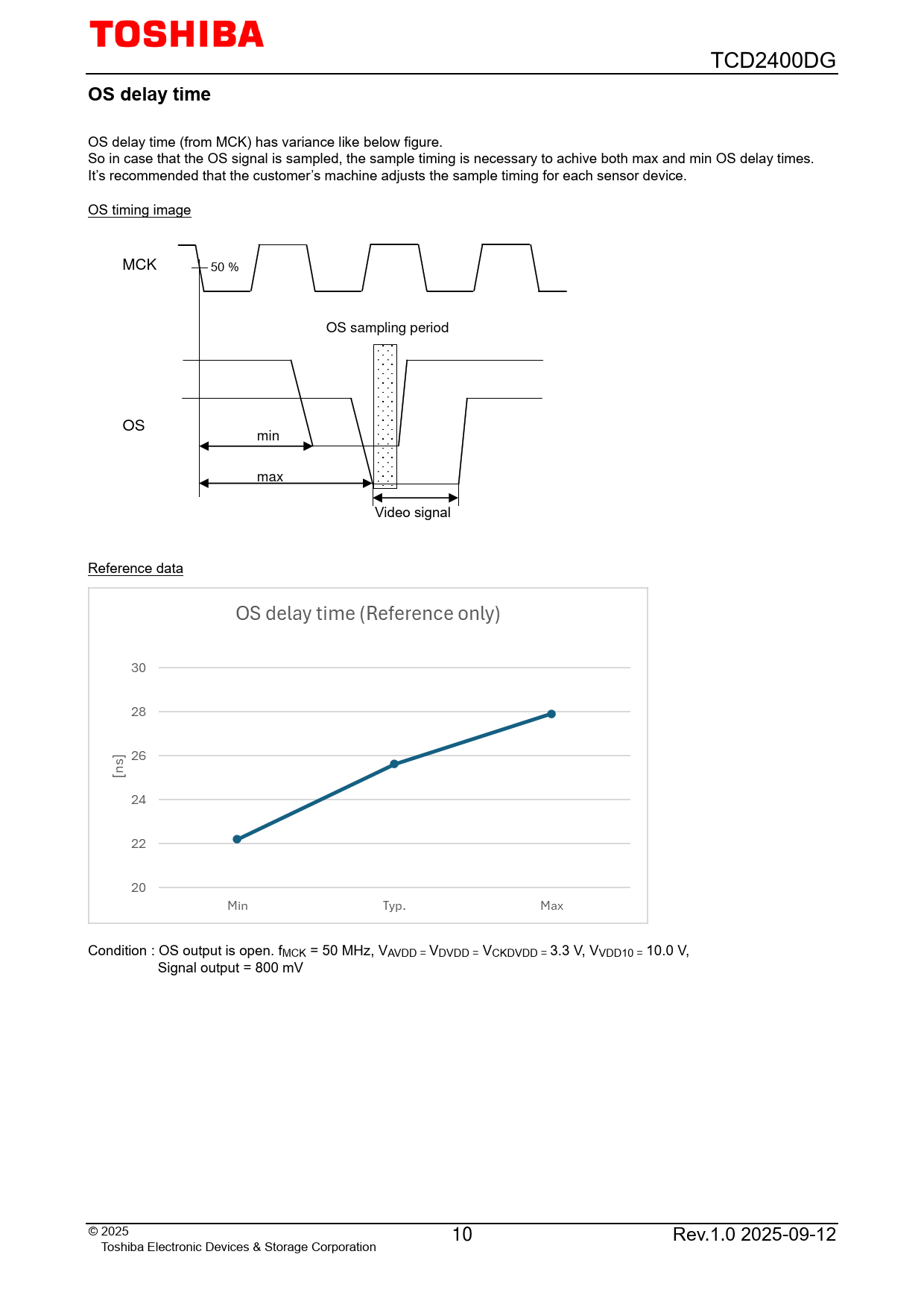

OS delay time
OS delay time (from MCK) has variance like below figure. So in case that the OS signal is sampled, the sample timing is necessary to achive both max and min OS delay times. It’s recommended that the customer’s machine adjusts the sample timing for each sensor device. OS timing image MCK 50 % OS sampling period OS min max Video signal Reference data Condition : OS output is open. fMCK = 50 MHz, VAVDD = VDVDD = VCKDVDD = 3.3 V, VVDD10 = 10.0 V, Signal output = 800 mV © 2025 10 Rev.1.0 2025-09-12 Toshiba Electronic Devices & Storage Corporation
