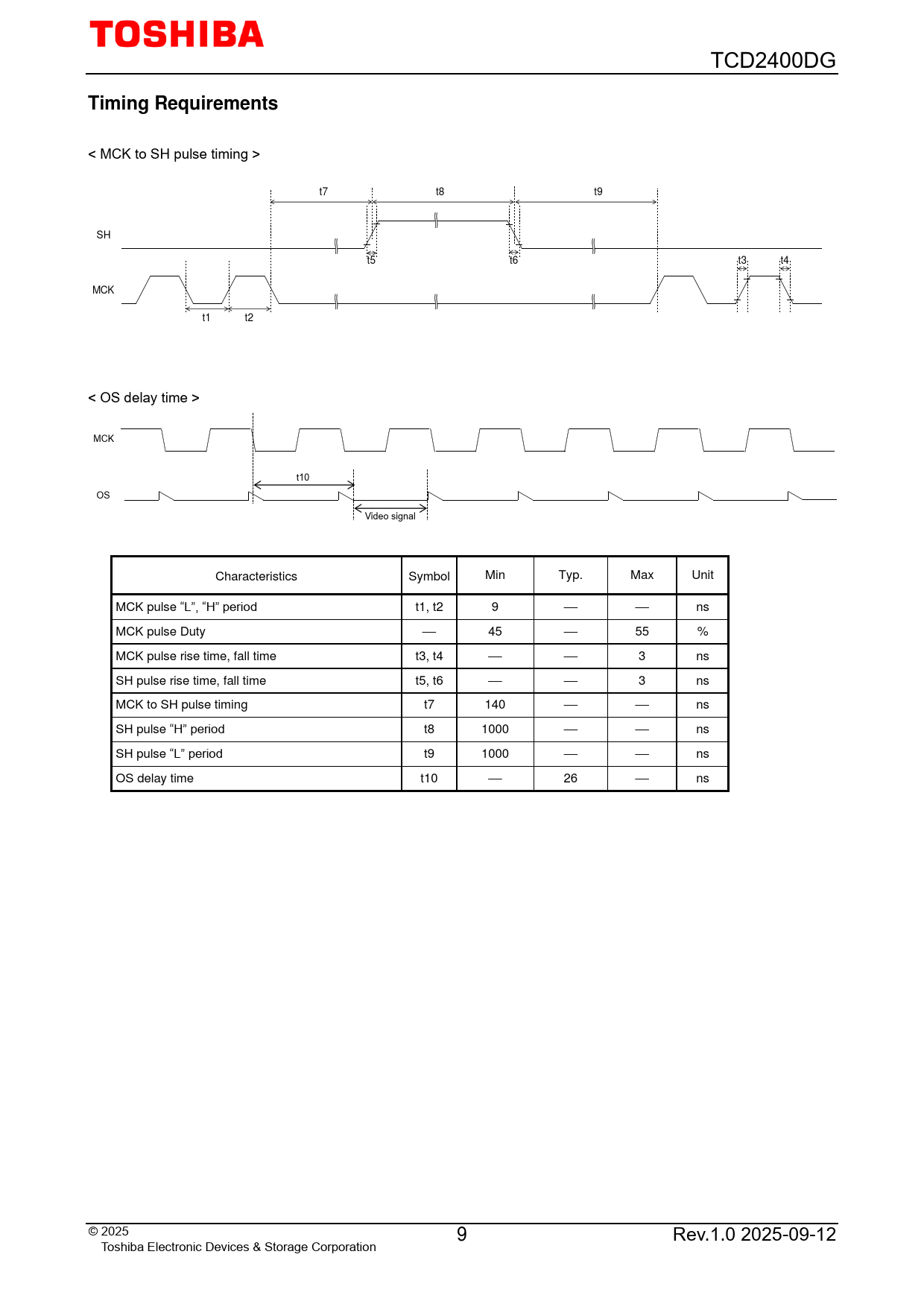

Timing Requirements
该数据表的模型线
文件文字版本
TCD2400DG
Timing Requirements
< MCK to SH pulse timing > t7 t8 t9 SH t5 t6 t3 t4 MCK t1 t2 < OS delay time > MCK t10 OS Video signal Characteristics Symbol Min Typ. Max Unit MCK pulse “L”, “H” period t1, t2 9 ⎯ ⎯ ns MCK pulse Duty ⎯ 45 ⎯ 55 % MCK pulse rise time, fall time t3, t4 ⎯ ⎯ 3 ns SH pulse rise time, fall time t5, t6 ⎯ ⎯ 3 ns MCK to SH pulse timing t7 140 ⎯ ⎯ ns SH pulse “H” period t8 1000 ⎯ ⎯ ns SH pulse “L” period t9 1000 ⎯ ⎯ ns OS delay time t10 ⎯ 26 ⎯ ns © 2025 9 Rev.1.0 2025-09-12 Toshiba Electronic Devices & Storage Corporation
