Datasheet CD4584(LX) (Lingxing Microelectronics) - 7
| 制造商 | Lingxing Microelectronics |
| 描述 | HEX Schmitt Trigger |
| 页数 / 页 | 12 / 7 — 3.3.4. AC Characteristics 2. Parameter. Symbol. VDD. Conditions. Min. … |
| 文件格式/大小 | PDF / 784 Kb |
| 文件语言 | 英语 |

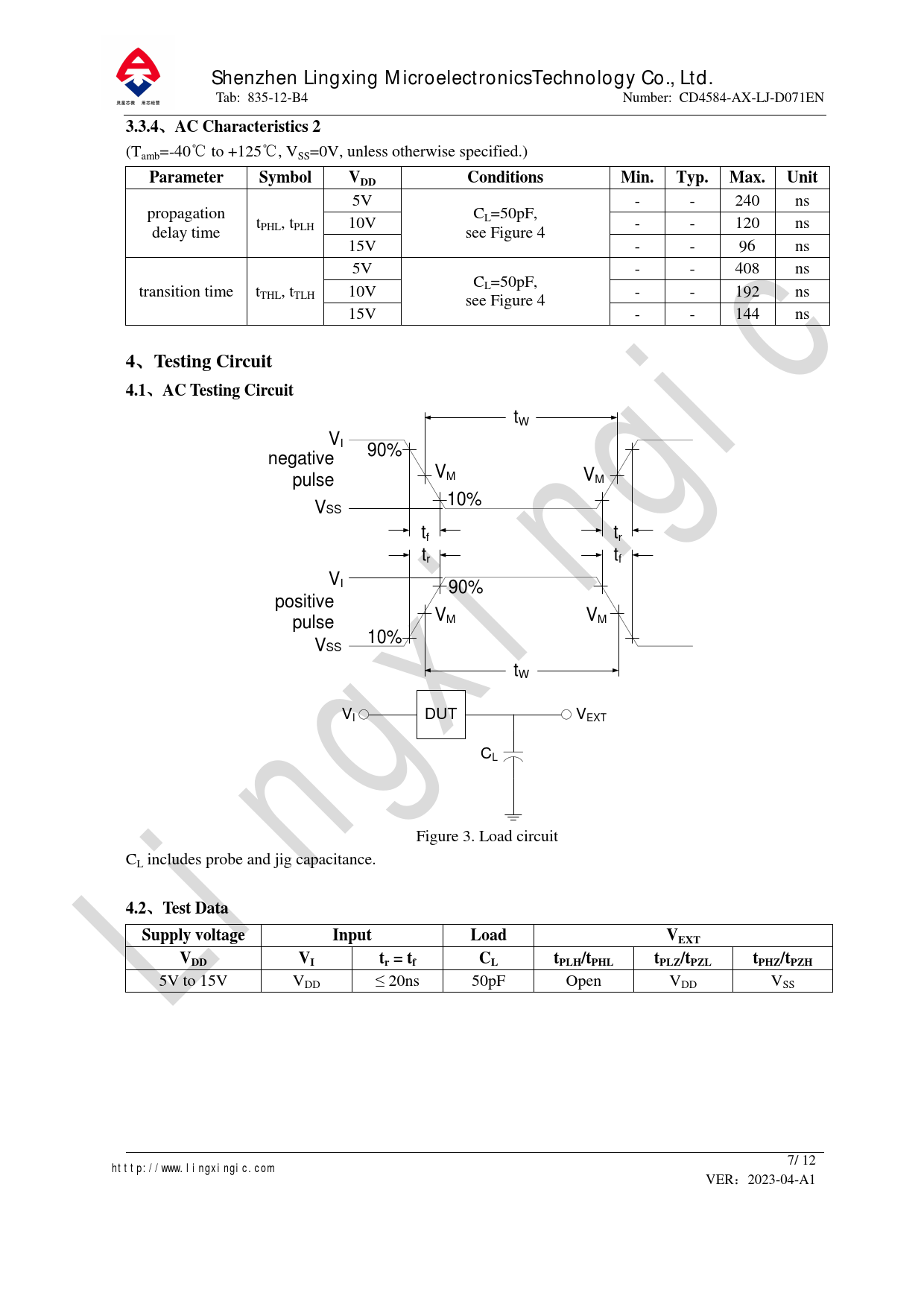

3.3.4. AC Characteristics 2. Parameter. Symbol. VDD. Conditions. Min. Typ. Max. Unit. Testing Circuit. 4.1. AC Testing Circuit. 4.2. Test Data
该数据表的模型线
文件文字版本
深圳市灵星芯微电子科技有限公司 Shenzhen Lingxing MicroelectronicsTechnology Co., Ltd. Tab: 835-12-B4 Number: CD4584-AX-LJ-D071EN
3.3.4
、
AC Characteristics 2
(Tamb=-40℃ to +125℃, VSS=0V, unless otherwise specified.)
Parameter Symbol VDD Conditions Min. Typ. Max. Unit
5V - - 240 ns propagation C t L=50pF, 10V - - 120 ns delay time PHL, tPLH see Figure 4 15V - - 96 ns 5V - - 408 ns C transition time t L=50pF, THL, tTLH 10V - - 192 ns see Figure 4 15V - - 144 ns
4
、
Testing Circuit 4.1
、
AC Testing Circuit
tW VI 90% negative VM VM pulse 10% VSS tf tr tr tf VI 90% positive VM VM pulse 10% VSS tW VI DUT VEXT CL Figure 3. Load circuit CL includes probe and jig capacitance.
4.2
、
Test Data Supply voltage Input Load VEXT
Lingxingic
VDD VI tr = tf CL tPLH/tPHL tPLZ/tPZL tPHZ/tPZH
5V to 15V VDD ≤ 20ns 50pF Open VDD VSS 7/ 12 htttp://www.lingxingic.com VER：2023-04-A1
