Datasheet PSMN9R0-30YL (Nexperia) - 6
| 制造商 | Nexperia |
| 描述 | N-channel 30 V 8 mΩ logic level MOSFET in LFPAK |
| 页数 / 页 | 14 / 6 — NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET … |
| 修订版 | 10201103 |
| 文件格式/大小 | PDF / 394 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET in LFPAK. Table 6. Characteristics. Symbol. Parameter
该数据表的模型线
文件文字版本
link to page 9
NXP Semiconductors PSMN9R0-30YL N-channel 30 V 8 mΩ logic level MOSFET in LFPAK Table 6. Characteristics
…continued Tested to JEDEC standards where applicable.
Symbol Parameter Conditions Min Typ Max Unit Source-drain diode
VSD source-drain voltage IS = 25 A; VGS = 0 V; Tj = 25 °C; - 0.88 1.2 V see Figure 17 trr reverse recovery time IS = 20 A; dIS/dt = -100 A/µs; VGS = 0 V; - 26 - ns VDS = 20 V Qr recovered charge - 16 - nC 003aac534 003aac535 80 60 ID I (A) D 4.5 10 (A) 60 3.5 40 40 VGS (V) = 3 2.8 20 20 2.6 Tj = 150 °C 2.4 25 °C 2.2 0 0 0 2 4 6 8 10 0 1 2 3 4 V V GS (V) DS (V)

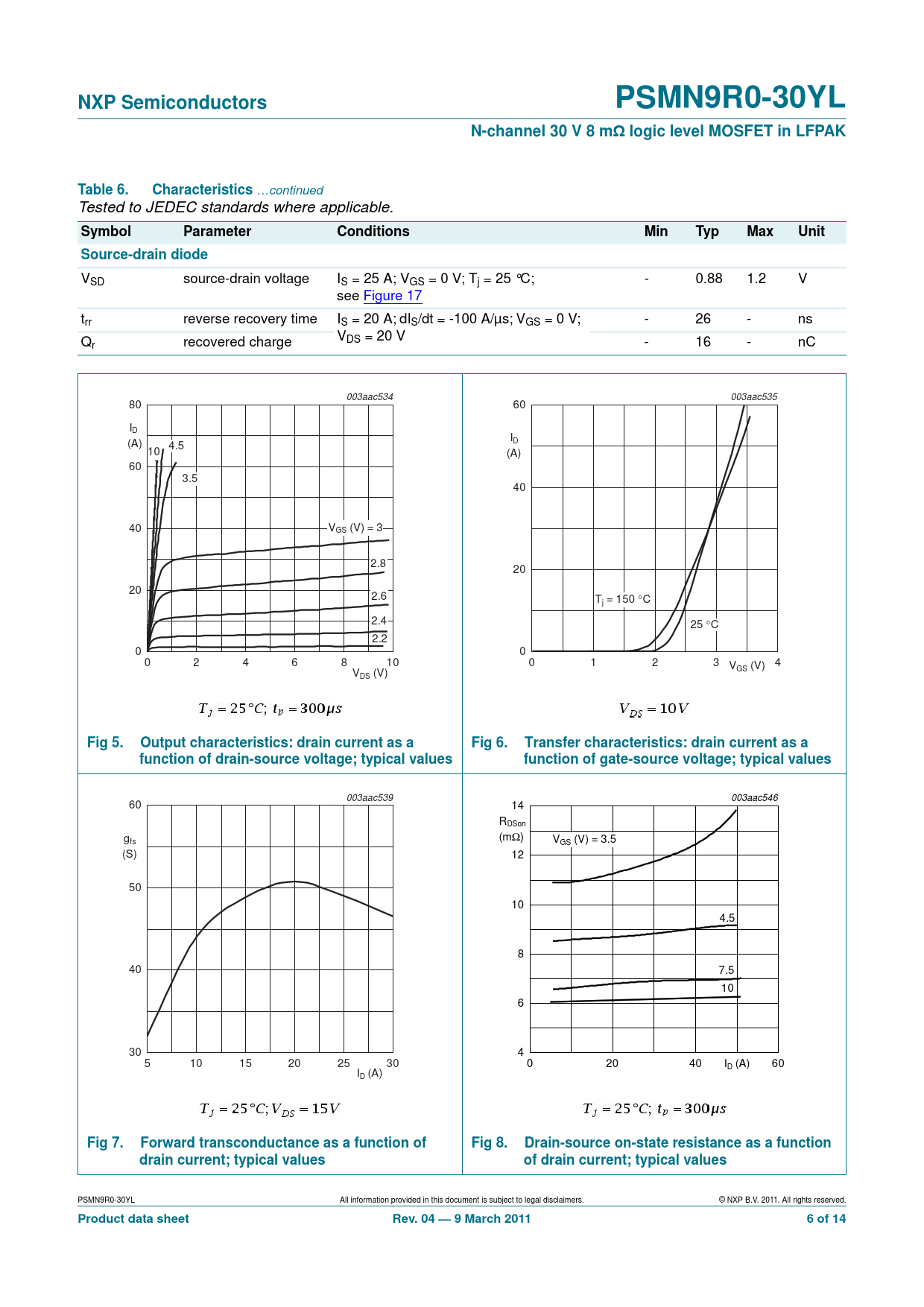

Fig 5. Output characteristics: drain current as a Fig 6. Transfer characteristics: drain current as a function of drain-source voltage; typical values function of gate-source voltage; typical values
003aac539 003aac546 60 14 RDSon g (mΩ) fs VGS (V) = 3.5 (S) 12 50 10 4.5 8 40 7.5 10 6 30 4 5 10 15 20 25 30 0 20 40 ID (A) 60 ID (A)
Fig 7. Forward transconductance as a function of Fig 8. Drain-source on-state resistance as a function drain current; typical values of drain current; typical values
PSMN9R0-30YL All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 04 — 9 March 2011 6 of 14
