Datasheet PSMN9R0-30YL (Nexperia) - 4
| 制造商 | Nexperia |
| 描述 | N-channel 30 V 8 mΩ logic level MOSFET in LFPAK |
| 页数 / 页 | 14 / 4 — NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET … |
| 修订版 | 10201103 |
| 文件格式/大小 | PDF / 394 Kb |
| 文件语言 | 英语 |
NXP Semiconductors. PSMN9R0-30YL. N-channel 30 V 8 mΩ logic level MOSFET in LFPAK. Thermal characteristics. Table 5. Symbol
该数据表的模型线
文件文字版本
link to page 4
NXP Semiconductors PSMN9R0-30YL N-channel 30 V 8 mΩ logic level MOSFET in LFPAK 5. Thermal characteristics Table 5. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-mb) thermal resistance from see Figure 4 - 1.9 2.7 K/W junction to mounting base 003aac544 10 Zth(j-mb) (K/W) δ 1 = 0.5 0.2 0.1 0.05 t P p 10-1 δ = T 0.02 single shot tp t T 10-2 t 10-6 10-5 10-4 10-3 10-2 10-1 p (s) 1

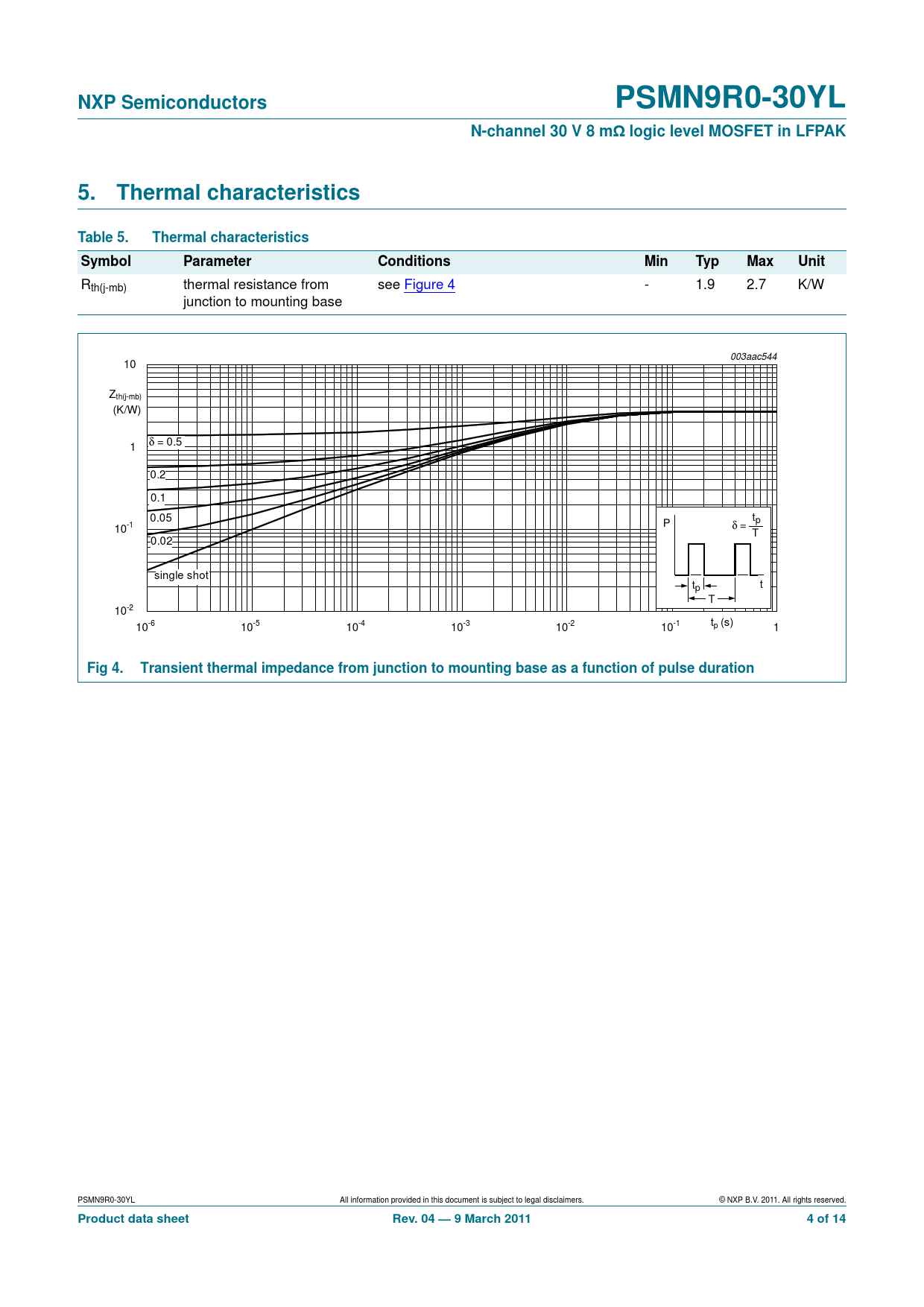

Fig 4. Transient thermal impedance from junction to mounting base as a function of pulse duration
PSMN9R0-30YL All information provided in this document is subject to legal disclaimers. © NXP B.V. 2011. All rights reserved.
Product data sheet Rev. 04 — 9 March 2011 4 of 14
