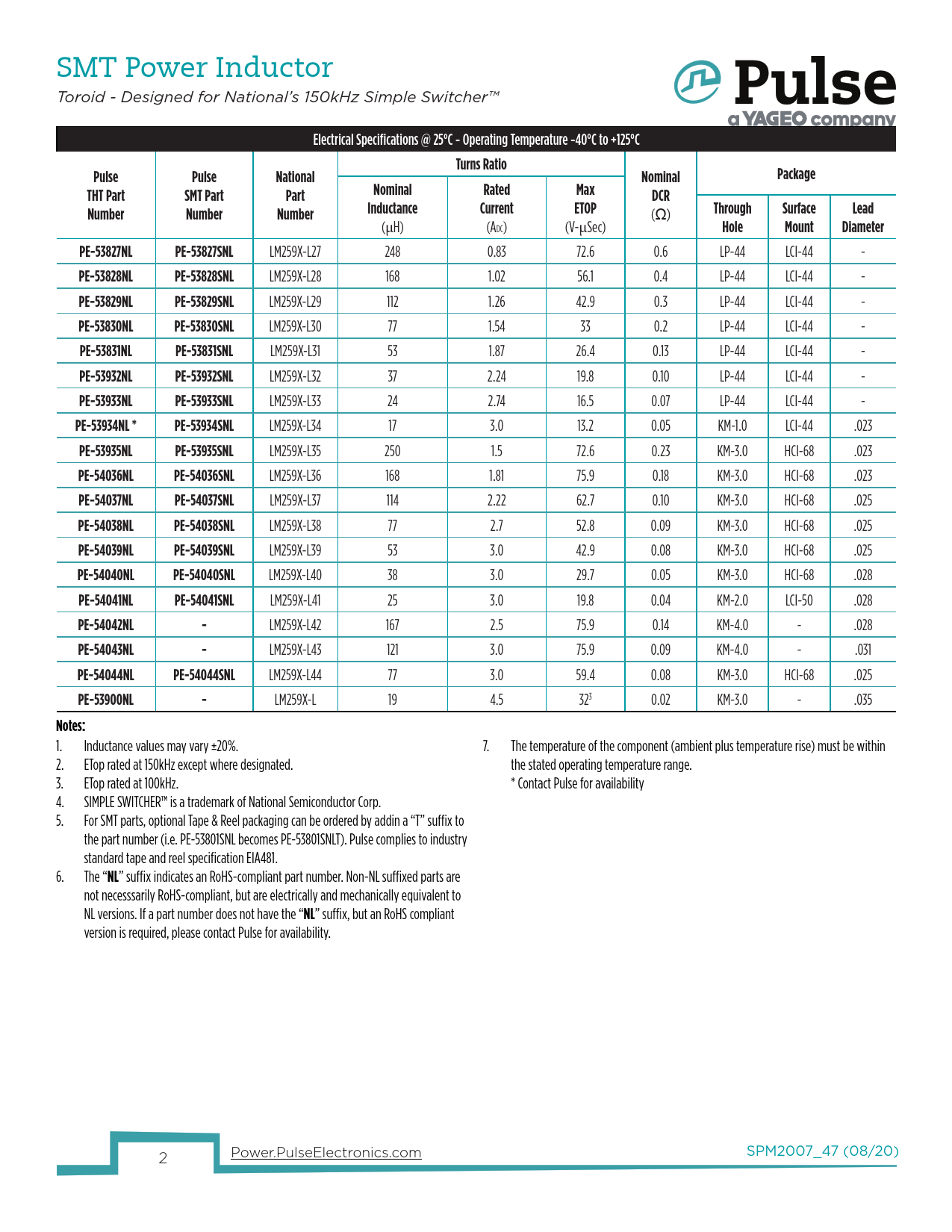

SMT Power Inductor Toroid - Designed for National’s 150kHz Simple Switcher™ Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C
Turns Ratio Pulse Pulse National Nominal Package THT Part SMT Part Part Nominal Rated Max DCR Number Number Number Inductance Current ETOP
(Ω)
Through Surface Lead
(µH) (ADC) (V-µSec)
Hole Mount Diameter PE-53827NL PE-53827SNL
LM259X-L27 248 0.83 72.6 0.6 LP-44 LCI-44 -
PE-53828NL PE-53828SNL
LM259X-L28 168 1.02 56.1 0.4 LP-44 LCI-44 -
PE-53829NL PE-53829SNL
LM259X-L29 112 1.26 42.9 0.3 LP-44 LCI-44 -
PE-53830NL PE-53830SNL
LM259X-L30 77 1.54 33 0.2 LP-44 LCI-44 -
PE-53831NL PE-53831SNL
LM259X-L31 53 1.87 26.4 0.13 LP-44 LCI-44 -
PE-53932NL PE-53932SNL
LM259X-L32 37 2.24 19.8 0.10 LP-44 LCI-44 -
PE-53933NL PE-53933SNL
LM259X-L33 24 2.74 16.5 0.07 LP-44 LCI-44 -
PE-53934NL * PE-53934SNL
LM259X-L34 17 3.0 13.2 0.05 KM-1.0 LCI-44 .023
PE-53935NL PE-53935SNL
LM259X-L35 250 1.5 72.6 0.23 KM-3.0 HCI-68 .023
PE-54036NL PE-54036SNL
LM259X-L36 168 1.81 75.9 0.18 KM-3.0 HCI-68 .023
PE-54037NL PE-54037SNL
LM259X-L37 114 2.22 62.7 0.10 KM-3.0 HCI-68 .025
PE-54038NL PE-54038SNL
LM259X-L38 77 2.7 52.8 0.09 KM-3.0 HCI-68 .025
PE-54039NL PE-54039SNL
LM259X-L39 53 3.0 42.9 0.08 KM-3.0 HCI-68 .025
PE-54040NL PE-54040SNL
LM259X-L40 38 3.0 29.7 0.05 KM-3.0 HCI-68 .028
PE-54041NL PE-54041SNL
LM259X-L41 25 3.0 19.8 0.04 KM-2.0 LCI-50 .028
PE-54042NL -
LM259X-L42 167 2.5 75.9 0.14 KM-4.0 - .028
PE-54043NL -
LM259X-L43 121 3.0 75.9 0.09 KM-4.0 - .031
PE-54044NL PE-54044SNL
LM259X-L44 77 3.0 59.4 0.08 KM-3.0 HCI-68 .025
PE-53900NL -
LM259X-L 19 4.5 323 0.02 KM-3.0 - .035
Notes:
1. Inductance values may vary ±20%. 7. The temperature of the component (ambient plus temperature rise) must be within 2. ETop rated at 150kHz except where designated. the stated operating temperature range. 3. ETop rated at 100kHz. * Contact Pulse for availability 4. SIMPLE SWITCHER™ is a trademark of National Semiconductor Corp. 5. For SMT parts, optional Tape & Reel packaging can be ordered by addin a “T” suffix to the part number (i.e. PE-53801SNL becomes PE-53801SNLT). Pulse complies to industry standard tape and reel specification EIA481. 6. The “
NL
” suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not necesssarily RoHS-compliant, but are electrically and mechanically equivalent to NL versions. If a part number does not have the “
NL
” suffix, but an RoHS compliant version is required, please contact Pulse for availability. Power.PulseElectronics.com SPM2007_47 (08/20) 2
