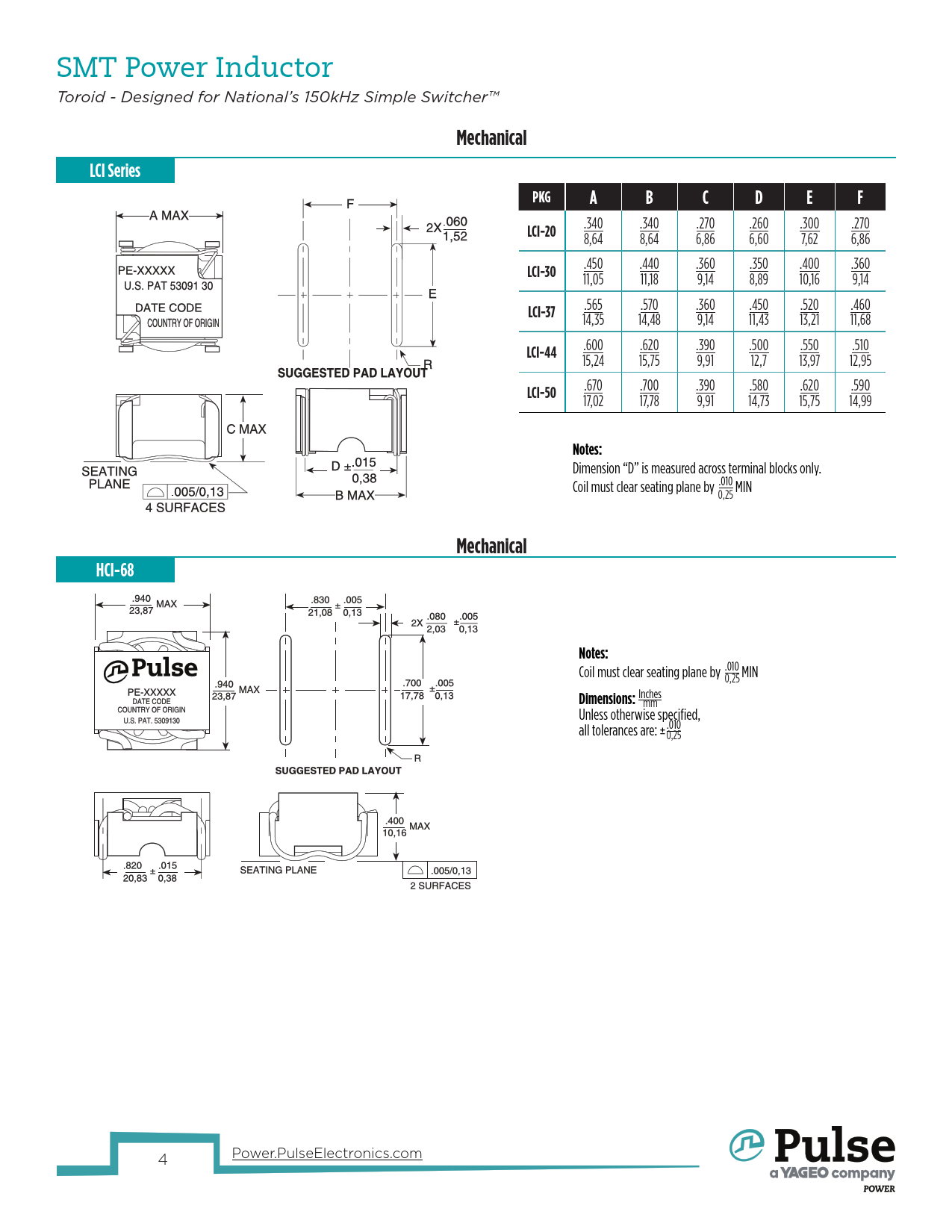

SMT Power Inductor Toroid - Designed for National’s 150kHz Simple Switcher™
Mechanical LCI Series PKG A B C D E F LCI-20
.340 .340 .270 .260 .300 .270 8,64 8,64 6,86 6,60 7,62 6,86
LCI-30
.450 .440 .360 .350 .400 .360 11,05 11,18 9,14 8,89 10,16 9,14
LCI-37
.565 .570 .360 .450 .520 .460 14,35 14,48 9,14 1 ,43 13,21 11,68
LCI-44
.600 .620 .390 .500 .550 .510 15,24 15,75 9,91 12,7 13,97 12,95
LCI-50
.670 .700 .390 .580 .620 .590 17,02 17,78 9,91 14,73 15,75 14,99
Notes:
Dimension “D” is measured across terminal blocks only. Coil must clear seating plane by ..010 MIN 0,25
Mechanical HCI-68 Notes:
Coil must clear seating plane by ..010 MIN 0,25
Dimensions:
.Inches mm Unless otherwise specified, all tolerances are: ±..010 0,25 4 Power.PulseElectronics.com
