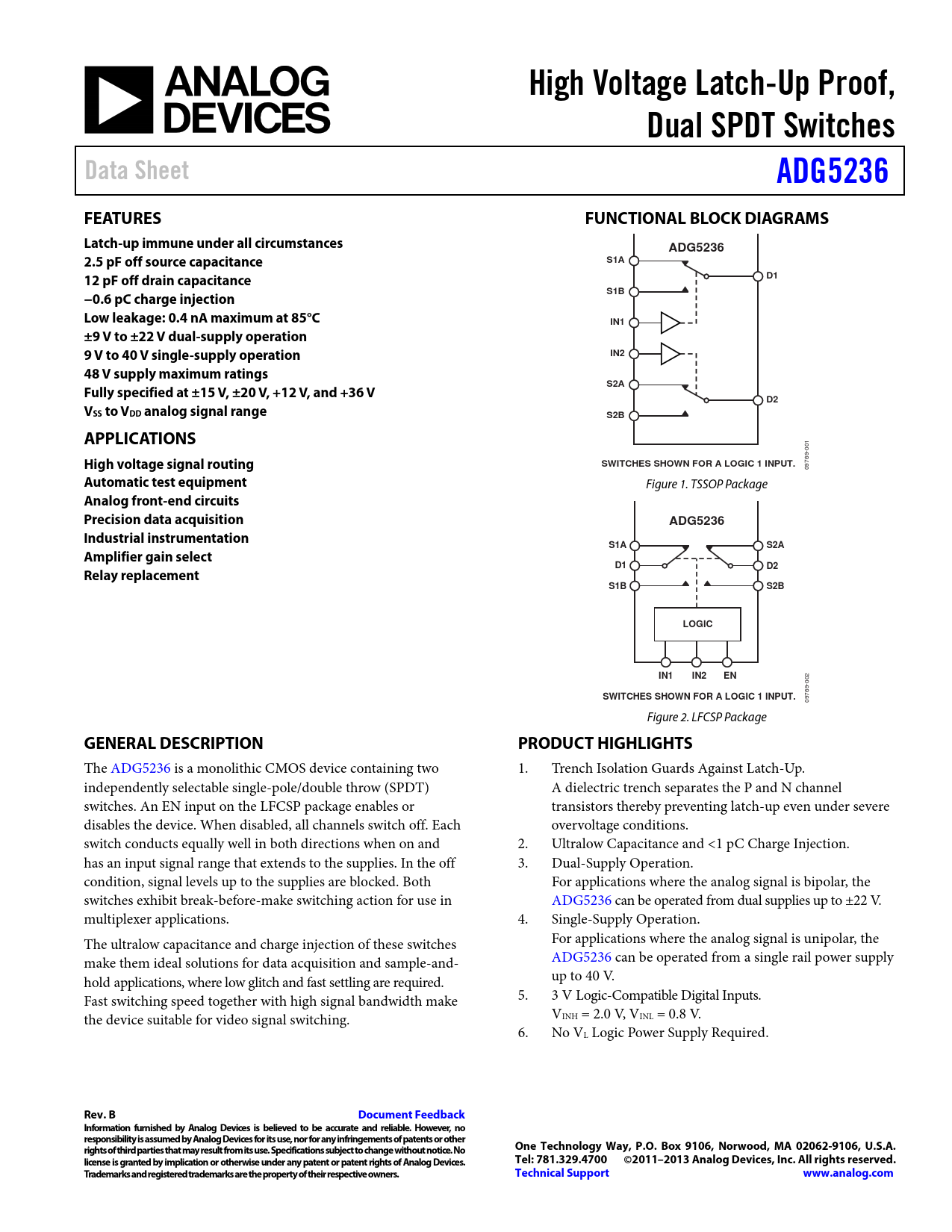

High Voltage Latch-Up Proof, Dual SPDT Switches Data Sheet ADG5236 FEATURES FUNCTIONAL BLOCK DIAGRAMS Latch-up immune under all circumstances ADG5236 2.5 pF off source capacitance S1A 12 pF off drain capacitance D1 −0.6 pC charge injection S1B Low leakage: 0.4 nA maximum at 85°C IN1 ±9 V to ±22 V dual-supply operation 9 V to 40 V single-supply operation IN2 48 V supply maximum ratings S2A Fully specified at ±15 V, ±20 V, +12 V, and +36 V D2 VSS to VDD analog signal range S2B APPLICATIONS
001
High voltage signal routing SWITCHES SHOWN FOR A LOGIC 1 INPUT.
09769-
Automatic test equipment
Figure 1. TSSOP Package
Analog front-end circuits Precision data acquisition ADG5236 Industrial instrumentation S1A S2A Amplifier gain select D1 D2 Relay replacement S1B S2B LOGIC IN1 IN2 EN
002
SWITCHES SHOWN FOR A LOGIC 1 INPUT.
09769- Figure 2. LFCSP Package
GENERAL DESCRIPTION PRODUCT HIGHLIGHTS
The ADG5236 is a monolithic CMOS device containing two 1. Trench Isolation Guards Against Latch-Up. independently selectable single-pole/double throw (SPDT) A dielectric trench separates the P and N channel switches. An EN input on the LFCSP package enables or transistors thereby preventing latch-up even under severe disables the device. When disabled, all channels switch off. Each overvoltage conditions. switch conducts equally wel in both directions when on and 2. Ultralow Capacitance and <1 pC Charge Injection. has an input signal range that extends to the supplies. In the off 3. Dual-Supply Operation. condition, signal levels up to the supplies are blocked. Both For applications where the analog signal is bipolar, the switches exhibit break-before-make switching action for use in ADG5236 can be operated from dual supplies up to ±22 V. multiplexer applications. 4. Single-Supply Operation. The ultralow capacitance and charge injection of these switches For applications where the analog signal is unipolar, the make them ideal solutions for data acquisition and sample-and- ADG5236 can be operated from a single rail power supply hold applications, where low glitch and fast settling are required. up to 40 V. Fast switching speed together with high signal bandwidth make 5. 3 V Logic-Compatible Digital Inputs. the device suitable for video signal switching. VINH = 2.0 V, VINL = 0.8 V. 6. No VL Logic Power Supply Required.
